JEE Mains · Physics · STD 12 - 4. Moving charges and magnetism
Two ions of masses \(4 \,{amu}\) and \(16\, amu\) have charges \(+2 {e}\) and \(+3 {e}\) respectively. These ions pass through the region of constant perpendicular magnetic field. The kinetic energy of both ions is same. Then :
- A lighter ion will be deflected less than heavier ion
- B lighter ion will be deflected more than heavier ion
- C both ions will be deflected equally
- D no ion will be deflected
Answer & Solution
Correct Answer
(B) lighter ion will be deflected more than heavier ion
Step-by-step Solution
Detailed explanation
\({r}=\frac{{P}}{{qB}}=\frac{\sqrt{2 {mk}}}{{qB}}\) Given they have same kinetic energy \({r} \propto \frac{\sqrt{{m}}}{{q}}\) \(\frac{{r}_{1}}{{T}_{2}}=\frac{\sqrt{4}}{2} \times \frac{3}{\sqrt{16}}=\frac{3}{4}\) \({I}_{2}=\frac{4 {r}_{1}}{3}\left[{r}_{2}\right.\) is for hearier…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A sphere of capacitance \(100\) pF is charged to a potential of \(100\) V. Another identical uncharged metal sphere is brought in contact with the charged sphere, then the change in the total energy stored on these spheres, when they touch is \(\alpha \times 10^{-7}\) J. The value of \(\alpha\) is __________. (combined capacitance of spheres is \(200\) pF)JEE Mains 2026 Hard
- The electric field at point p due to an electric dipole is E . The electric field at point R on equitorial line will be \(\frac{E}{x}\). The value of \(x\) is _______.
JEE Mains 2024 Medium - A composite parallel plate capacitor is made up of two different dielectric materials with different thickness \(\left(t_{1}\right.\) and \(\left.t_{2}\right)\) as shown in figure. The two different dielectric material are separated by a conducting foil \(F\). The voltage of the conducting foil is \(.....V\)
JEE Mains 2022 Hard - The mean free path and the average speed of oxygen molecules at 300 K and 1 atm are \(3 \times 10^{-7} \mathrm{~m}\) and \(600 \mathrm{~m} / \mathrm{s}\) respectively. Find the frequency of its collisions.JEE Mains 2025 Easy
- Dimension of \(\frac{1}{\mu_0 \varepsilon_0}\) should be equal toJEE Mains 2023 Medium

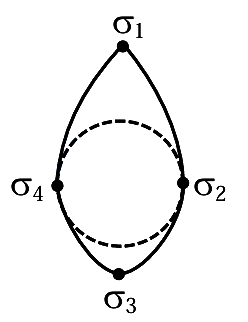

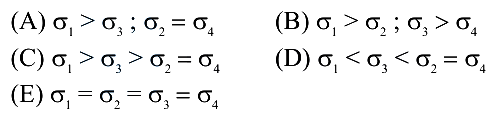

- Electric charge is transferred to an irregular metallic disk as shown in figure. If \(\sigma_1, \sigma_2, \sigma_3\) and \(\sigma_4\) are charge densities at given points then, choose the correct answer from the options given below:
JEE Mains 2025 Medium
More PYQs from JEE Mains
- The heat absorbed by a system in going through the given cyclic process is _______.
JEE Mains 2024 Hard - A big drop is formed by coalescing \(1000\) small droplets of water. The surface energy will become _______.JEE Mains 2024 Hard
- The point of intersection \(C\) of the plane \(8 x+y+2 z=0\) and the line joining the points \(A (-3,-6,1)\) and \(B (2,4,-3)\) divides the line segment \(AB\) internally in the ratio \(k : 1\). If \(a , b , c\) \((| a |,| b |,| c |\) are coprime) are the direction ratios of the perpendicular from the point \(C\) on the line \(\frac{1- x }{1}=\frac{ y +4}{2}=\frac{z+2}{3}\), then \(|a + b + c|\) is equal to \(.............\).JEE Mains 2023 Hard
- When a light of a given wavelength falls on a metallic surface the stopping potential for photoelectrons is 3.2 V . If a second light having wavelength twice of first light is used, the stopping potential drops to 0.7 V . The wavelength of first light is _________ m .
\(\left( h =6.63 \times 10^{-34} J . s , e =1.6 \times 10^{-19} C , c =3 \times 10^8 m / s \right)\)JEE Mains 2026 Medium - Distance between an object and three times magnified real image is 40 cm . The focal length of the mirror used is _________ cm .JEE Mains 2026 Medium
- Let \(C_1\) and \(C_2\) be the centres of the circles \(x^2 + y^2 -2x -2y -2 = 0\) and \(x^2 + y^2 - 6x-6y + 14 = 0\) respectively. If \(P\) and \(Q\) are the points of intersection of these circles, then the area (in sq. units) of the quadrilateral \(PC_1QC_2\) is ............. \(\mathrm{sq. \, units}\)JEE Mains 2019 Hard
