JEE Mains · Physics · STD 12 - 5. Magnetism and matter
A straight magnetic strip has a magnetic moment of \(44 \mathrm{Am}^2\). If the strip is bent in a semicircular shape, its magnetic moment will be _______\(\mathrm{Am}^2\) \(\left(\right.\) Given \(\left.\pi=\frac{22}{7}\right)\)
- A \(28\)
- B \(27\)
- C \(26\)
- D \(25\)
Answer & Solution
Correct Answer
(A) \(28\)
Step-by-step Solution
Detailed explanation
Magnetic moment of straight wire \(=\mathrm{mx} \ell=44\) (Image) Magnetic moment of arc \(=\mathrm{m} \times 2 \mathrm{r}\) \(=\mathrm{m} \times \frac{2 \ell}{\pi}\) \(=\frac{44 \times 2}{\pi}=\frac{88}{\pi}=28\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A particle is moving in a circular path of radius \(a,\) with a constant velocity \(v\) as shown in the figure.The centre of circle is marked by \('C'\). The angular momentum from the origin \(O\) can be written as
JEE Mains 2014 Hard - Speed of a transverse wave on a straight wire (mass \(6.0\; \mathrm{g}\), length \(60\; \mathrm{cm}\) and area of cross-section \(1.0\; \mathrm{mm}^{2}\) ) is \(90\; \mathrm{ms}^{-1} .\) If the Young's modulus of wire is \(16 \times 10^{11}\; \mathrm{Nm}^{-2},\) the extension of wire over its natural length isJEE Mains 2020 Easy
- If speed \(V,\) area \(A\) and force \(F\) are chosen as fundamental units, then the dimension of Young's modulus will be :JEE Mains 2020 Hard
- The position of the centre of mass of a uniform semi-circular wire of radius \('R'\) placed in \(x-y\) plane with its centre at the origin and the line joining its ends as \(x\)-axis is given by \(\left(0, \frac{x R}{\pi}\right)\). Then, the value of \(|x|\) is ...... .JEE Mains 2021 Medium
- A body is in simple harmonic motion with time period half second \((T\, = 0.5\, s)\) and amplitude one \(cm\, (A\,= 1\, cm)\). Find the average velocity in the interval in which it moves form equilibrium position to half of its amplitude .... \(cm/s\)JEE Mains 2014 Medium

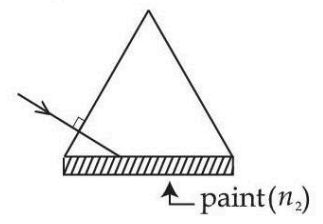

- One side of an equilateral prism is painted by a transparent material of refractive index \(n_2\). The refractive index of prism is \(1.6\). The minimum value of \(n_2\) required for total internal reflection from painted face is _______.
