JEE Mains · Physics · STD 12 - 1. Electric charges and fields
Two equal positive point charges are separated by a distance \(2 a\). The distance of a point from the centre of the line joining two charges on the equatorial line (perpendicular bisector) at which force experienced by a test charge \(q_0\) becomes maximum is \(\frac{a}{\sqrt{x}}\). The value of \(x\) is \(................\)
- A \(4\)
- B \(2\)
- C \(8\)
- D \(10\)
Answer & Solution
Correct Answer
(B) \(2\)
Step-by-step Solution
Detailed explanation
\(F=\frac{2 K q q_0 x}{\left(x^2+a^2\right)^{3 / 2}}\) For \(F\) to be maximum \(\frac{ d F}{ d x}=0\) \(x=\frac{a}{\sqrt{2}}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A particle is moving with speed \(v= b\sqrt x\) along positive \(x-\) axis. Calculate the speed of the particle at time \(t = \tau\) (assume that the particle is at origin at \(t = 0\) ).JEE Mains 2019 Hard
- Consider two identical springs each of spring constant \(k\) and negligible mass compared to the mass \(M\) as shown. Fig. \(1\) shows one of them and Fig. \(2\) shows their series combination. The ratios of time period of oscillation of the two \(SHM\) is \(\frac{ T _{ b }}{ T _{ a }}=\sqrt{ x },\) where value of \(x\) is (Round off to the Nearest Integer)
JEE Mains 2021 Medium - Given below are two statements : one is labelled as Assertion (A) and the other is labelled as Reason (R).
Assertion (A) : Choke coil is simply a coil having a large inductance but a small resistance. Choke coils are used with fluorescent mercury-tube fittings. If household electric power is directly connected to a mercury tube, the tube will be damaged.
Reason (R): By using the choke coil, the voltage across the tube is reduced by a factor \(\left(R / \sqrt{R^2+\omega^2 L^2}\right)\), where \(\omega\) is frequency of the supply across resistor \(R\) and inductor L . If the choke coil were not used, the voltage across the resistor would be the same as the applied voltage.

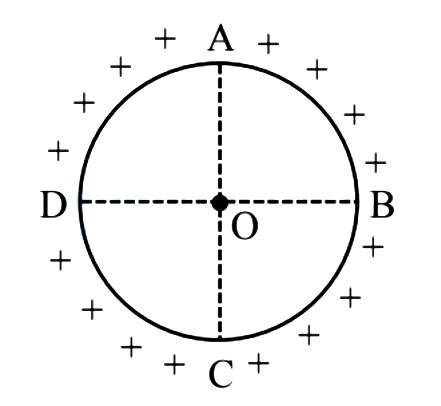

In the light of the above statements, choose the most appropriate answer from the options given below :JEE Mains 2025 Medium - A metallic ring is uniformly charged as shown in figure. AC and BD are two mutually perpendicular diameters. Electric field due to \(\operatorname{arc} \mathrm{AB}\) to ' O ' is ' E ' is magnitude. What would be the magnitude of electric field at ' O ' due to arc ABC ?
