There is a rectangular plate of mass \(M \mathrm{~kg}\) of dimensions \((a \times b)\). The plate is held in horizontal position by striking \(n\) small balls each of mass \(m\) per unit area per unit time. These are striking in the shaded half region of the plate. The balls are colliding elastically with velocity \(v\). What is \(v\) ? It is given \(n=100, M=3 \mathrm{~kg}, m=0.01 \mathrm{~kg}\); \(b=2 \mathrm{~m} ; a=1 \mathrm{~m} ; g=10 \mathrm{~m} / \mathrm{s}^2\).

A conducting square loop of side \(L\), mass \(M\) and resistance \(R\) is moving in the \(X Y\) plane with its edges parallel to the \(X\) and \(Y\) axes. The region \(y \geq 0\) has a uniform magnetic field, \(\vec{B}=B_0 k\). The magnetic field is zero everywhere else. At time \(t=0\), the loop starts to enter the magnetic field with an initial velocity \(v_0 \hat{\jmath} \mathrm{~m} / \mathrm{s}\), as shown in the figure. Considering the quantity \(K=\frac{B_0^2 L^2}{R M}\) in appropriate units, ignoring self-inductance of the loop and gravity, which of the following statements is/are correct:

Consider a disc rotating in the horizontal plane with a constant angular speed \(\omega\) about its centre \(\mathrm{O}\). The disc has a shaded region on one side of the diameter and an unshaded region on the other side as shown in the figure. When the disc is in the orientation as shown, two pebbles \(P\) and \(Q\) are simultaneously projected at an angle towards \(R\). The velocity of projection is in the \(y\) - \(z\) plane and is same for both pebbles with respect to the disc. Assume that (i) they land back on the disc before the disc has completed \(1 / 8\) rotation, (ii) their range is less than half the disc radius, and (iii) \(\omega\) remains constant throughout. Then

Paragraph:
Scientists are working hard to develop nuclear fusion reactor. Nuclei of heavy hydrogen, \({ }_1^2 \mathrm{H}\) known as deuteron and denoted by \(D\) can be thought of as a candidate for fusion reactor. The \(D\) - \(D\) reaction is \({ }_1^2 \mathrm{H}+{ }_1^2 \mathrm{H} \rightarrow{ }_2^3 \mathrm{He}+n+\) energy. In the core of fusion reactor. A gas of heavy hydrogen is fully ionized into deuteron nuclei and electrons. This collection of \({ }_1^4 \mathrm{H}\) nuclei and electrons is known as plasma. The nuclei move randomly in the reactor core and occasionally come close enough for nuclear fusion to take place. Usually, the temperatures in the reactor core are too high and no material wall can be used to confine the plasma. Special techniques are used which confine the plasma for a time \(t_0\) before the particles fly away from the core. If n is the density (number/volume) of deutrons, the product t \(_0\) is called Lawson number. In one of the criteria, \(a\) reactor is termed successful if Lawson number is greater than \(5 \times 10^{14} \mathrm{scm}^{-3}\).
It may be helpful to use the following : Boltzmann constant \(k=8.6 \times 10^{-5} \mathrm{eV} / \mathrm{K}\); \(\frac{e^2}{4 \pi \varepsilon_0}=1.44 \times 10^{-9} \mathrm{eVm}\)
Question:
Assume that two deuteron nuclei in the core of fusion reactor at temperature \(T\) are moving towards each other, each with kinetic energy \(1.5 \mathrm{kT}\), when the separation between them is large enough to neglect Coulomb potential energy. Also neglect any interaction from other particles in the core. The minimum temperature \(T\) required for them to reach a separation of \(4 \times 10^{-15} \mathrm{~m}\) is in the range

For the circuit shown in the figure

In a Young's double slit experiment, the separation between the two slits is \(d\) and the wavelength of the light is \(\lambda\). The intensity of light falling on slit 1 is four times the intensity of light falling on slit 2 . Choose the correct choice(s),

In a circuit, a metal filament lamp is connected in series with a capacitor of capacitance \(\mathrm{C} \mu F\) across a \(200 \mathrm{~V}, 50 \mathrm{~Hz}\) supply. The power consumed by the lamp is \(500 \mathrm{~W}\) while the voltage drop across it is \(100 \mathrm{~V}\). Assume that there is no inductive load in the circuit. Take \(r m s\) values of the voltages. The magnitude of the phaseangle (in degrees) between the current and the supply voltage is \(\varphi\). Assume, \(\pi \sqrt{3} \approx 5\).
The value of $C$ is ____.

A bi-convex lens is formed with two thin plano-convex lenses as shown in the figure. Refractive index \(n\) of the first lens is \(1.5\) and that of the second lens is \(1.2\). Both the curved surface are of the same radius of curvature \(R=14\) \(\mathrm{cm}\). For this bi-convex lens, for an object distance of 40 \(\mathrm{cm}\), the image distance will be

A source, approaching with speed $u$ towards the open end of a stationary pipe of length $L$, is emitting a sound of frequency $f_s$. The farther end of the pipe is closed. The speed of sound in air is $v$ and $f_0$ is the fundamental frequency of the pipe. For which of the following combination(s) of $u$ and $f_s$, will the sound reaching the pipe lead to a resonance?

Paragraph :
\(P_{14-16}\) : Paragraph for Questions Nos. 14 to 16 A fixed thermally conducting cylinder has a radius \(R\) and height \(L_0\). The cylinder is open at its bottom and has a small hole at its top. A piston of mass \(M\) is held at a distance \(L\) from the top surface as shown in the figure. The atmospheric pressure is \(p_0\).

Question :
The piston is taken completely out of the cylinder. The hole at the top is sealed. A water tank is brought below the cylinder and put in a position so that the water surface in the tank is at the same level as the top of the cylinder as shown in the figure. The density of the water is \(\rho\). In equilibrium, the height \(H\) of the water column in the cylinder satisfies

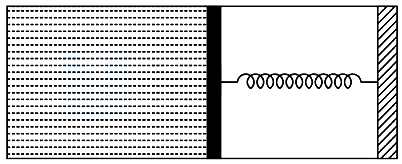

An ideal monoatomic gas is confined in a horizontal cylinder by a spring loaded piston (as shown in the figure).Initially the gas is at temperature ${\mathrm{T}}_1$ , pressure ${\mathrm{P}}_1$ and volume ${\mathrm{V}}_1$ and the spring is in its relaxed state. The gas is then heated very slowly to temperature ${\mathrm{T}}_2$ , pressure ${\mathrm{P}}_2$ and volume ${\mathrm{V}}_2$ . During this process the piston moves out by a distance $\mathrm{x}$ . Ignoring the friction between the piston the cylinder, the correct statement(s) is (are)

For a > b > c > 0, the distance between (1, 1) and the point of intersection of the lines ax + by + c = 0 and bx + ay + c = 0 is less than $2\sqrt{2}$.Then

Let $\overrightarrow{a}=2\widehat{i}+\widehat{j}-\widehat{k}$ and $\overrightarrow{b}=\widehat{i}+2\widehat{j}+\widehat{k}$ be two vectors. Consider a vector $\overrightarrow{c}=\alpha \overrightarrow{a}+\beta \overrightarrow{b}, \alpha , \beta \in R.$ If the projection of $\overrightarrow{c}$ on the vector $\left(\overrightarrow{a}+\overrightarrow{b}\right)$ is $3\sqrt{2},$ then the minimum value of $\left(\overrightarrow{c}-\left(\overrightarrow{a}\times \overrightarrow{b}\right)\right).\overrightarrow{c}$ equals
