JEE Advanced · Physics · 28. Nuclear Physics
Paragraph:
Scientists are working hard to develop nuclear fusion reactor. Nuclei of heavy hydrogen, \({ }_1^2 \mathrm{H}\) known as deuteron and denoted by \(D\) can be thought of as a candidate for fusion reactor. The \(D\) - \(D\) reaction is \({ }_1^2 \mathrm{H}+{ }_1^2 \mathrm{H} \rightarrow{ }_2^3 \mathrm{He}+n+\) energy. In the core of fusion reactor. A gas of heavy hydrogen is fully ionized into deuteron nuclei and electrons. This collection of \({ }_1^4 \mathrm{H}\) nuclei and electrons is known as plasma. The nuclei move randomly in the reactor core and occasionally come close enough for nuclear fusion to take place. Usually, the temperatures in the reactor core are too high and no material wall can be used to confine the plasma. Special techniques are used which confine the plasma for a time \(t_0\) before the particles fly away from the core. If n is the density (number/volume) of deutrons, the product t \(_0\) is called Lawson number. In one of the criteria, \(a\) reactor is termed successful if Lawson number is greater than \(5 \times 10^{14} \mathrm{scm}^{-3}\).
It may be helpful to use the following : Boltzmann constant \(k=8.6 \times 10^{-5} \mathrm{eV} / \mathrm{K}\); \(\frac{e^2}{4 \pi \varepsilon_0}=1.44 \times 10^{-9} \mathrm{eVm}\)
Question:
Assume that two deuteron nuclei in the core of fusion reactor at temperature \(T\) are moving towards each other, each with kinetic energy \(1.5 \mathrm{kT}\), when the separation between them is large enough to neglect Coulomb potential energy. Also neglect any interaction from other particles in the core. The minimum temperature \(T\) required for them to reach a separation of \(4 \times 10^{-15} \mathrm{~m}\) is in the range
- A \(1.0 \times 10^9 \mathrm{~K} < T < 2.0 \times 10^9 \mathrm{~K}\)
- B \(20 \times 10^9 \mathrm{~K} < T < 3.0 \times 10^9 \mathrm{~K}\)
- C \(3.0 \times 10^9 \mathrm{~K} < T < 4.0 \times 10^9 \mathrm{~K}\)
- D \(4.0 \times 10^9 \mathrm{~K} < T < 5.0 \times 10^9 \mathrm{~K}\)
Answer & Solution
Correct Answer
(A) \(1.0 \times 10^9 \mathrm{~K} < T < 2.0 \times 10^9 \mathrm{~K}\)
Step-by-step Solution
Detailed explanation
From conservation of mechanical energy, we have
\(U_i+K_i=U_f+U_f\)
\(0+2(1.5 k T)=\frac{1}{4 \pi \varepsilon_0} \cdot \frac{(e)(e)}{d}+0\)
Substituting the values, we get
\(
T=1.4 \times 10^9 \mathrm{~K}
\)
\(U_i+K_i=U_f+U_f\)
\(0+2(1.5 k T)=\frac{1}{4 \pi \varepsilon_0} \cdot \frac{(e)(e)}{d}+0\)
Substituting the values, we get
\(
T=1.4 \times 10^9 \mathrm{~K}
\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Column I shows four situations of standard Young's double slit arrangement with the screen placed far away from the slits \(S_1\) and \(S_2\). In each of these cases \(S_1 P_0=S_2 P_0\), \(S_1 P_1-S_2 P_1=\frac{\lambda}{4}\) and \(S_1 P_2-S_2 P_2=\frac{\lambda}{3}\), where \(\lambda\) is the wavelength of the light used. In the cases \(\mathrm{B}, \mathrm{C}\) and \(\mathrm{D}\), a transparent sheet of refractive index \(\mu\) and thickness \(t\) is pasted on slit \(S_2\). The thickness of the sheets are different in different cases. The phase difference between the light waves reaching a point \(P\) on the screen from the two slits is denoted by \(\delta(P)\) and the intensity by \(I(P)\). Match each situation given in Column-I with the statement(s) in Column-II valid for that situation.
JEE Advanced 2009 Hard - A point charge is placed just outside an imaginary hemispherical surface of radius R as shown in the figure. Which of the following statements is/are correct?
JEE Advanced 2017 Medium - Six point charges are kept at the vertices of a regular hexagon of side \(\mathrm{L}\) and centre \(O\), as shown in the figure.
Given that \(K=\frac{1}{4 \pi \varepsilon_{0}} \frac{q}{L^{2}}\), which of the following statement(s) is (are) correct?

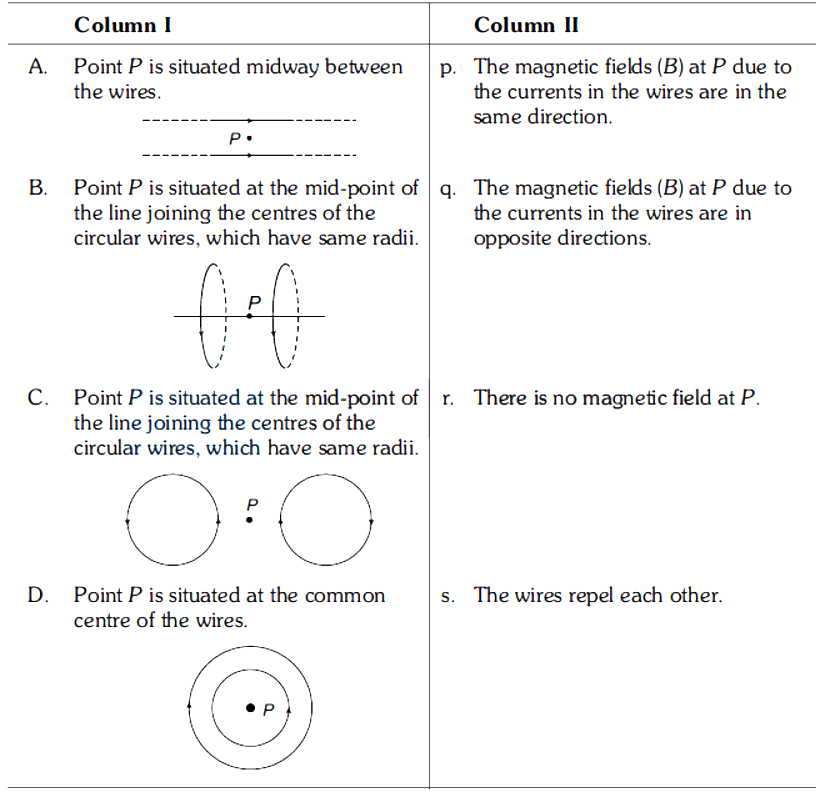

JEE Advanced 2012 Medium - Two wires each carrying a steady current \(I\) are shown in four configurations in Column I. Some of the resulting effects are described in Column II. Match the statements in Column I with the statements in Column II and indicate your answer by darkening appropriate bubbles in the \(4 \times 4\) matrix given in the ORS.
