TS EAMCET · Physics · Communication System
When the receiving antenna is on the ground, the range of a transmitting antenna of height 980 m is
(Radius of the earth \(=6400 \mathrm{~km}\) )
- A 56 km
- B 112 km
- C 72.4 km
- D 224 km
Answer & Solution
Correct Answer
(B) 112 km
Step-by-step Solution
Detailed explanation
\(d = \sqrt{2Rh}\) \(d = \sqrt{2 \times 6400 \times 10^3 \mathrm{~m} \times 980 \mathrm{~m}} = 112000 \mathrm{~m}\) \(d = 112 \mathrm{~km}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Drops of liquid of density \(d\) are floating half immersed in a liquid of density \(\rho\). If the surface tension of the liquid is \(T\), then the radius of the drop isTS EAMCET 2012 Hard
- If the rate of change of electric field across the plates of a parallel plate capacitor is \(E\) and the displacement current is I, then the area of one plate of the capacitor is ( \(\varepsilon_{\mathrm{o}}\) is permittivity of free space)TS EAMCET 2025 Medium
- Eight spherical rain drops of the same mass and radius are falling down with a terminal speed of \(6 \mathrm{~cm}-\mathrm{s}^{-1}\). If they coalesce to form one big drop, what will be the terminal speed of bigger drop? (Neglect the buoyancy of the air)TS EAMCET 2009 Easy
- A steam at \(100^{\circ} \mathrm{C}\) is passed into \(1 \mathrm{~kg}\) of water contained in a calorimeter of water equivalent \(0.2 \mathrm{~kg}\) at \(9^{\circ} \mathrm{C}\) till the temperature of the calorimeter and water in it is increased to \(90^{\circ} \mathrm{C}\). The mass of steam condensed in \(\mathrm{kg}\) is nearly (specific heat of water \(=1 \mathrm{cal} / \mathrm{g}{ }^{\circ} \mathrm{C}\), latent heat of vaporisation \(=540 \mathrm{cal} / \mathrm{g}\) )TS EAMCET 2014 Medium

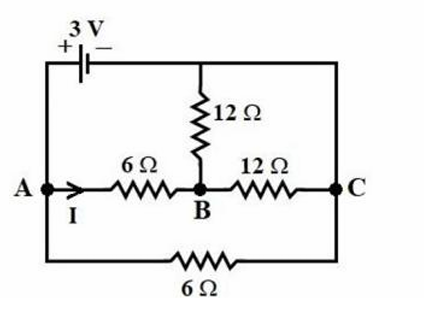

- For the circuit shown in the figure, the current through \(6 \Omega\) resistor connected between the junctions A and B is
