TS EAMCET · Physics · Semiconductors
A semiconductor is doped with phosphorous atoms as impurity. The impurity levels created in the semiconductor are close to the
- A top of the valence band
- B bottom of the conduction band
- C bottom of the valence band
- D top of the conduction band
Answer & Solution
Correct Answer
(B) bottom of the conduction band
Step-by-step Solution
Detailed explanation
Phosphorous is a pentavalent impurity. So, resulting semiconductor is a \(n\)-type semiconductor. The energy band diagram of a \(n\)-type semiconductor is shown below So, the energy levels of impurity atom created in the semiconductor are close to the bottom of the conduction…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics

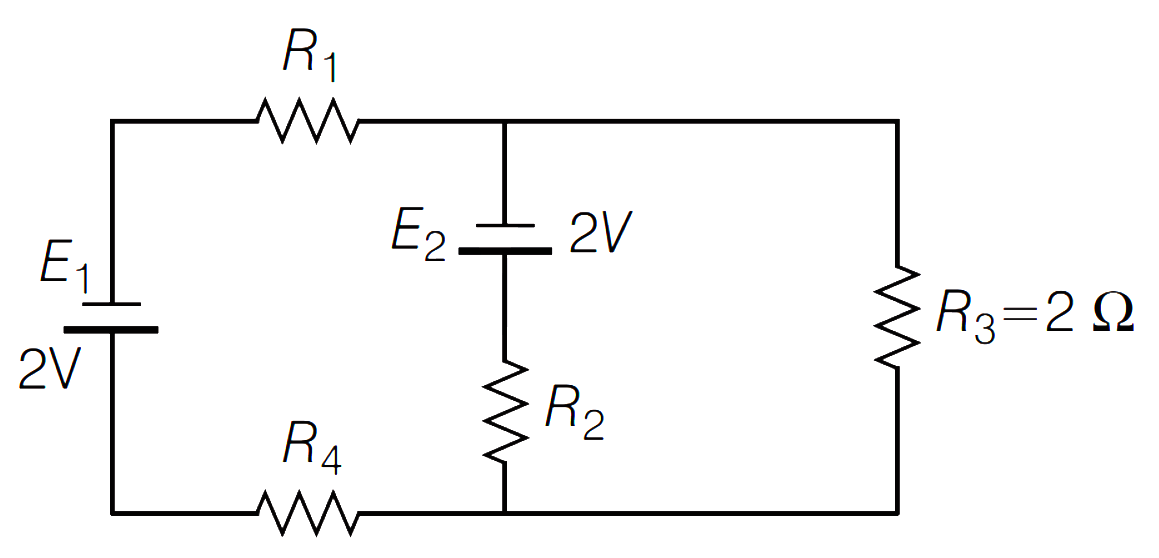

- If the resistances are chosen for the circuit shown in figure in such a way that no current flows through the battery with emf \(E_1\), the voltage \(V_2\) across \(R_2\) and the current \(Y_3\) flowing through \(R_3\) are respectively,
