JEE Mains · Physics · STD 12 -7. Alternating current
In a series \(LCR\) resonant circuit, the quality factor is measured as \(100\) If the inductance is increased by two fold and resistance is decreased by two fold, then the quality factor after this change will be .........
- A \(200\)
- B \(100\)
- C \(300\)
- D \(400\)
Answer & Solution
Correct Answer
(D) \(400\)
Step-by-step Solution
Detailed explanation
\(Q =\frac{ X _{ L }}{ R }=\frac{\omega L }{ R }=\frac{1}{\sqrt{ LC }} \frac{ L }{ R }=\frac{\sqrt{ L }}{ R \sqrt{ C }}\) \(Q ^{\prime}=\frac{\sqrt{2 L }}{\left(\frac{ R }{2}\right) \sqrt{ C }}=2 \sqrt{2} Q =2 \sqrt{2}(100)\) \(=282.84\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- The area of cross section of the rope used to lift a load by a crane is \(2.5 \times 10^{-4} m ^{2}\). The maximum lifting capacity of the crane is \(10\) metric tons. To increase the lifting capacity of the crane to \(25\) metric tons, the required area of cross section of the rope should be.\(.........\times 10^{-4} \,m ^{2}\) (take \(g =10\, ms ^{-2}\) )JEE Mains 2022 Medium
- Eight copper wire of length \(l\) and diameter \(d\) are joined in parallel to form a single composite conductor of resistance \(R\). If a single copper wire of length \(2\,l\) have the same resistance \((R)\) then its diameter will be \(.....d\).JEE Mains 2022 Easy
- The \(K_{\alpha}\; X-\)ray of molybdenum has wavelength \(0.071\, {nm}\). If the energy of a molybdenum atoms with a \(K\) electron knocked out is \(27.5\, {keV}\), the energy of this atom when an \(L\) electron is knocked out will be \(....\,keV.\) (Round off to the nearest integer) \(\left[{h}=4.14 \times 10^{-15} \,{eVs}, {c}=3 \times 10^{8}\, {ms}^{-1}\right.]\)JEE Mains 2021 Hard
- A gun mounted on the ground fires bullets in all directions with same speed. The farthest distance the bullets could reach is \(6.4\) m. The speed of the bullets from the gun is ______ m/s.

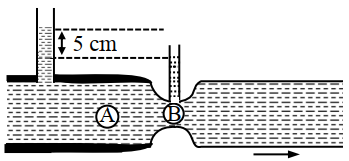

(take \(g=10\) m/s\(^2\))JEE Mains 2026 Easy - Water flows through a horizontal tube as shown in the figure. The difference in height between the water columns in vertical tubes is 5 cm and the area of cross-sections at \(A\) and \(B\) are \(6 cm^2\) and \(3 cm^2\) respectively.
The rate of flow will be ___________ \(cm ^3 / s\). (take \(g =10 m / s ^2\) )
JEE Mains 2026 Hard -
N equally spaced charges each of value q , are placed on a circle of radius R . The circle rotates about its axis with an angular velocity \(\omega\) as shown in the figure. A bigger Amperian loop B encloses the whole circle where as a smaller Amperian loop A encloses a small segment. The difference between enclosed currents, \(I_A-I_B\), for the given Amperian loops is:JEE Mains 2025 Medium
More PYQs from JEE Mains
- Three rods of identical cross-section and lengths are made of three different materials of thermal conductivity \(K _{1}, K _{2},\) and \(K _{3}\), respectively. They are joined together at their ends to make a long rod (see figure). One end of the long rod is maintained at \(100^{\circ} C\) and the ther at \(0^{\circ} C\) (see figure). If the joints of the rod are at \(70^{\circ} C\) and \(20^{\circ} C\) in steady state and there is no loss of energy from the surface of the rod, the correct relationship between \(K _{1}, K _{2}\) and \(K _{3}\) is
JEE Mains 2020 Hard - The shortest distance between the lines \(\frac{x-2}{3}=\frac{y+1}{2}=\frac{z-6}{2}\) and \(\frac{x-6}{3}=\frac{1-y}{2}=\frac{z+8}{0}\) is equal to \(............\)JEE Mains 2023 Hard
- Shown in the figure is rigid and uniform one meter long rod \(AB\) held in horizontal position by two strings tied to its ends and attached to the ceiling. The rod is of mass \('m'\) and has another weight of mass \(2m\) hung at a distance of \(75\, cm\) from \(A\). The tension in the string at \(A\) is\(....mg\)
JEE Mains 2020 Hard - Two cells are connected between points \(A\) and \(B\) as shown. Cell \(1\) has emf of \(12\,V\) and internal resistance of \(3\,\Omega\). Cell \(2\) has emf of \(6\,V\) and internal resistance of \(6\,\Omega\). An external resistor \(R\) of \(4\,\Omega\) is connected across \(A\) and \(B\). The current flowing through \(R\) will be \(.............A\).
JEE Mains 2023 Medium - A plane polarized monochromatic \(EM\) wave is travelling a vacuum along \(z\) direction such that at \(t\, = t_1\) it is found that the electric field is zero at a spatial point \(z_1\) . The next zero that occurs in its neighbourhood is at \(z_2\). The frequency of the electromagnetic wave is:JEE Mains 2018 Hard
- A radioactive nucleus \(A\) with a half life \(T\), decays into a nucleus \(B.\) At \(t = 0\), there is no nucleus \(B\). At sometime \(t\), the ratio of the number of \(B\) to that of \(A\) is \(0.3\). Then, \(t\) is given byJEE Mains 2017 Hard
