JEE Mains · Physics · STD 11 - 7. gravitation
Find the gravitational force of attraction between the ring and sphere as shown in the diagram, where the plane of the ring is perpendicular to the line joining the centres. If \(\sqrt{8}\, R\) is the distance between the centres of a \(mng\) (of mass ' \(m\) ) and a sphere (mass ' \(M\) ) where both have equal radius \('R'.\)
- A \(\frac{\sqrt{8}}{9} \cdot \frac{ GmM }{ R }\)
- B \(\frac{2 \sqrt{2}}{3} \cdot \frac{ GMm }{ R ^{2}}\)
- C \(\frac{1}{3 \sqrt{8}} \cdot \frac{ GMm }{ R ^{2}}\)
- D \(\frac{\sqrt{8}}{27} \cdot \frac{ GmM }{ R ^{2}}\)
Answer & Solution
Correct Answer
(D) \(\frac{\sqrt{8}}{27} \cdot \frac{ GmM }{ R ^{2}}\)
Step-by-step Solution
Detailed explanation
Gravitational field of ring \(=-\frac{\text { Gmx }}{\left(R^{2}+x^{2}\right)^{3 / 2}}\) Force between sphere and ring \(=\frac{\operatorname{GmM}(\sqrt{8} R )}{\left( R ^{2}+8 R ^{2}\right)^{3 / 2}}\) \(=\frac{ GmM }{ R ^{2}} \times \frac{\sqrt{8}}{27}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- An object of mass \(m _{1}\) collides with another object of mass \(m _{2}\), which is at rest. After the collision the objects move with equal speeds in opposite direction. The ratio of the masses \(m _{2}: m _{1}\) isJEE Mains 2021 Medium
- Two projectiles are fired from ground with same initial speeds from same point at angles \(\left(45^{\circ}+\alpha\right)\) and \(\left(45^{\circ}-\alpha\right)\) with horizontal direction. The ratio of their times of flights isJEE Mains 2025 Easy
- A parallel plate capacitor with plates of area \(1\,m^2\) each, are at a separation of \(0.1\,m.\) If the electric field between the plates is \(100\,N/C,\) the magnitude of charge on each plateJEE Mains 2019 Medium
- An electron, moving along the \(x-\) axis with an initial energy of \(100\, eV\), enters a region of magnetic field \(\vec B = (1.5\times10^{-3}T)\hat k\) at \(S\) (See figure). The field extends between \(x = 0\) and \(x = 2\, cm\). The electron is detected at the point \(Q\) on a screen placed \(8\, cm\) away from the point \(S\). The distance \(d\) between \(P\) and \(Q\) (on the screen) is :......\(cm\) (electron's charge \(= 1.6\times10^{-19}\, C\), mass of electron \(= 9.1\times10^{-31}\, kg\))
JEE Mains 2019 Hard - An atom \({ }_3^8 X\) is bombarded by shower of fundamental particles and in 10 s this atom absorbed 10 electrons, 10 protons and 9 neutrons. The percentage growth in the surface area of the nucleons is recorded by :JEE Mains 2026 Medium
- In the equation \(\left[X+\frac{a}{Y^2}\right][Y-b]= R T, X\) is pressure, \(Y\) is volume, \(R\) is universal gas constant and \(T\) is temperature. The physical quantity equivalent to the ratio \(\frac{a}{b}\) isJEE Mains 2023 Hard
More PYQs from JEE Mains
- Two identical bodies \(A\) and \(B\) of equal masses have initial velocities \(\vec{v_1} = 4\hat{i}\) m/s and \(\vec{v_2} = 4\hat{j}\) m/s respectively. The body \(A\) has acceleration \(\vec{a_1} = 6\hat{i} + 6\hat{j}\) m/s\(^2\) while the acceleration of the other body \(B\) is zero. The centre of mass of the two bodies moves in __________ path.JEE Mains 2026 Hard

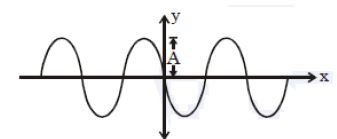

- A progressive wave travelling along the positive \(x-\) direction is represented by \(y(x, t) = A\,sin\,\left( {kx - \omega t + \phi } \right)\). Its snapshot at \(t = 0\) is given in the figure For this wave, the phase \(\phi \) is
