JEE Mains · Physics · STD 11 - 1. units,dimensions and measurement
A torque meter is calibrated to reference standards of mass, length and time each with \(5 \%\) accuracy. After calibration, the measured torque with this torque meter will have net accuracy of\(............\%\)
- A \(15\)
- B \(25\)
- C \(75\)
- D \(5\)
Answer & Solution
Correct Answer
(B) \(25\)
Step-by-step Solution
Detailed explanation
Dimensional formula for Torque \([\tau]=\left[ ML ^{2} T ^{-2}\right]\) Now Percentage error in torque \(=\% \tau=\% M +2 \% L+2 \% T\) \(\% \tau=25 \%\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Identify the semiconductor devices whose characteristics are given below, in the order \((a),(b),(c),(d) \)
JEE Mains 2016 Medium - A \(30\) cm long solenoid has \(10\) turns per cm and area of \(5\) cm\(^2\). The current through the solenoid coil varies from \(2\) A to \(4\) A in \(3.14\) s. The e.m.f. induced in the coil is \(\alpha\times 10^{-5}\) V. The value \(\alpha\) is ________.JEE Mains 2026 Medium
- Magnitude of magnetic field (in \(SI\) units) at the centre of a hexagonal shape coil of side \(10\, cm\), \(50\) turns and carrying current \(I\) (Ampere) in units of \(\frac{\mu_{0} I}{\pi}\) isJEE Mains 2020 Hard
- A metallic rod of length ' \(L\) ' is rotated with an angular speed of ' \(\omega\) ' normal to a uniform magnetic field ' \(B\) ' about an axis passing through one end of rod as shown in figure. The induced emf will be :
JEE Mains 2023 Medium - In a potentiometer arrangement, a cell of emf \(1.20\, V\) gives a balance point at \(36\, cm\) length of wire. This cell is now replaced by another cell of emf \(1.80\, V\). The difference in balancing length of potentiometer wire in above conditions will be \(....cm\).JEE Mains 2022 Hard
- A metal wire of resistance \(3\,\Omega \) is elongated to make a uniform wire of double its previous length. The new wire is now bent and the ends joined to make a circle. If two points on this circle make an angle \(60^o\) at the centre, the equivalent resistance between these two points will beJEE Mains 2019 Medium
More PYQs from JEE Mains
- A simple pendulum, made of a string of length \(l\) and a bob of mass \(m\) , is released from a small angle \(\theta_0\). It strikes a block of mass \(M\), kept on a horizontal surface at its lowest point of oscillations, elastically. It bounces back and goes up to an angle \(\theta_1\). Then \(M\) is given byJEE Mains 2019 Hard
- The radius of the smallest circle which touches the parabolas \(y=x^2+2\) and \(x=y^2+2\) isJEE Mains 2025 Medium
- The number of terms in an \(A .P.\) is even ; the sum of the odd terms in it is \(24\) and that the even terms is \(30\). If the last term exceeds the first term by \(10\frac{1}{2}\) , then the number of terms in the \(A.P.\) isJEE Mains 2014 Hard
- If \(\log _{3} 2, \log _{3}\left(2^{x}-5\right), \log _{3}\left(2^{x}-\frac{7}{2}\right)\) are in an arithmetic progression, then the value of \(x\) is equal to \(.....\)JEE Mains 2021 Medium

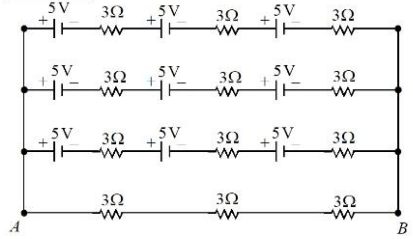

- Refer to the figure given below, current between terminals \(A\) and \(B\) is _____ A.
JEE Mains 2026 Hard - When a part of a straight capillary tube is placed vertically in a liquid, the liquid raises upto certain height h. If the inner radius of the capillary tube, density of the liquid and surface tension of the liquid decrease by 1% each, then the height of the liquid in the tube will change by __________ %.JEE Mains 2026 Easy
