JEE Advanced · Physics · 8. Rotational Motion
Statement 1 Two cylinders, one hollow (metal) and the other solid (wood) with the same mass and identical dimensions are simultaneously allowed to roll without slipping down an inclined plane from the same height. The hollow cylinder will reach the bottom of the inclined plane first.
and Statement 2 By the principle of conservation of energy, the total kinetic energies of both the cylinders are identical when they reach the bottom of the incline.
- A Statement 1 is true, Statement 2 is true, Statement 2 is a correct explanation for Statement 1.
- B Statement 1 is true, Statement 2 is true, Statement 2 is not a correct explanation for Statement 1.
- C Statement 1 is true, Statement 2 is false.
- D Statement 1 is false, Statement 2 is true
Answer & Solution
Correct Answer
(D) Statement 1 is false, Statement 2 is true
Step-by-step Solution
Detailed explanation
In case of pure rolling on inclined plane,
\(a=\frac{g \sin \theta}{1+I / m R^2} \)
\( I_{\text {solid }} < I_{\text {hollow }} \)
\( \therefore a_{\text {solid }}>a_{\text {hollow}}\)
\(\therefore\) solid cylinder will reach the bottom first.
Further, in case of pure rolling on stationary ground, work done by friction is zero. Therefore, mechanical energy of both the cylinders will remain constant.
\(\therefore(\mathrm{KE})_{\text {Hollow}}=(\mathrm{KE})_{\text {solid}}=\) \(\text {decrease in } \mathrm{PE}=m g h\)
\(\therefore \text {correct option is }(\mathrm{d})\)
\(a=\frac{g \sin \theta}{1+I / m R^2} \)
\( I_{\text {solid }} < I_{\text {hollow }} \)
\( \therefore a_{\text {solid }}>a_{\text {hollow}}\)
\(\therefore\) solid cylinder will reach the bottom first.
Further, in case of pure rolling on stationary ground, work done by friction is zero. Therefore, mechanical energy of both the cylinders will remain constant.
\(\therefore(\mathrm{KE})_{\text {Hollow}}=(\mathrm{KE})_{\text {solid}}=\) \(\text {decrease in } \mathrm{PE}=m g h\)
\(\therefore \text {correct option is }(\mathrm{d})\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Three vectors and are shown in the figure. Let, be any point on the vector . The distance between the points and is . The general relation among vectors and are
JEE Advanced 2017 Medium - A small particle of mass moving inside a heavy, hollow and straight tube along the tube axis, undergoes elastic collision at two ends. The tube has no friction and it is closed at one end by a flat surface while the other end is fitted with a heavy movable flat piston as shown in figure. When the distance of the piston from closed end is the particle speed is The piston is moved inward at a very low speed such that where is the infinitesimal displacement of the piston. Which of the following statement(s) is/are correct?
JEE Advanced 2019 Hard - A particle of mass \(m\) is moving in a circular orbit under the influence of the central force \(F(r)=-k r\), corresponding to the potential energy \(V(r)=k r^2 / 2\), where \(k\) is a positive force constant and \(r\) is the radial distance from the origin. According to the Bohr's quantization rule, the angular momentum of the particle is given by \(L=n \hbar\), where \(\hbar=h /(2 \pi), h\) is the Planck's constant, and \(n\) a positive integer. If \(v\) and \(E\) are the speed and total energy of the particle, respectively, then which of the following expression(s) is(are) correct?JEE Advanced 2024 Medium
- A ray of light travelling in water is incident on its surface open to air. The angle of incidence is \(\theta\), which is less than the critical angle. Then there will beJEE Advanced 2007 Medium
- When two progressive waves \(y_1=4 \sin (2 x-6 t) \quad\) and \(y_2=3 \sin \left(2 x-6 t-\frac{\pi}{2}\right) \quad\) are superimposed, the amplitude of the resultant wave isJEE Advanced 2010 Easy
- List-I shows various functional dependencies of energy \((E)\) on the atomic number \((Z)\). Energies associated with certain phenomena are given in List-II. Choose the option that describes the correct match between the entries in List-I to those in List-II.
List - I List - II (P) \(E\text { propto } Z^2\) (1) energy of characteristic x-rays (Q) \(E\text { propto } (Z-1)^2\) (2) electrostatic part of the nuclear binding energy for stable nuclei with mass numbers in the range 30 to 170 (R) \(E \text { propto } Z(Z-1)\) (3) energy of continuous x-rays (S) E is practically independent of Z (4) average nuclear binding energy per nucleon for stable nuclei with mass number in the range 30 to 170 (5) energy of radiation due to electronic transitions from hydrogen-like atoms JEE Advanced 2025 Hard
More PYQs from JEE Advanced
- \(2.5 \mathrm{~mL}\) of \(\frac{2}{5} \mathrm{M}\) weak monoacidic base \(\left(K_b=1 \times 10^{-12}\right.\) at \(\left.25^{\circ} \mathrm{C}\right)\) is titrated with \(\frac{2}{15}\) \(\mathrm{M} \mathrm{HCl}\) in water at \(25^{\circ} \mathrm{C}\). The concentration of \(\mathrm{H}^{+}\)at equivalence point is \(\left(K_w=1 \times 10^{-14}\right.\) at \(\left.25^{\circ} \mathrm{C}\right)\)JEE Advanced 2008 Hard
- Consider a uniform spherical charge distribution of radius centred at the origin O. In this distribution, a spherical cavity of radius , centred at with distance (see figure) is made. If the electric field inside the cavity at position is , then the correct statement(s) is (are)
JEE Advanced 2015 Medium - Two balls, having linear momenta \(\overrightarrow{\mathbf{p}}_1=p \hat{\mathbf{i}}\) and \(\overrightarrow{\mathbf{p}}_2=-p \hat{\mathbf{i}}\), undergo a collision in free space. There is no external force acting on the balls. Let \(\overrightarrow{\mathbf{p}}_1^{\prime}\) and \(\overrightarrow{\mathbf{p}}_2^{\prime}\) be their final momenta. The following option(s) is/are NOT ALLOWED for any non-zero value of \(p, a_1, a_2, b_1, b_2, c_1\) and \(c_2\)JEE Advanced 2008 Easy
- Let \(f:\left[0, \frac{\pi}{2}\right] \rightarrow[0,1]\) be the function defined by \(f(x)=\sin ^2 x\) and let \(g:\left[0, \frac{\pi}{2}\right] \rightarrow[0, \infty)\) be the function defined by \(g(x)=\sqrt{\frac{\pi x}{2}-x^2}\).
The value of \(\frac{16}{\pi^3} \int_0^{\frac{\pi}{2}} f(x) g(x) d x\) isJEE Advanced 2024 Medium - The sum of the spin only magnetic moment values (in B.M.) of \(\left[\mathrm{Mn}(\mathrm{Br})_6\right]^{3-}\) and \(\left[\mathrm{Mn}(\mathrm{CN})_6\right]^{3-}\) is _____.JEE Advanced 2025 Medium

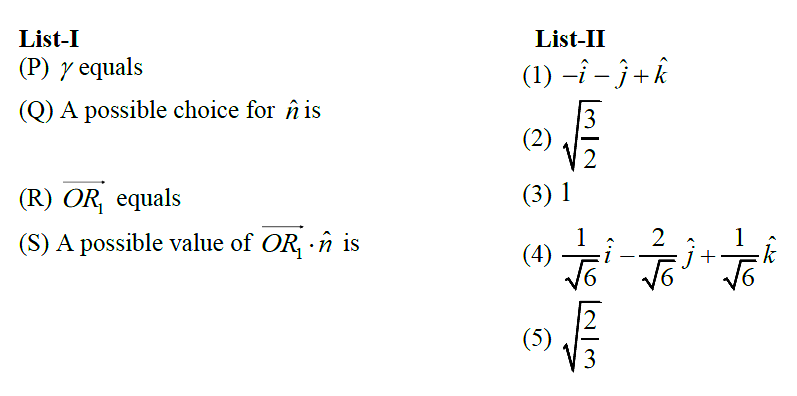

- Let \(\gamma \in \mathbb{R}\) be such that the lines \(\mathrm{L}_1: \frac{x+11}{1}=\frac{\mathrm{y}+21}{2}=\frac{\mathrm{z}+29}{3}\) and \(L_2: \frac{x+16}{3}=\frac{y+11}{2}=\frac{z+4}{\gamma}\) intersect. Let \(\mathrm{R}_1\) be the point of intersection of \(\mathrm{L}_1\) and \(\mathrm{L}_2\). Let \(\mathrm{O}=(0,0,0)\), and \(\hat{\mathrm{n}}\) denote a unit normal vector to the plane containing both the lines \(\mathrm{L}_1\) and \(\mathrm{L}_2\).
