An electron in a hydrogen atom undergoes a transition from an orbit with a quantum number $n_i$ to another quantum number $n_f$ . $V_i \text{and} V_f$ are the initial and final potential energies of the electron. If $\frac{V_i}{V_f}=6.25$ then the smallest $n_f$ is

In order to measure the internal resistance $r_1$ of a cell of emf $\epsilon ,$ a meter bridge of wire resistance $R_0=50 \mathrm{\Omega }$, a resistance $\frac{R_0}{2}$, another cell of emf $\frac{\epsilon }{2}$ (internal resistance $r$) and a galvanometer $G$ are used in a circuit, as shown in the figure. If the null point is found at $l=72 \mathrm{cm},$ then the value of $r_1=\_\_\_\_\mathrm{\Omega }.$

In a Young's double slit experiment, a combination of two glass wedges \(A\) and \(B\), having refractive indices 1.7 and 1.5, respectively, are placed in front of the slits, as shown in the figure. The separation between the slits is \(d=2 \mathrm{~mm}\) and the shortest distance between the slits and the screen is \(D=2 \mathrm{~m}\). Thickness of the combination of the wedges is \(t=12 \mu \mathrm{~m}\). The value of \(l\) as shown in the figure is 1 mm . Neglect any refraction effect at the slanted interface of the wedges. Due to the combination of the wedges, the central maximum shifts (in mm ) with respect to O by ______

An electron in an excited state of $\mathrm{L}{\mathrm{i}}^{2+}$ ion has angular momentum $\frac{3\mathrm{h}}{2\mathrm{\pi }}$ . The de Broglie wavelength of the electron in this state is $\mathrm{p}\mathrm{\pi }{\mathrm{\alpha }}_0$ (where ${\mathrm{a}}_0$ is the Bohr radius). The value of $\mathrm{p}$ is

A cylindrical vessel of height \(500 \mathrm{~mm}\) has an orifice (small hole) at its bottom. The orifice is initially closed and water is filled in it upto height \(H\). Now the top is completely sealed with a cap and the orifice at the bottom is opened. Some water comes out from the orifice and the water level in the vessel becomes steady with height of water column being 200 \(\mathrm{mm}\). Find the fall in height (in \(\mathrm{mm}\) ) of water level due to opening of the orifice.
[Take atmospheric pressure \(=1.0 \times 10^5 \mathrm{Nm}^{-2}\), density of water \(=1000 \mathrm{~kg} \mathrm{~m}^{-3}\) and \(g=10\) \(\mathrm{ms}^{-2}\). Neglect any effect of surface tension.]

Paragraph :
When a particle of mass \(m\) moves on the \(x\)-axis in a potential of the form \(V(x)=k x^2\), it performs simple harmonic motion.

The corresponding time period is proportional to \(\sqrt{\frac{m}{k}}\), as can be seen easily using dimensional analysis. However, the motion of a particle can be periodic even when its potential energy increases on both sides of \(x=0\) in a way different from \(k x^2\) and its total energy is such that the particle does not escape to infinity. Consider a particle of mass \(\mathrm{m}\) moving on the \(x\)-axis. Its potential energy is \(V(x)=\alpha x^4(\alpha>0)\) for \(|x|\) near the origin and becomes a constant equal to \(V_0\) for \(|x| \geq X_0\) (see figure).
Question :
If the total energy of the particle is \(E\), it will perform periodic motion only if

Two men are walking along a horizontal straight line in the same direction. The man in front walks at a speed $1.0 m s^{-1}$ and the man behind walks at a speed $2.0 m s^{-1}$ . A third man is standing at a height $12 m$ above the same horizontal line such that all three men are in a vertical plane. The two walking men are blowing identical whistles which emit a sound of frequency $1430 Hz$ . The speed of sound in air is $330 m s^{-1}.$ At the instant, when the moving men are $10 m$ apart, the stationary man is equidistant from them. The frequency of beats in $Hz$ , heard by the stationary man at this instant, is __________.

Planck' constant $\mathrm{h}$ , speed of light $\mathrm{c}$ and gravitational constant $\mathrm{G}$ are used to form a unit of length $\mathrm{L}$ and a unit of mass $\mathrm{M}$ . Then the correct option(s) is (are)

To an evacuated vessel with movable piston under external pressure of \(1 \mathrm{~atm}\), \(0.1\) mole of He and \(1.0\) mole of an unknown compound (vapour pressure \(0.68 mathrm{~atm}\) at \(0^{\circ} \mathrm{C}\) ) are introduced. Considering the ideal gas behaviour, the total volume (in litre) of the gases at \(0^{\circ} \mathrm{C}\) is close to

Six point charges, each of the same magnitude \(q\), are arranged in different manners as shown in Column-II. In each case, a point \(M\) and a line \(P Q\) passing through \(M\) are shown. Let \(E\) be the electric field and \(V\) be the electric potential at \(M\) (potential at infinity is zero) due to the given charge distribution when it is at rest. Now, the whole system is set into rotation with a constant angular velocity about the line \(P Q\). Let \(B\) the magnetic field at \(M\) and \(\mu\) be the magnetic moment of the system in this condition. Assume each rotating charge to be equivalent to a steady current.

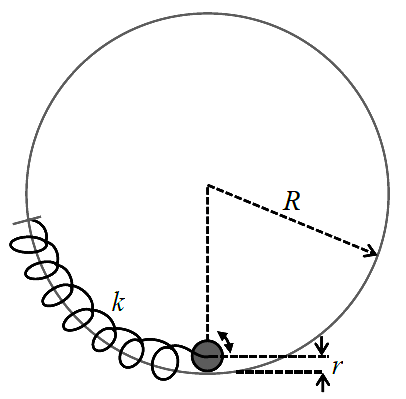

The center of a disk of radius \(r\) and mass \(m\) is attached to a spring of spring constant \(k\), inside a ring of radius \(R>r\) as shown in the figure. The other end of the spring is attached on the periphery of the ring. Both the ring and the disk are in the same vertical plane. The disk can only roll along the inside periphery of the ring, without slipping. The spring can only be stretched or compressed along the periphery of the ring, following the Hooke's law. In equilibrium, the disk is at the bottom of the ring. Assuming small displacement of the disc, the time period of oscillation of center of mass of the disk is written as \(T=\frac{2 \pi}{\omega}\). The correct expression for \(\omega\) is ( \(g\) is the acceleration due to gravity):

The correct statement(s) about of the following reaction sequence is(are)

Paragraph:

\(\mathbf{X}\) and \(\mathbf{Y}\) are two volatile liquids with molar weights of \(10 \mathrm{~g} \mathrm{~mol}^{-1}\) and \(40 \mathrm{~g} \mathrm{~mol}^{-1}\) respectively. Two cotton plugs, one soaked in \(\mathbf{X}\) and the other soaked in \(\mathbf{Y}\), are simultaneously placed at the ends of a tube of length \(L=24 \mathrm{~cm}\), as shown in the figure. The tube is filled with an inert gas at \(1\) atmosphere pressure and a temperature of \(300 \mathrm{~K}\). Vapours of \(\mathbf{X}\) and \(\mathbf{Y}\) react to form a product which is first observed at a distance \(\mathbf{d} \mathrm{~cm}\) from the plug soaked in \(\mathbf{X}\). Take \(\mathbf{X}\) and \(\mathbf{Y}\) to have equal molecular diameters and assume ideal behaviour for the inert gas and the two vapours.



Question:

The experimental value of \(\mathbf{d}\) is found to be smaller than the estimate obtained using Graham's law. This is due to
