JEE Advanced · Physics · 25. Wave Optics
In a Young's double slit experiment, a combination of two glass wedges \(A\) and \(B\), having refractive indices 1.7 and 1.5, respectively, are placed in front of the slits, as shown in the figure. The separation between the slits is \(d=2 \mathrm{~mm}\) and the shortest distance between the slits and the screen is \(D=2 \mathrm{~m}\). Thickness of the combination of the wedges is \(t=12 \mu \mathrm{~m}\). The value of \(l\) as shown in the figure is 1 mm . Neglect any refraction effect at the slanted interface of the wedges. Due to the combination of the wedges, the central maximum shifts (in mm ) with respect to O by ______
- A 1.1
- B 1.2
- C 1.3
- D 1.4
Answer & Solution
Correct Answer
(B) 1.2
Step-by-step Solution
Detailed explanation
\(\begin{aligned} & x+y=12 \mu m \\ & \frac{4}{12}=\frac{1}{x} \\ & x=3 \mu m \\ & y=6 \mu m\end{aligned}\)
\(\therefore \Delta=\frac{y d}{D}-\left(\mu_B-1\right) x-\left(\mu_A-1\right) y~+\) \(\left(\mu_B-1\right) y+\left(\mu_A-1\right) x \)
\( \frac{-y d}{D}=-0.5 \times 3-0.7 \times 9+0.5 \times 9+0.7 \times 3 \)
\( \frac{-y d}{D}=-0.5 \times 6-0.7 \times 6 \)
\( \Rightarrow \frac{-y d}{D}=-1.2 \mu \mathrm{~m} \)
\( \Rightarrow y=\frac{1.2 \times D}{d}=\frac{1.2 \times 2}{2 \times 10^{-3}} \times 10^{-6} \)
\( =1.2 \mathrm{~mm}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- In the given circuit, the \(\mathrm{AC}\) source has \(\omega=100 \mathrm{rad} / \mathrm{s}\). Considering the inductor and capacitor to be ideal, the correct choice(s) is (are)
JEE Advanced 2012 Hard - Match List I with List II and select the correct answer using the codes given below the lists:
\(\text{List I}\) \(\text{List II}\) a. Boltzmann constant p. \(\left[M L^2 T^{-1}\right]\) b. Coefficient of viscosity q. \(\left[M L^{-1} T^{-1}\right]\) c. Planck constant r. \(\left[M L T^{-3} K^{-1}\right]\) d. Thermal conductivity s. \(\left[M L^2 T^{-2} K^{-1}\right]\) JEE Advanced 2013 Easy - A solid horizontal surface is covered with a thin layer of oil. A rectangular block of mass is at rest on this surface. An impulse of is applied to the block at time so that it starts moving along the x-axis with a velocity , where is a constant and . The displacement of the block, in meter, at is __________. TakeJEE Advanced 2018 Medium
- Four identical thin, square metal sheets, \(S_1, S_2, S_3\) and \(S_4\), each of side \(a\) are kept parallel to each other with equal distance \(d(\ll a)\) between them, as shown in the figure. Let \(C_0=\varepsilon_0 a^2 / d\), where \(\varepsilon_0\) is the permittivity of free space.

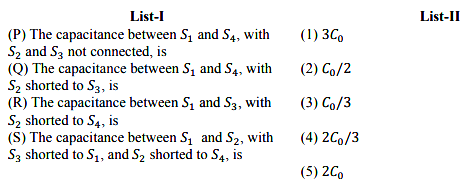

Match the quantities mentioned in List-I with their values in List-II and choose the correct option.
