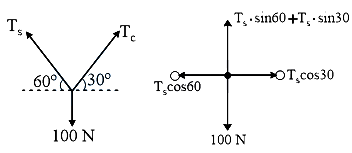

A block of weight $100\mathrm{}\mathrm{N}$ is suspended by copper and steel wires of same cross-sectional area $0.5\mathrm{}\mathrm{c}{\mathrm{m}}^2$ and, length $\sqrt{3}\mathrm{}\mathrm{m}$ and $1\mathrm{}\mathrm{m},$ respectively. Their other ends are fixed on a ceiling as shown in figure. The angles subtended by copper and steel wires with ceiling are ${30}^{\mathrm{o}}$ and ${60}^{\mathrm{o}},$ respectively. If elongation in copper wire is $\left(\mathrm{\Delta }{\mathrm{l}}_{\mathrm{C}}\right)$ and elongation in steel wire is $\left(\mathrm{\Delta }{\mathrm{l}}_{\mathrm{S}}\right),$ then the ratio $\frac{\mathrm{\Delta }{\mathrm{l}}_{\mathrm{C}}}{\mathrm{\Delta }{\mathrm{l}}_{\mathrm{S}}}$ is _____.
[Young's modulus for copper and steel are $1\times {10}^{11}\mathrm{N}/{\mathrm{m}}^2$ and $2\times {10}^{11}\mathrm{N}/{\mathrm{m}}^2$ respectively]

Two identical plates P and Q , radiating as perfect black bodies, are kept in vacuum at constant absolute temperatures \(\mathrm{T}_{\mathrm{P}}\) and \(\mathrm{T}_{\mathrm{Q}}\), respectively, with \(\mathrm{T}_{\mathrm{Q}}<\mathrm{T}_{\mathrm{P}}\), as shown in Fig. 1. The radiated power transferred per unit area from P to Q is \(W_0\). Subsequently, two more plates, identical to P and Q, are introduced between P and Q, as shown in Fig. 2. Assume that heat transfer takes place only between adjacent plates. If the power transferred per unit area in the direction from P to Q (Fig. 2) in the steady state is \(W_S\), then the ratio \(\frac{W_0}{W_S}\) is ________.

A parallel plate capacitor \(C\) with plates of unit area and separation \(d\) is filled with a liquid of dielectric constant \(K=2\). The level of liquid is \(\frac{d}{3}\) initially. Suppose the liquid level decreases at a constant speed \(v\), the time constant as a function of time \(t\) is

The figure shows certain wire segments joined together to form a coplanar loop. The loop is placed in a perpendicular
magnetic field in the direction going into the plane of the figure. The magnitude of the field increases with time. \(I_1\) and \(I_2\) are the currents in the segments \(a b\) and \(c d\). Then,

The binding energy of nucleons in a nucleus can be affected by the pairwise Coulomb repulsion. Assume that all nucleons are uniformly distributed inside the nucleus. Let the binding energy of a proton be $E_b^p$ and the binding energy of a neutron be $E_b^n$ in the nucleus.
Which of the following statement(s) is(are) correct?

A cylindrical furnace has height $\left(H\right)$ and diameter $\left(D\right)$ both $1 \mathrm{m}$. It is maintained at temperature $360 \mathrm{K}$. The air gets heated inside the furnace at constant pressure $P_a$ and its temperature becomes $T=360 \mathrm{K}$. The hot air with density $\rho$ rises up a vertical chimney of diameter $d=0.1 \mathrm{m}$ and height $h=9 \mathrm{m}$ above the furnace and exits the chimney (see the figure). As a result, atmospheric air of density ${\rho }_a=1.2 \mathrm{kg} {\mathrm{m}}^{-3}$, pressure $P_a$ and temperature $T_a=300 \mathrm{K}$ enters the furnace. Assume air as an ideal gas, neglect the variations in $\rho$ and $T$ inside the chimney and the furnace. Also ignore the viscous effects.
[Given: The acceleration due to gravity $g=10 \mathrm{m} {\mathrm{s}}^{-2}$ and $\pi =3.14$]

Considering the air flow to be streamline, the steady mass flow rate of air exiting the chimney is _____ $\mathrm{gm} {\mathrm{s}}^{-1}$.

As shown in the figures, a uniform rod \(O O^{\prime}\) of length \(l\) is hinged at the point \(O\) and held in place vertically between two walls using two massless springs of same spring constant. The springs are connected at the midpoint and at the top-end \(\left(O^{\prime}\right)\) of the rod, as shown in Fig. 1 and the rod is made to oscillate by a small angular displacement. The frequency of oscillation of the rod is \(f_1\). On the other hand, if both the springs are connected at the midpoint of the rod, as shown in Fig. 2 and the rod is made to oscillate by a small angular displacement, then the frequency of oscillation is \(f_2\). Ignoring gravity and assuming motion only in the plane of the diagram, the value of \(\frac{f_1}{f_2}\) is:

A projectile of mass 200 g is launched in a viscous medium at an angle \(60^{\circ}\) with the horizontal, with an initial velocity of \(270 \mathrm{~m} / \mathrm{s}\). It experiences a viscous drag force \(\vec{F}=-c \vec{v}\) where the drag coefficient \(c=0.1 \mathrm{~kg} / \mathrm{s}\) and \(\vec{v}\) is the instantaneous velocity of the projectile. The projectile hits a vertical wall after 2 s . Taking \(e=2.7\), the horizontal distance of the wall from the point of projection (in m ) is

Paragraph:

Let \(F_{1}\left(x_{1}, 0\right)\) and \(F_{2}\left(x_{2}, 0\right)\), for \(x_{1}<0\) and \(x_{2}>0\), be the foci of the ellipse \(\frac{x^{2}}{9}+\frac{y^{2}}{8}=1 .\) Suppose a parabola having vertex at the origin and focus at \(F_{2}\) intersects the ellipse at point \(M\) in the first quadrant and at point \(N\) in the fourth quadrant.


Question:

The orthocentre of the triangle \(F_{1} M N\) is

Let \(f(x)=x^4+a x^3+b x^2+c\) be a polynomial with real coefficients such that \(f(1)=-9\). Suppose that \(i \sqrt{3}\) is a root of the equation \(4 x^3+3 a x^2+2 b x=0\), where \(i=\sqrt{-1}\). If \(\alpha_1, \alpha_2, \alpha_3\), and \(\alpha_4\) are all the roots of the equation \(f(x)=0\), then \(\left|\alpha_1\right|^2+\left|\alpha_2\right|^2+\left|\alpha_3\right|^2+\left|\alpha_4\right|^2\) is equal to ________.

Using the expression $2d \sin \theta =\lambda$, one calculates the values of $d$ by measuring the corresponding angle $\text{θ}$ in the range $0$ to $90°$. The wavelength $\lambda$ is exactly known and the error in $\theta$ is constant for all the values of $\theta$. As $\text{θ}$ increases from $0°$,

Paragraph:
A fixed mass $\text{'}\mathrm{m}\text{'}$ of a gas is subjected to transformation of states from $\mathrm{K}$ to $\mathrm{L}$ to $\mathrm{M}$ to $\mathrm{N}$ and back to $\mathrm{K}$ as shown in the figure

Question :
The pair of isochoric processes among the transformation of states is

Let $\overrightarrow{a}=2\widehat{i}+\widehat{j}-\widehat{k}$ and $\overrightarrow{b}=\widehat{i}+2\widehat{j}+\widehat{k}$ be two vectors. Consider a vector $\overrightarrow{c}=\alpha \overrightarrow{a}+\beta \overrightarrow{b}, \alpha , \beta \in R.$ If the projection of $\overrightarrow{c}$ on the vector $\left(\overrightarrow{a}+\overrightarrow{b}\right)$ is $3\sqrt{2},$ then the minimum value of $\left(\overrightarrow{c}-\left(\overrightarrow{a}\times \overrightarrow{b}\right)\right).\overrightarrow{c}$ equals
