JEE Advanced · Chemistry · 13. GOC
The number of resonance structures for N is

- A 3
- B 6
- C 9
- D 12
Answer & Solution
Correct Answer
(C) 9
Step-by-step Solution
Detailed explanation

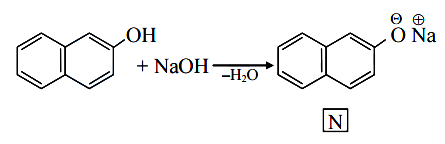

Compound given contain phenolic, hhence on reaction with sodium hydroxide reaction will be;

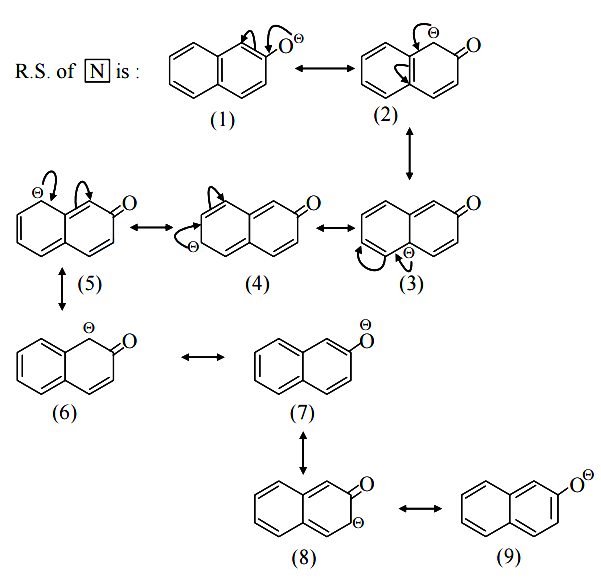

The ion (N) form will be stabilized by resonance. The resonating structures ar


The ion (N) form will be stabilized by resonance. The resonating structures ar
