JEE Mains · Physics · STD 12 - 5. Magnetism and matter
A magnetic dipole in a constant magnetic field has
- A maximum potential energy when the torque is maximum
- B zero potential energy when the torque is minimum
- C zero potential energy when the torque is maximum
- D minimum potential energy when the torque is maximum.
Answer & Solution
Correct Answer
(C) zero potential energy when the torque is maximum
Step-by-step Solution
Detailed explanation
Potential energy of dipole, \(U = - pE\,\cos \,\theta \) Torque experienced by dipole \(\tau = pE\,\sin \,\theta \) Torque will be maximum \(({\tau _{\max }})\) when \(\theta = {90^o}\) then potential energy \(U = 0\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A thin strip \(10\, cm\) long is on a \(U\) shaped wire of negligible resistance and it is connected to a spring of spring constant \(0.5\,Nm^{-1}\) (see figure). The assembly is kept in a uniform magnetic field of \(0.1\, T\). If the strip is pulled from its equilibrium position and released, the number of oscillations it performs before its amplitude decreases by a factor of \(e\) is \(N\). If the mass of the strip is \(50\, grams\), its resistance \(10\,\Omega \) and air drag negligible, \(N\) will be close to
JEE Mains 2019 Hard - The equation of a particle executing simple harmonic motion is given by \(x =\sin \pi\left( t +\frac{1}{3}\right) m\). At \(t =1 \,s\), the speed of particle will be .......... \(cm s ^{-1}\) (Given : \(\pi=3.14\) )JEE Mains 2022 Medium

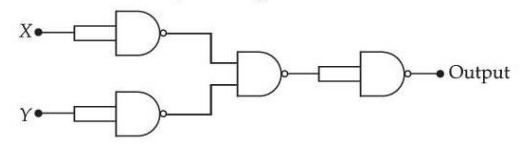

- If \(X\) and \(Y\) are the inputs, the given circuit works as _______.
