A steady current \(I\) goes through a wire loop \(P Q R\) having shape of a right angle triangle with \(P Q=3 x, P R=4 x\) and \(Q R=5 x\). If the magnitude of the magnetic field at \(P\) due to this loop is \(k\left(\frac{\mu_0 I}{48 \pi x}\right)\), find the value of \(k\).

A single slit diffraction experiment is performed to determine the slit width using the equation, \(\frac{b d}{D}=m \lambda\), where \(b\) is the slit width, \(D\) the shortest distance between the slit and the screen, \(d\) the distance between the \(m^{\text {th }}\) diffraction maximum and the central maximum, and \(\lambda\) is the wavelength. \(D\) and \(d\) are measured with scales of least count of 1 cm and 1 mm, respectively. The values of \(\lambda\) and \(m\) are known precisely to be 600 nm and 3, respectively. The maximum absolute error (in \(\mu \mathrm{m}\)) in the value of \(b\) estimated using the diffraction maximum that occurs for \(m=3\) with \(d=5 \mathrm{~mm}\) and \(D=1 \mathrm{~m}\) is ______.

In a Young's double slit experiment, the separation between the two slits is \(d\) and the wavelength of the light is \(\lambda\). The intensity of light falling on slit 1 is four times the intensity of light falling on slit 2 . Choose the correct choice(s),

List-I shows various functional dependencies of energy \((E)\) on the atomic number \((Z)\). Energies associated with certain phenomena are given in List-II. Choose the option that describes the correct match between the entries in List-I to those in List-II.

List - I	List - II
(P) \(E\text { propto } Z^2\)	(1) energy of characteristic x-rays
(Q) \(E\text { propto } (Z-1)^2\)	(2) electrostatic part of the nuclear binding energy for stable nuclei with mass numbers in the range 30 to 170
(R) \(E \text { propto } Z(Z-1)\)	(3) energy of continuous x-rays
(S) E is practically independent of Z	(4) average nuclear binding energy per nucleon for stable nuclei with mass number in the range 30 to 170
	(5) energy of radiation due to electronic transitions from hydrogen-like atoms

Paragraph :
The capacitor of capacitance \(C\) can be charged (with the help of a resistance \(R\) ) by a voltage source \(V\), by closing switch \(S_1\) while keeping switch \(S_2\) open. The capacitor can be connected in series with an inductor \(L\) by closing switch \(S_2\) and opening \(S_1\).

Question :
If the total charge stored in the \(L C\) circuit is \(Q_0\), then for \(t \geq 0\)

Consider a body of mass $1.0 kg$ at rest at the origin at time $t=0$. A force $\overrightarrow{F}=\left(\alpha t\widehat{i}+\beta \widehat{j}\right)$ is applied on the body, where $\alpha =1.0N{s}^{-1}and \beta =1.0N$ . The torque acting on the body about the origin at time $=1.0 s \mathrm{i}\mathrm{s} \overrightarrow{\tau }$ . Which of the following statements is (are) true?

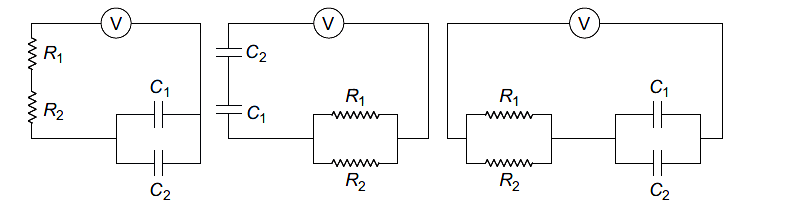

Find the time constant for the given R C circuits in correct order.

\(R_1=1 \Omega, R_2=2 \Omega, C_1=4 \mu \mathrm{F}, C_2=2 \mu \mathrm{F}\)

Paragraph:
Consider the polynomial \(f(x)=1+2 x+3 x^2+4 x^3\). Let \(s\) be the sum of all distinct real roots of \(f(x)\) and let \(t=|s|\).Question:
The area bounded by the curve \(y=f(x)\) and the lines \(x=0, y=0\) and \(x=t\), lies in the interval

A planet of mass M, has two natural satellites with masses $m_1\mathrm{a}\mathrm{n}\mathrm{d}{m}_2$ . The radii of their circular orbits are $R_1 \mathrm{a}\mathrm{n}\mathrm{d} R_2$ respectively. Ignore the gravitational force between the satellites. Define $v_1,L_1,K_1 \mathrm{a}\mathrm{n}\mathrm{d} T_1$ to be, respectively, the orbital speed, angular momentum, kinetic energy and time period of revolution of satellite $1; \mathrm{a}\mathrm{n}\mathrm{d} v_2,L_2,K_2\mathrm{a}\mathrm{n}\mathrm{d} T_2$ and to be the corresponding quantities of satellite 2. Given $m_1/m_2=2 \mathrm{a}\mathrm{n}\mathrm{d} R_1/R_2=\frac{1}{4}$ , match the ratios in List-I to the numbers in List-II.

	LIST -I		LIST-II
A)	$\frac{v_1}{v_2}$	P)	$\frac{1}{8}$
B)	$\frac{L_1}{L_2}$	Q)	1
C)	$\frac{K_1}{K_2}$	R)	2
D)	$\frac{T_1}{T_2}$	S)	8

The correct stability order of the following resonance structure is

Let $PQRS$ be a quadrilateral in a plane, where $QR=1,\angle PQR=\angle QRS=70°,\angle PQS=15°$ and $\angle PRS=40°$. If $\angle RPS=\theta °,PQ=\alpha$ and $PS=\beta$, then the interval(s) that contain(s) the value of $4\alpha \beta \sin \theta °$ is/are

An electron in an excited state of $\mathrm{L}{\mathrm{i}}^{2+}$ ion has angular momentum $\frac{3\mathrm{h}}{2\mathrm{\pi }}$ . The de Broglie wavelength of the electron in this state is $\mathrm{p}\mathrm{\pi }{\mathrm{\alpha }}_0$ (where ${\mathrm{a}}_0$ is the Bohr radius). The value of $\mathrm{p}$ is

Let \(k \in \mathbb{R}\). If \(\lim _{x \rightarrow 0^+}(\sin (\sin k x)+\cos x+x)^{\frac{2}{x}}=e^6\), then the value of \(k\) is
