JEE Advanced · Mathematics · 13. Parabola
Paragraph:
Consider the circle \(x^2+y^2=9\) and the parabola \(y^2=8 x\). They intersect at \(P\) and \(Q\) in the first and the fourth quadrants, respectively. Tangents to the circle at \(P\) and \(Q\) intersect the \(\mathrm{X}\)-axis at \(R\) and tangents to the parabola at \(P\) and \(Q\) intersect the \(\mathrm{X}\)-axis at \(S\).Question:
The radius of the circumcircle of the \(\triangle P R S\) is
- A
5
- B
\(3 \sqrt{3}\)
- C
\(3 \sqrt{2}\)
- D
\(2 \sqrt{3}\)
Answer & Solution
Correct Answer
(B)
\(3 \sqrt{3}\)
Step-by-step Solution
Detailed explanation
Equation of circumcircle of \(\triangle P R S\) is
\[
(x+1)(x-9)+y^2+\lambda y=0
\]
It will pass through \((1,2 \sqrt{2})\), then
\[
\begin{aligned}
-16+8+\lambda \cdot 2 \sqrt{2} & =0 \\
\lambda \quad \lambda & =\frac{8}{2 \sqrt{2}}=2 \sqrt{2}
\end{aligned}
\]
Equation of circumcircle is
\[
x^2+y^2-8 x+2 \sqrt{2} y-9=0
\]
Hence, its radius is \(3 \sqrt{3}\).
ALITER
Let
\[
\begin{array}{ll}
\text { Let } & \angle P S R=\theta \\
\Rightarrow & \sin \theta=\frac{2 \sqrt{2}}{2 \sqrt{3}} \\
\Rightarrow & P R=6 \sqrt{2}=2 R \cdot \sin \theta
\end{array}
\]
\[
\Rightarrow \quad \sin \theta=\frac{2 \sqrt{2}}{2 \sqrt{3}}
\]
\[
\Rightarrow \quad R=3 \sqrt{3} \text {. }
\]
\[
(x+1)(x-9)+y^2+\lambda y=0
\]
It will pass through \((1,2 \sqrt{2})\), then
\[
\begin{aligned}
-16+8+\lambda \cdot 2 \sqrt{2} & =0 \\
\lambda \quad \lambda & =\frac{8}{2 \sqrt{2}}=2 \sqrt{2}
\end{aligned}
\]
Equation of circumcircle is
\[
x^2+y^2-8 x+2 \sqrt{2} y-9=0
\]
Hence, its radius is \(3 \sqrt{3}\).
ALITER
Let
\[
\begin{array}{ll}
\text { Let } & \angle P S R=\theta \\
\Rightarrow & \sin \theta=\frac{2 \sqrt{2}}{2 \sqrt{3}} \\
\Rightarrow & P R=6 \sqrt{2}=2 R \cdot \sin \theta
\end{array}
\]
\[
\Rightarrow \quad \sin \theta=\frac{2 \sqrt{2}}{2 \sqrt{3}}
\]
\[
\Rightarrow \quad R=3 \sqrt{3} \text {. }
\]
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Mathematics
- Let be given by ThenJEE Advanced 2014 Medium
- The positive integer value of \(n>3\) satisfying the equation
\(\frac{1}{\sin \left(\frac{\pi}{n}\right)}=\frac{1}{\sin \left(\frac{2 \pi}{n}\right)}+\frac{1}{\sin \left(\frac{3 \pi}{n}\right)} \text { is }\)JEE Advanced 2011 Hard - Let M and N be two matrices such that MN = NM. Further, if and , thenJEE Advanced 2014 Medium
- The coefficients of three consecutive terms of are in the ratio . ThenJEE Advanced 2013 Easy
- Paragraph:
Let \(p\) be an odd prime number and \(T_p\) be the following set of \(2 \times 2\) matrices
\[
T_p=\left\{A=\left[\begin{array}{ll}
a & b \\
c & a
\end{array}\right] ; a, b, c \in\{0,1,2, \ldots, p-1\}\right\}
\]Question:
The number of \(A\) in \(T_p\) such that \(A\) is either symmetric or skew-symmetric or both, and det \((A)\) is divisible by \(p\) isJEE Advanced 2010 Hard - Let \(I=\left(\begin{array}{ll}1 & 0 \\ 0 & 1\end{array}\right)\) and \(P=\left(\begin{array}{ll}2 & 0 \\ 0 & 3\end{array}\right)\). Let \(Q=\left(\begin{array}{ll}\mathrm{x} & \mathrm{y} \\ \mathrm{z} & 4\end{array}\right)\) for some non-zero real numbers \(x, y\), and \(z\), for which there is \(2 \times 2\) matrix \(R\) with all entries being non-zero real numbers, such that \(Q R=R P\). Then which of the following statements is (are) TRUE?JEE Advanced 2025 Medium
More PYQs from JEE Advanced
- Two concentric circular loops, one of radius and the other of radius , lie in the -plane with the origin as their common center, as shown in the figure. The smaller loop carries current in the anti-clockwise direction and the larger loop carries current in the clockwise direction, with denotes the magnetic field at a point in the -plane. Which of the following statement(s) is (are) correct?

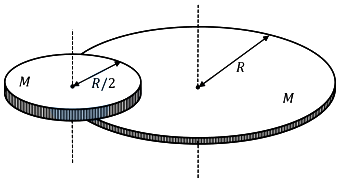

JEE Advanced 2021 Hard - A disc of mass \(M\) and radius \(R\) is free to rotate about its vertical axis as shown in the figure. A battery operated motor of negligible mass is fixed to this disc at a point on its circumference. Another disc of the same mass \(M\) and radius \(R / 2\) is fixed to the motor's thin shaft. Initially, both the discs are at rest. The motor is switched on so that the smaller disc rotates at a uniform angular speed \(\omega\). If the angular speed at which the large disc rotates is \(\omega / n\), then the value of \(n\) is ______ .
JEE Advanced 2024 Medium - Let be a invertible matrix with real entries and let denote the identity matrix. , then which of the following statements is/are ALWAYS TRUE?JEE Advanced 2020 Easy
- One mole of a monoatomic ideal gas goes through a thermodynamic cycle, as shown in the volume versus temperature diagram. The correct statement(s) is/are:
[ is the gas constant]
JEE Advanced 2019 Medium - A student is performing an experiment using a resonance column and a tuning fork of frequency \(244 s^{-1}\). He is told that the air in the tube has been replaced by another gas (assume that the column remains filled with the gas). If the minimum height at which resonance occurs is \((0.350 \pm 0.005) m\), the gas in the tube is (Useful information: \(\sqrt{167\text{ RT}}=640\text{ J}^{\frac{1}{2}}\text{ mol}^{-\frac{1}{2}} ;\) \(\sqrt{140\text{ RT}}=590\text{ J}^{\frac{1}{2}}\text{ mole}^{-\frac{1}{2}}\) . The molar masses M in grams are given in the options. Take the values of \(\sqrt{\frac{10}{\text M }}\) for each gas as given there.)JEE Advanced 2014 Easy
- Paragraph:

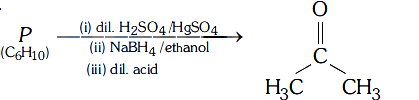

An acylic hydrocarbon \(P\), having molecular formula \(\mathrm{C}_6 \mathrm{H}_{10}\), gave acetone as the only organic product through the following sequence of reactions, in which \(Q\) is an intermediate organic compounds.
