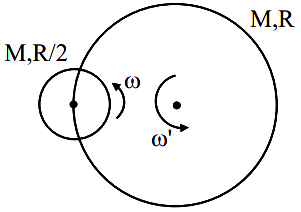

A disc of mass \(M\) and radius \(R\) is free to rotate about its vertical axis as shown in the figure. A battery operated motor of negligible mass is fixed to this disc at a point on its circumference. Another disc of the same mass \(M\) and radius \(R / 2\) is fixed to the motor's thin shaft. Initially, both the discs are at rest. The motor is switched on so that the smaller disc rotates at a uniform angular speed \(\omega\). If the angular speed at which the large disc rotates is \(\omega / n\), then the value of \(n\) is ______ .

Four solid spheres each of diameter \(\sqrt{5} \mathrm{~cm}\) and mass \(0.5 \mathrm{~kg}\) ar placed with their centres at the corners of a square of side \(4 \mathrm{~cm}\). The moment of inertia of the system about the diagonal of the square is \(N \times 10^{-4} \mathrm{~kg}-\mathrm{m}^2\), then \(N\) is

A charged particle is introduced at the origin $x=0, y=0, z=0$ with a given initial velocity $\overrightarrow{v}$ . A uniform electric field $\overrightarrow{E}$ and a uniform magnetic field $\overrightarrow{B}$ exist everywhere. The velocity $\overrightarrow{v}$ , electric field $\overrightarrow{E}$ and a uniform magnetic field $\overrightarrow{B}$ are given in the columns below

Column 1	Column 2	Column 3
1. Electron with $\overrightarrow{v}=2\frac{E_0}{B_0}\widehat{x}$	(i) $\overrightarrow{E}=E_0\widehat{z}$	(P) $\overrightarrow{B}=-B_0\widehat{x}$
2. Electron with $\overrightarrow{v}=\mathrm{}\frac{E_0}{B_0}\widehat{y}$	(ii) $\overrightarrow{E}=-E_0\widehat{y}$	(Q) $\overrightarrow{B}=B_0\widehat{x}$
3.Proton with $\overrightarrow{v}$ =0	(iii) $\overrightarrow{E}={-E}_0\widehat{x}$	(R) $\overrightarrow{B}=-B_0\widehat{y}$
4. Proton with $\overrightarrow{v}=2\frac{E_0}{B_0}\widehat{x}$	(iv) $\overrightarrow{E}=E_0\widehat{x}$	(S) $\overrightarrow{B}=-B_0\widehat{z}$

In which case will the particle move in a straight line with a constant velocity?

Paragraph :

A frame of reference that is accelerated with respect to an inertial frame of reference is called a non-inertial frame of reference. A coordinate system fixed on a circular disc rotating about a fixed axis with a constant angular velocity \(\omega\) is an example of a non-inertial frame of reference.

The relationship between the force \(\vec{F}_{\text {rot }}\) experienced by a particle of mass \(m\) moving on the rotating disc and the force \(\vec{F}_{\text {in }}\) experienced by the particle in an inertial frame of reference is

\(\vec{F}_{\mathrm{rot}}=\vec{F}_{\mathrm{in}}+2 m\left(\vec{v}_{\mathrm{rot}} \times \vec{\omega}\right)+m(\vec{\omega} \times \vec{r}) \times \vec{\omega}\),

where \(\vec{v}_{\text {rot }}\) is the velocity of the particle in the rotating frame of reference and \(\vec{r}\) is the position vector of the particle with respect to the centre of the disc.

Now consider a smooth slot along a diameter of a disc of radius \(R\) rotating counter-clockwise with a constant angular speed \(\omega\) about its vertical axis through its center. We assign a coordinate system with the origin at the center of the disc, the \(x\)-axis along the slot, the \(y\)-axis perpendicular to the slot and the \(z\)-axis along the rotation axis \((\vec{\omega}=\omega \hat{k}) .\) A small block of mass \(m\) is gently placed in the slot at \(\vec{r}=(R / 2) \hat{i}\) at \(t=0\) and is constrained to move only along the slot.

Question :
The net reaction of the disc on the block is

In the circuit shown, $L=1\text{μ}H,C=1\text{μ}FandR=1k\mathrm{\Omega }.$ They are connected in series with an a.c. source $V=V_0\sin \text{ω}t$ as shown. Which of the following options is/are correct?

Two non-conducting spheres of radii $R_1$ and $R_2$ and carrying uniform volume charge densities $+\rho$ and $-\rho$, respectively, are placed such that they partially overlap, as shown in the figure. At all points in the overlapping region,

Figure 1 shows the configuration of main scale and Vernier scale before measurement. Fig. 2 shows the configuration corresponding to the measurement of diameter \(D\) of a tube. The measured value of \(D\) is:

Water is filled up to a height \(h\) in a beaker of radius \(R\) as shown in the figure. The density of water is \(\rho\), the surface tension of water is \(T\) and the atmospheric pressure is \(p_0\). Consider a vertical section \(A B C D\) of the water column through a diameter of the beaker. The force on water on one side of this section by water on the other side of this section has magnitude.

Liquids A and B form ideal solution over the entire range of composition. At temperature $\mathrm{T}$, equimolar binary solution of liquids A and B has vapour pressure $45 \mathrm{T}\mathrm{o}\mathrm{r}\mathrm{r}$ . At the same temperature, a new solution of A and B having mole fractions ${\mathrm{x}}_{\mathrm{A}}\mathrm{ }\mathrm{and}\mathrm{ }{\mathrm{x}}_{\mathrm{B}}$, respectively, has vapour pressure of $22.5 \mathrm{T}\mathrm{o}\mathrm{r}\mathrm{r}$. The value of $\frac{{\mathrm{x}}_{\mathrm{A}}}{{\mathrm{x}}_{\mathrm{B}}}$, in the new solution is ____.
(Given that the vapour pressure of pure liquid A is $20 \mathrm{Torr}$ at temperature $\mathrm{T}$)

Paragraph:
The reactions of \(\mathrm{Cl}_{2}\) gas with cold-dilute and hot-concentrated \(\mathrm{NaOH}\) in water give sodium salts of two (different) oxoacids of chlorine, \(\boldsymbol{P}\) and \(\boldsymbol{Q}\), respectively. The \(\mathrm{Cl}_{2}\) gas reacts with \(\mathrm{SO}_{2}\) gas, in presence of charcoal, to give a product \(\boldsymbol{R}\). \(\boldsymbol{R}\) reacts with white phosphorus to give a compound \(\boldsymbol{S}\). On hydrolysis, \(\boldsymbol{S}\) gives an oxoacid of phosphorus, \(\boldsymbol{T}\).
Question:
\(P\) and \(Q\), respectively, are the sodium salts of

A circle S passes through the point (0, 1) and is orthogonal to the circles ${\left(x-1\right)}^2+y^2=16$ and $x^2+y^2=1$. Then

Passing \(\mathrm{H}_2 \mathrm{~S}\) gas into a mixture of \(\mathrm{Mn}^{2+}, \mathrm{Ni}^{2+}, \mathrm{Cu}^{2+}\) and \(\mathrm{Hg}^{2+}\) ions in an acidified aqueous solution precipitates

The value of \(b\) for which the equations \(x^2+b x-1=0, x^2+x+b=0\) have one root in common is
