JEE Advanced · Chemistry · 4. Chemical Bonding

For diatomic molecules, the correct statement(s) about the molecular orbitals formed by the overlap of two $2 p_{z}$ orbitals is(are)

A $σ$ orbital has a total of two nodal planes.
B $σ^{*}$ orbital has one node in the $xz$ -plane containing the molecular axis.
C $π$ orbital has one node in the plane which is perpendicular to the molecular axis and goes through the center of the molecule
D $π^{*}$ orbital has one node in the $xy$ -plane containing the molecular axis.

Verified Solution

Answer & Solution

Correct Answer

(D) $π^{*}$ orbital has one node in the $xy$ -plane containing the molecular axis.

Step-by-step Solution

Detailed explanation

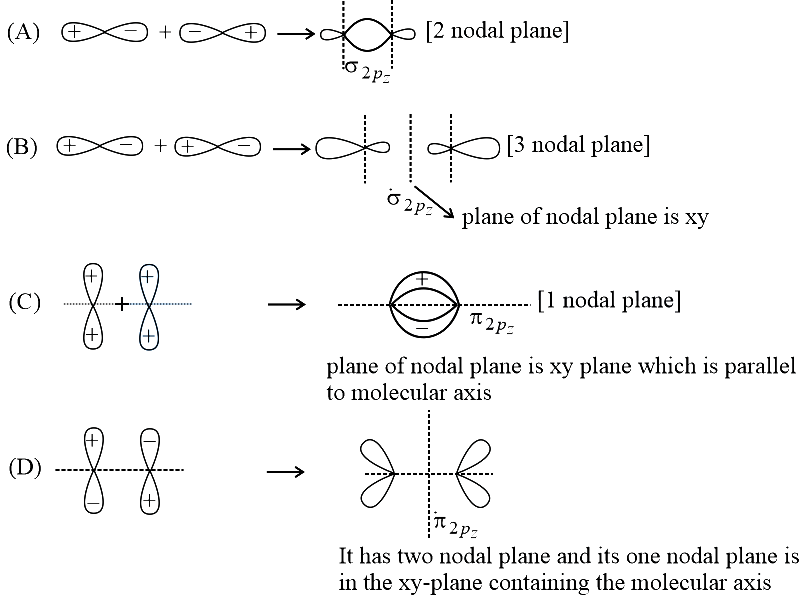

When this orbital combine along the internuclear axis then

σ

orbital is formed while this orbital approach each other parallel to each other and perpendicular to the internuclear axis

π

orbital is formed.

Apply the relevant identity from the chapter and substitute the values established in the previous step, keeping the original constraint in view.

Use the simplified expression to isolate the unknown, then plug the result back into the question setup to confirm the working is internally consistent.

Cross-check against a boundary or limiting case. Both the dimensional balance and the qualitative behaviour at the extreme should agree with the candidate answer.

Combine the steps above to identify the correct option. The remaining choices each fail at least one of the consistency, dimensional, or boundary checks.
