WBJEE · Physics · Electrostatics
Three infinite plane sheets carrying uniform charge densities \(-\sigma, 2 \sigma, 4 \sigma\) are placed parallel to \(X Z\) plane at \(Y=a, 3 a\), 4a respectively. The electric field at the point \((0,2 a, 0)\) is
- A \(\frac{5 \sigma}{2 \varepsilon_{0}} \hat{j}\)
- B \(-\frac{7 \sigma}{2 \varepsilon_{0}} \hat{j}\)
- C \(\frac{\sigma}{2 \varepsilon_{0}} \hat{j}\)
- D \(\frac{5 \sigma}{-2 \varepsilon_{0}} \hat{\mathrm{j}}\)
Answer & Solution
Correct Answer
(B) \(-\frac{7 \sigma}{2 \varepsilon_{0}} \hat{j}\)
Step-by-step Solution
Detailed explanation
\(\begin{aligned} \mathrm{E}_{\text {net }} &=7 \mathrm{E} \\ &=7 \frac{\sigma}{2 \varepsilon_{0}} \text { alone }-\text { ve } \mathrm{Y} \text {-axis } \\ & \therefore \overrightarrow{\mathrm{E}}=-\frac{7 \sigma}{2 \varepsilon_{0}} \hat{\mathrm{j}} \end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- If the electron in a hydrogen atom jumps from an orbit with level \(\mathrm{n}_1=2\) to an orbit with level \(\mathrm{n}_2=1\) the emitted radiation has a wavelength given byWBJEE 2009 Easy
- A positive charge \(Q\) is situated at the centre of a cube. The electric flux through any face of the cube is (in SI units)WBJEE 2017 Easy
- If momentum is increased by \(20 \%\), then kinetic energy increases byWBJEE 2010 Easy
- 3 moles of mono-atomic gas \((\gamma=5 / 3)\) is mixed with 1 mole of a diatomic gas \((\gamma=7 / 3) .\) The value of \(\gamma\) for the mixture will beWBJEE 2013 Easy
- A body of mass \(m\) is thrown with velocity u from the origin of a co-ordinate axes at an angle \(\theta\) with the horizon. The magnitude of the angular momentum of the particle about the origin at time \(\mathrm{t}\) when it is at the maximum height of the trajectory is proportional toWBJEE 2022 Medium
- The intermediate image formed by the objective of a compound microscope isWBJEE 2014 Hard
More PYQs from WBJEE
-
A particle of mass \(\mathrm{m}\) and charge \(\mathrm{q}\) moving with velocity \(\mathrm{v}\) enters region-b form region-a along the normal to the boundary as shown is the figure. Region-b has a uniform magnetic field \(B\) perpendicular to the plane of the paper. Also, region-b has length L. Choose the correct statements :WBJEE 2021 Easy -

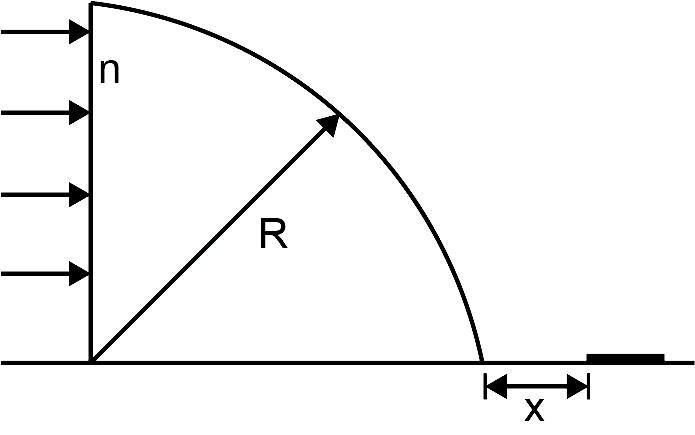

A parallel beam of light is incident on a glass prism in the shape of a quarter cylinder of radius \(R=0.05 \mathrm{m}\) and refractive index \(n=1.5,\) placed on a horizontal table as shown in the figure. Beyond the cylinder, a patch of light is found whose the nearest distance \(x\) from the cylinder isWBJEE 2017 Medium - In the circuit shown assume the diode to be ideal. When \(V_{i}\) increases from \(2 \mathrm{V}\) to \(6 \mathrm{V},\) the change in the current is (in mA)
