WBJEE · Physics · Magnetic Effects of Current
A particle of mass \(\mathrm{m}\) and charge \(\mathrm{q}\) moving with velocity \(\mathrm{v}\) enters region-b form region-a along the normal to the boundary as shown is the figure. Region-b has a uniform magnetic field \(B\) perpendicular to the plane of the paper. Also, region-b has length L. Choose the correct statements :
- A The particle enters region-c only if \(\mathrm{v}>\frac{\mathrm{qLB}}{\mathrm{m}}\)
- B The particle enters region-c only if \(\mathrm{v} < \frac{\mathrm{qLB}}{\mathrm{m}}\)
- C Path of the particle is a circle in region-b
- D Time spent in region -b is independent of velocity v
Answer & Solution
Correct Answer
(D) Time spent in region -b is independent of velocity v
Step-by-step Solution
Detailed explanation
Particle enter region 'c' if Radius is greater than ' \(L\) ' \(\Rightarrow \frac{m V}{q B}>L \Rightarrow V>\frac{q B L}{m}\) \(\because\) B is uniform and \(\overrightarrow{\mathrm{V}} \perp \overrightarrow{\mathrm{B}}\) so. Path is circular in region b…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics

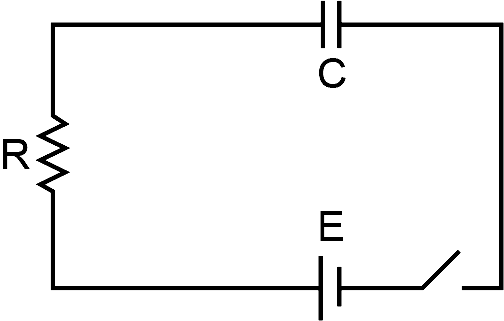

- A capacitor of capacitance \(C\) is connected in series with a resistance \(R\) and \(D C\) source of emf \(E\) through a key. The capacitor starts charging when the key is closed. By the time the capacitor has been fully charged. what amount of energy is dissipated in the resistance \(R ?\)
WBJEE 2019 Easy - A block of mass m rests on a horizontal table with a co-efficient of static friction \(\mu .\) What minimum force must be applied on the block to drag it on the table?WBJEE 2020 Hard
- Let the binding energy per nucleon of nucleus is denoted by ' \(\mathrm{E}_{\mathrm{bn}}\) ' and radius of the nucleus is denoted by' r '. If mass number of nuclei \(A\) and \(B\) are 64 and 125 respectively, thenWBJEE 2025 Medium
- 1000 droplets of water having \(2 \mathrm{mm}\) diameter each coalesce to form a single drop. Given the surface tension of water is \(0.072 \mathrm{Nm}^{-1}\). The energy loss in the process isWBJEE 2016 Medium
- The apparent coefficient of expansion of a liquid, when heated in a copper vessel is \(C\) and when heated in silver vessel is S . If A is linear coefficient of expansion of copper, then linear coefficient of expansion of silver isWBJEE 2025 Medium
- A point object is held above a thin equiconvex lens at its focus. The focal length is \(0.1 \mathrm{m}\) and the lens rests on a horizontal thin plane mirror. The final image will be formed atWBJEE 2017 Medium
More PYQs from WBJEE
- Which one is not a constituent of nucleic acid?WBJEE 2011 Easy
- A small steel ball bounces on a steel plate held horizontally. On each bounce the speed of the ball arriving at the plate is reduced by a factor
e (coefficient of restitution) in the rebound, so that \(V_{upward}=eV_{downward}\)
If the ball is initially dropped from a height of \(0.4 \mathrm{m}\) above the plate and if 10 seconds later the bouncing ceases, the value of \(e\) isWBJEE 2017 Medium - \(\int \frac{\cos 2 x}{\cos x} d x=\)WBJEE 2011 Medium
- A particle is executing linear simple harmonic motion of amplitude A. At what displacement is the energy of the particle half potential and half kinetic?WBJEE 2010 Easy
- Let \(A(2 \sec \theta, 3 \tan \theta)\) and \(B(2 \sec \phi, 3 \tan \phi)\) where \(\theta+\phi=\frac{\pi}{2}\) be two points on the hyperbola \(\frac{x^2}{4}-\frac{y^2}{9}=1\). If \((\alpha, \beta)\) is the point of intersection of normals to the hyperbola at \(A\) and \(B\), then \(\beta\) is equal toWBJEE 2023 Medium
- In the solid state, \(\mathrm{PCl}_{5}\) exists asWBJEE 2016 Easy
