Light of wavelength \(6000 Ã…\) is incident on a thin glass plate of \(\mu = 1.5\) such that the angle of refraction into the plate is \(60^{\circ}\). Calculate the smallest thickness of the plate which will make dark fringe by reflected beam interference.
- A \(1.5 \times 10^{-7} \mathrm{~m}\)
- B \(2 \times 10^{-7} \mathrm{~m}\)
- C \(3.5 \times 10^{-7} \mathrm{~m}\)
- D \(4 \times 10^{-7} \mathrm{~m}\)
Answer & Solution
Correct Answer
(D) \(4 \times 10^{-7} \mathrm{~m}\)
Step-by-step Solution
Detailed explanation
For reflected light, condition of destructive interference, \(2 \mu t \cos r-\frac{\lambda}{2}=(2 n+1) \frac{\lambda}{2}\) \(\Rightarrow 2 \mu \mathrm{t} \cos \mathrm{r}=(2 \mathrm{n}+1) \frac{\lambda}{2}+\frac{\lambda}{2}\) For minimum thickness of the plate, \(\mathrm{n}=0\),…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
-
A parallel beam of light is incident on a glass prism in the shape of a quarter cylinder of radius \(R=0.05 \mathrm{m}\) and refractive index \(n=1.5,\) placed on a horizontal table as shown in the figure. Beyond the cylinder, a patch of light is found whose the nearest distance \(x\) from the cylinder isWBJEE 2017 Medium - A plano-convex lens \((f=20 \mathrm{~cm})\) is silvered at plane surface. Now focal length will be :WBJEE 2010 Easy

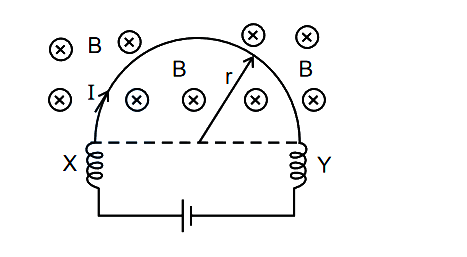

- A horizontal semi-circular wire of radius \(\mathrm{r}\) is connected to a battery through two similar springs \(\mathrm{X}\) and \(\mathrm{Y}\) to an electric cell, which sends current I through it. A vertically downward uniform magnetic field B is applied on the wire, as shown in the figure. What is the force acting on each spring?
