WBJEE · Physics · Magnetic Effects of Current
As shown in the figure, a single conducting wire is bent to form a loop in the form of a circle of radius 'r' concentrically inside a square of side ' \(a\) ', where \(a: r=8: \pi\). A battery B drives a current through the wire. If the battery B and the gap G are of negligible sizes, determine the strength of magnetic field at the common centre \(O\).
- A \(\cdot \frac{\mu_{0} \mid}{2 \pi a} \sqrt{2}(\sqrt{2}-1)\)
- B \(\frac{\mu_{0} I}{2 \pi a}(\sqrt{2}+1)\)
- C \(\frac{\mu_{0} I}{\pi a} 2 \sqrt{2}(\sqrt{2}+1)\)
- D \(\frac{\mu_{0} I}{\pi \mathrm{a}} 2 \sqrt{2}(\sqrt{2}-1)\)
Answer & Solution
Correct Answer
(D) \(\frac{\mu_{0} I}{\pi \mathrm{a}} 2 \sqrt{2}(\sqrt{2}-1)\)
Step-by-step Solution
Detailed explanation
Hint: \(\frac{a}{r}=\frac{8}{\pi}, r=\frac{\pi a}{8}\) \(B=\frac{\mu_{0} \mid}{2 r}-\frac{4 \mu_{0} I}{4 \pi a / 2} \times \sqrt{2}=\frac{\mu_{0} I}{2 r}-\frac{2 \sqrt{2} \mu_{0} I}{\pi a}=\frac{\mu_{0} \mid \times 8}{2 \pi a}-\frac{2 \sqrt{2} \mu_{0} I}{\pi a}\)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A hollow metal sphere of radius \(R\) is charged with a charge \(Q .\) The electric potential and intensity inside the sphere are respectivelyWBJEE 2016 Medium
- An ideal gas is compressed isothermally until its pressure is doubled and then allowed to expand adiabatically to regain its original volume \(\left(\gamma=1.4\right.\) and \(\left.2^{-14}=0.38\right)\). The ratio of the final to initial pressure isWBJEE 2011 Hard
- The electric field of a plane electromagnetic wave of wave number \(k\) and angular frequency \(\omega\) is given by \(\vec{E}=E_0(\hat{i}+\hat{j}) \sin (k z-\omega t)\). Which of the following gives the direction of the associated magnetic field \(\vec{B}\) ?WBJEE 2023 Easy
-
A block of mass \(m\) slides with speed \(v\) on a frictionless table towards another stationary block of mass \(m\). A massless spring with spring constant \(\mathrm{k}\) is attached to the second block as shown in figure. The maximum distance the spring gets compress through isWBJEE 2021 Medium - If the electron in a hydrogen atom jumps from an orbit with level \(\mathrm{n}_1=2\) to an orbit with level \(\mathrm{n}_2=1\) the emitted radiation has a wavelength given byWBJEE 2009 Easy

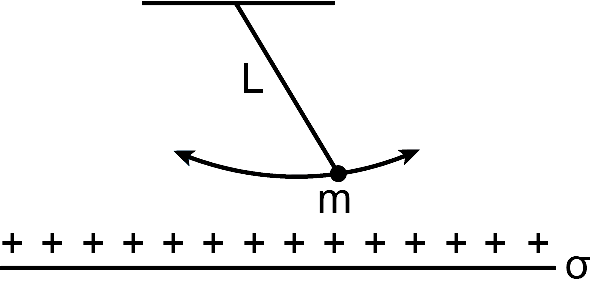

- The bob of a pendulum of mass \(m\), suspended by an inextensible string of length \(L\) as shown in the figure carries a small charge \(a\). An infinite horizontal plane conductor with uniform surface charge density \(\sigma\) is placed below it. What will be the time period of the pendulum for small amplitude oscillations?
