WBJEE · Physics · Electromagnetic Induction
A magnetic field \(B=2 t+4 t^{2}\) (where, \(t_{x}\) time) is applied perpendicular to the plany of a circular wire of radius \(r\) and resistance
R. If all the units are in SI the electric charge that flows through the circular wire during \(t=0 \mathrm{s}\) to \(t=2 \mathrm{s}\) is
- A \(\frac{6 \pi^{2}}{R}\)
- B \(\frac{20 \pi r^{2}}{R}\)
- C \(\frac{32 \pi^{2}}{R}\)
- D \(\frac{48 \pi^{2}}{R}\)
Answer & Solution
Correct Answer
(B) \(\frac{20 \pi r^{2}}{R}\)
Step-by-step Solution
Detailed explanation
Given, \(B=2 t+4 t^{2}\) at \(\quad t=0, B_{1}=0\) and at \(t=2, B_{2}=2 \times 2+4(2)^{2}\) \[ =4+16=20 \mathrm{Wb} / \mathrm{m}^{2} \] We have, \(\Delta Q=\frac{\Delta \phi}{R}=\frac{\pi^{2}\left(B_{2}-B_{1}\right)}{R}\)…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A boy of mass \(40 \mathrm{~kg}\) is climbing a vertical pole at a constant speed. If the coefficient of friction between his palms and the pole is 0.8 and \(g=10 \mathrm{~m} / \mathrm{s}^2\), the horizontal force that he is applying on the pole isWBJEE 2010 Easy
- Four equal charges of value \(+Q\) are placed at four vertices of a regular hexagon of side
W. By suitably choosing the vertices, what can the maximum possible magnitude of electric field at the centre of the hexagon?WBJEE 2018 Medium - What will be the molar specific heat at constant volume of an ideal gas consisting of rigid diatomic molecules?WBJEE 2019 Easy
- Two rods of equal length and diameter have thermal conductivities 3 and 4 units respectively. If they are joined in series, the thermal conductivity of the combination would beWBJEE 2009 Medium

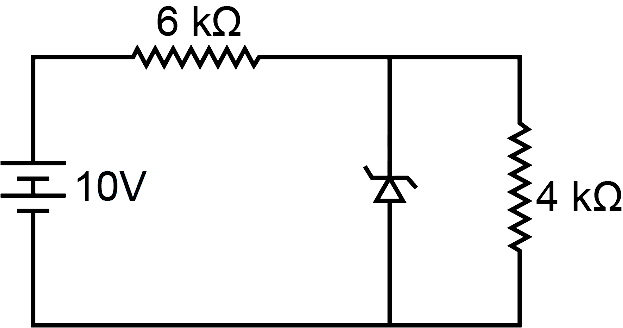

- What will be the current flowing through the \(6 \mathrm{k} \Omega\) resistor in the circuit shown, where the breakdown voltage of the Zener is \(6 \mathrm{V} ?\)
