TS EAMCET · Physics · Communication System
If the frequencies of the carrier wave and message signal are 1 MHz and 28 kHz respectively, then the frequencies of the side bands are
- A \(1014 \mathrm{kHz}, 986 \mathrm{kHz}\)
- B \(1028 \mathrm{kHz}, 972 \mathrm{kHz}\)
- C \(29 \mathrm{kHz}, 27 \mathrm{kHz}\)
- D \(514 \mathrm{kHz}, 486 \mathrm{kHz}\)
Answer & Solution
Correct Answer
(B) \(1028 \mathrm{kHz}, 972 \mathrm{kHz}\)
Step-by-step Solution
Detailed explanation
\(f_{USB} = f_c + f_m = 1 \mathrm{MHz} + 28 \mathrm{kHz} = 1000 \mathrm{kHz} + 28 \mathrm{kHz} = 1028 \mathrm{kHz}\) \(f_{LSB} = f_c - f_m = 1 \mathrm{MHz} - 28 \mathrm{kHz} = 1000 \mathrm{kHz} - 28 \mathrm{kHz} = 972 \mathrm{kHz}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- of water is heated from to What is the change in its internal energy? (Specific heat of water is )TS EAMCET 2021 Medium
- The concentration of electrons in an intrinsic semiconductor is \(6 \times 10^{15} \mathrm{~m}^{-3}\). On doping with an impurity the electron concentration increases to \(4 \times 10^{22}\) \(\mathrm{m}^{-3}\). In thermal equilibrium, the concentration of the holes in the doped semiconductor isTS EAMCET 2024 Medium
- A black body of mass \(34.38 \mathrm{~g}\) and surface area \(19.2 \mathrm{~cm}^2\) is at an initial temperature of \(400 \mathrm{~K}\). It is allowed to cool inside an evacuated enclosure kept at constant temperature \(300 \mathrm{~K}\). The rate of cooling is \(0.04^{\circ} \mathrm{C}\) per second. The specific heat of the body in \(\mathrm{J} \mathrm{kg}^{-1} \mathrm{~K}^{-1}\) is (Stefan's constant \(\sigma=5.73 \times 10^{-8} \mathrm{Wm}^{-2} \mathrm{~K}^{-4}\)TS EAMCET 2004 Easy
- A uniform conducting wire \(\mathrm{AB}\) of length \(5 \mathrm{~m}\) and resistance \(5 \Omega\) is connected as shown in the circuit. If the balancing point is obtained at \(3 \mathrm{~m}\) from \(\mathrm{A}\), then the value of \(\mathrm{E}\) is

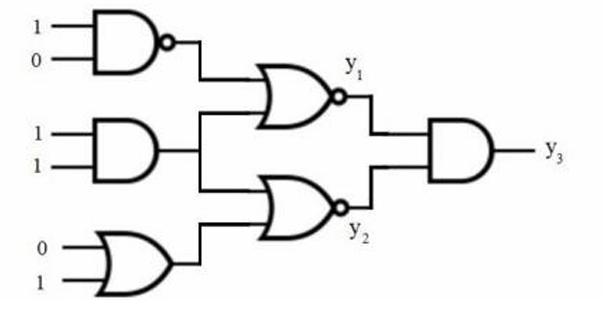

TS EAMCET 2023 Easy - Six logic gates are connected as shown in the figure. The values of \(y_1, y_2\) and \(y_3\) respectively are
