KCET · Physics · Semiconductors
The circuit given represents which of the logic operations?
- A OR
- B AND
- C NOT
- D NOR
Answer & Solution
Correct Answer
(B) AND
Step-by-step Solution
Detailed explanation
This diagram can be shown as
\(\begin{aligned}
Y &=\overline{\overline{A B}} \\
&=A B
\end{aligned}\)
\(\therefore\) Output represents logic operations of AND gate.
\(\begin{aligned}
Y &=\overline{\overline{A B}} \\
&=A B
\end{aligned}\)
\(\therefore\) Output represents logic operations of AND gate.
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Which of the following radiations is deflected by electric field ?KCET 2022 Easy
- Hydrogen atom from excited state comes to the ground stage by emitting a photon of wavelength \(\lambda\). If \(R\) is the Rydberg constant, the principal quantum number \(n\) of the excited state isKCET 2009 Medium
- A source of sound is moving with a velocity of \( 50 \mathrm{~ms}^{-1} \) towards a stationary observer. The observer measures the frequency of sound as \( 500 \mathrm{~Hz} \). The apparent frequency of sound as heard by the observer when source is moving away from him with the same speed is (Speed of sound at room temperature \( 350 \mathrm{~ms}^{-1} \))KCET 2016 Medium

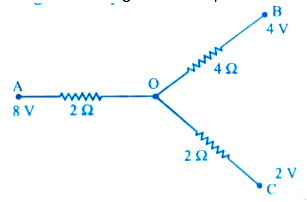

- In the following network potential at 'O'
