KCET · Physics · Current Electricity

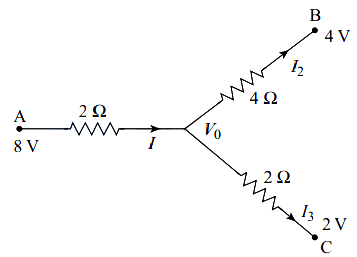

In the following network potential at 'O'
- A \( 4 \mathrm{~V} \)
- B \( 3 \mathrm{~V} \)
- C \( 6 \mathrm{~V} \)
- D \( 4.8 \mathrm{~V} \)
Answer & Solution
Correct Answer
(D) \( 4.8 \mathrm{~V} \)
Step-by-step Solution
Detailed explanation
According to Kirchhoff's law, we have
\( I_{1}+I_{2}+I_{3}=0 \)
By Ohm's law, we have \( \frac{8-V_{0}}{2}+\frac{4-V_{0}}{4}+\frac{2-V_{0}}{2}=0 \)
\( \Rightarrow \frac{2\left(8-V_{0}\right)+\left(4-V_{0}\right)+2\left(2-V_{0}\right)}{4}=0 \)
\( \Rightarrow 16-2 V_{0}+4-V_{0}+4-2 V_{0}=0 \)
\( \Rightarrow 24-5 V_{0}=0 \)
\( \Rightarrow V_{0}=\frac{24}{5}=4.8 \mathrm{~V} \)
Therefore, network potential at ' \( \mathrm{O} \) ' is \( 4.8 \mathrm{~V} \)
\( I_{1}+I_{2}+I_{3}=0 \)
By Ohm's law, we have \( \frac{8-V_{0}}{2}+\frac{4-V_{0}}{4}+\frac{2-V_{0}}{2}=0 \)
\( \Rightarrow \frac{2\left(8-V_{0}\right)+\left(4-V_{0}\right)+2\left(2-V_{0}\right)}{4}=0 \)
\( \Rightarrow 16-2 V_{0}+4-V_{0}+4-2 V_{0}=0 \)
\( \Rightarrow 24-5 V_{0}=0 \)
\( \Rightarrow V_{0}=\frac{24}{5}=4.8 \mathrm{~V} \)
Therefore, network potential at ' \( \mathrm{O} \) ' is \( 4.8 \mathrm{~V} \)
