How many \(6 \mu \mathrm{F}, 200 \mathrm{~V}\) condensers are needed to make a condenser of \(18 \mu \mathrm{F}, 600 \mathrm{~V}\) ?
- A 9
- B 18
- C 3
- D 27
Answer & Solution
Correct Answer
(D) 27
Step-by-step Solution
Detailed explanation
In series arrangement potential difference is the sum of the individual potential difference of each capacitor.
\(\mathrm{V} =\mathrm{V}_{1}+\mathrm{V}_{2}+\mathrm{V}_{3}+\ldots \)
\(600 =\mathrm{x} \times 200 \)
\(\mathrm{x} =3\)
So, there should be 3 capacitors in series to obtain the required potential difference.
The equivalent capacitance of the 3 capacitors in series is
\(\frac{1}{\mathrm{C}_{\mathrm{eq}}} =\frac{1}{6}+\frac{1}{6}+\frac{1}{6} \)
\(\mathrm{C}_{\mathrm{eq}} =2\)
Now, we require \(18 \mu \mathrm{F}\) capacitance, for this we need 9 such combinations in parallel. Hence, \(\quad 9 \times 3=27\)
\(\mathrm{V} =\mathrm{V}_{1}+\mathrm{V}_{2}+\mathrm{V}_{3}+\ldots \)
\(600 =\mathrm{x} \times 200 \)
\(\mathrm{x} =3\)
So, there should be 3 capacitors in series to obtain the required potential difference.
The equivalent capacitance of the 3 capacitors in series is
\(\frac{1}{\mathrm{C}_{\mathrm{eq}}} =\frac{1}{6}+\frac{1}{6}+\frac{1}{6} \)
\(\mathrm{C}_{\mathrm{eq}} =2\)
Now, we require \(18 \mu \mathrm{F}\) capacitance, for this we need 9 such combinations in parallel. Hence, \(\quad 9 \times 3=27\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Two resistors of resistances \( 2 \Omega \) and \( 6 \Omega \) are connected in parallel. This combination is then connected to a battery of emf \( 2 \mathrm{~V} \) and internal resistance \( 0.5 \Omega \). What is the current flowing through the battery?KCET 2014 Easy
- The charge deposited on \(4 \mu \mathrm{F}\) capacitor in the circuit is
KCET 2009 Hard - In the Wheatstone's network given, \(P=10 \Omega\), \(Q=20 \Omega, R=15 \Omega, S=30 \Omega\) the current have passing through the battery (of negligible internal resistance) is
KCET 2007 Medium - An equiconvex lens of radius of curvature 14 cm is made up of two different materials. Left half and right half of vertical portion is made up of material of refractive index 1.5 and 1.2 respectively as shown in the figure. If a point object is placed at a distance of 40 cm , calculate the image distance.

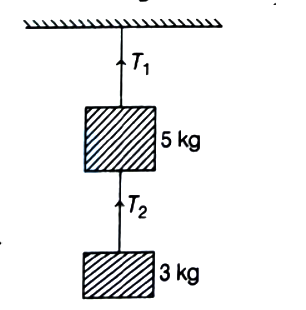

KCET 2024 Medium - Two masses of \(5 \mathrm{~kg}\) and \(3 \mathrm{~kg}\) are suspended with the help of massless inextensible strings as shown in figure below.
