Paragraph:

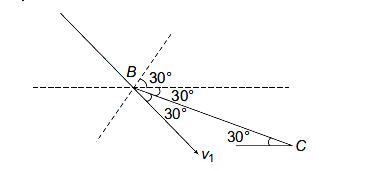

A small block of mass \(M\) moves on a frictionless surface of an inclined plane, as shown in figure. The angle of the incline suddenly changes from \(60^{\circ}\) to \(30^{\circ}\) at point \(B\). The block is initially at rest at \(A\). Assume that collisions between the block and the incline are totally inelastic \(\left(g=10 \mathrm{~m} / \mathrm{s}^2\right)\)

Question:
The speed of the block at point \(B\) immediately after it strikes the second incline is

Two particles, 1 and 2 , each of mass \(m\), are connected by a massless spring, and are on a horizontal frictionless plane, as shown in the figure. Initially, the two particles, with their center of mass at \(x_0\), are oscillating with amplitude \(a\) and angular frequency \(\omega\). Thus, their positions at time \(t\) are given by \(x_1(t)=\left(x_0+d\right)+a \sin \omega t\) and \(x_2(t)=\left(x_0-d\right)-a \sin \omega t\), respectively, where \(d>2 a\). Particle 3 of mass \(m\) moves towards this system with speed \(u_0=a \omega / 2\), and undergoes instantaneous elastic collision with particle 2 , at time \(t_0\). Finally, particles 1 and 2 acquire a center of mass speed \(v_{\mathrm{cm}}\) and oscillate with amplitude \(b\) and the same angular frequency \(\omega\).

If the collision occurs at time \(t_0=\pi /(2 \omega)\), then the value of \(4 b^2 / a^2\) will be ________ .

A solid sphere of radius \(R\) has moment of inertia \(J\) about its qeometrical axis. If it is melted into a disc of radius \(r\) and thickness \(t\). If its moment of inertia about the tangential axis (which is perpendicular to plane of the disc), is also equal to \(I\), then the value of \(r\) is equal to

A single slit diffraction experiment is performed to determine the slit width using the equation, \(\frac{b d}{D}=m \lambda\), where \(b\) is the slit width, \(D\) the shortest distance between the slit and the screen, \(d\) the distance between the \(m^{\text {th }}\) diffraction maximum and the central maximum, and \(\lambda\) is the wavelength. \(D\) and \(d\) are measured with scales of least count of 1 cm and 1 mm, respectively. The values of \(\lambda\) and \(m\) are known precisely to be 600 nm and 3, respectively. The maximum absolute error (in \(\mu \mathrm{m}\)) in the value of \(b\) estimated using the diffraction maximum that occurs for \(m=3\) with \(d=5 \mathrm{~mm}\) and \(D=1 \mathrm{~m}\) is ______.

Consider a system of three connected strings, \(S_1, S_2\) and \(S_3\) with uniform linear mass densities \(\mu \mathrm{kg} / \mathrm{m}\), \(4 \mu \mathrm{~kg} / \mathrm{m}\) and \(16 \mu \mathrm{~kg} / \mathrm{m}\), respectively, as shown in the figure. \(S_1\) and \(S_2\) are connected at the point \(P\), whereas \(S_2\) and \(S_3\) are connected at the point \(Q\), and the other end of \(S_3\) is connected to a wall. A wave generator O is connected to the free end of \(S_1\). The wave from the generator is represented by \(y=y_0\) \(\cos (\omega t-k x) \mathrm{cm}\), where \(y_0, \omega\) and \(k\) are constants of appropriate dimensions. Which of the following statements is/are correct:

A series \(R-C\) combination is connected to an \(\mathrm{AC}\) voltage of angular frequency \(\omega=500 \mathrm{rad} / \mathrm{s}\). If the impedance of the \(R-C\) circuit is \(R \sqrt{1.25}\), the time constant (in millisecond) of the circuit is

As shown in the figures, a uniform rod \(O O^{\prime}\) of length \(l\) is hinged at the point \(O\) and held in place vertically between two walls using two massless springs of same spring constant. The springs are connected at the midpoint and at the top-end \(\left(O^{\prime}\right)\) of the rod, as shown in Fig. 1 and the rod is made to oscillate by a small angular displacement. The frequency of oscillation of the rod is \(f_1\). On the other hand, if both the springs are connected at the midpoint of the rod, as shown in Fig. 2 and the rod is made to oscillate by a small angular displacement, then the frequency of oscillation is \(f_2\). Ignoring gravity and assuming motion only in the plane of the diagram, the value of \(\frac{f_1}{f_2}\) is:

Consider a helium $\left(\mathrm{He}\right)$ atom that absorbs a photon of wavelength $330 \mathrm{nm}$. The change in the velocity (in $\mathrm{cm} {\mathrm{s}}^{-1}$) of $\mathrm{He}$ atom after the photon absorption is ______ .
(Assume: Momentum is conserved when photon is absorbed.
Use: Planck constant $=6.6\times {10}^{-34} \mathrm{J} \mathrm{s}$, Avocados number $=6\times {10}^{23}{ \mathrm{mol}}^{-1}$, Molar mass of $\mathrm{He}=4 \mathrm{g}{ \mathrm{mol}}^{-1}$)

The centres of two circles \(C_1\) and \(C_2\) each of unit radius are at a distance of 6 units from each other. Let \(P\) be the mid-point of the line segment joining the centres of \(C_1\) and \(C_2\) and \(C\) be a circle touching circles \(C_1\) and \(C_2\) externally. If a common tangents to \(C_1\) and \(C\) passing through \(P\) is also a common tangent to \(C_2\) and \(C\), then the radius of the circle \(C\) is

What is the order of basicity among the following compounds?

If the unit cell of a mineral has cubic close packed (ccp) array of oxygen atoms with m fraction of octahedral holes occupied by aluminium ions and n fraction of tetrahedral holes occupied by magnesium ions, m and n, respectively, are

Considering the reaction sequence given below, the correct statement(s) is(are)

Consider the region \(R=\left\{(x, y) \in \mathbb{R} \times \mathbb{R}: x \geq 0\right.\) and \(\left.y^{2} \leq 4-x\right\}\). Let \(\mathcal{F}\) be the family of all circles that are contained in \(R\) and have centers on the \(x\)-axis. Let \(C\) be the circle that has largest radius among the circles in \(\mathcal{F}\). Let \((\alpha, \beta)\) be a point where the circle \(C\) meets the curve \(y^{2}=4-x\).
The value of $\alpha$ is _____.
