A circular disc with a groove along its diameter is placed horizontally. A block of mass \(1 \mathrm{~kg}\) is placed as shown. The coefficient of friction between the block and all surfaces of groove in contact is \(\mu=2 / 5\). The disc has an acceleration of \(25 \mathrm{~m} / \mathrm{s}^2\). Find the acceleration of the block with respect to disc.

A steady current $I$ flows along an infinitely long hollow cylindrical conductor of radius $R$. This cylinder is placed co-axially inside an infinite solenoid of radius $2R$. The solenoid has $n$ turns per unit length and carries a steady current $I$. Consider a point $P$ at a distance $r$ from the common axis. The correct statement(s) is(are):

The figure shows the \(p-V\) plot of an ideal gas taken through a cycle \(A B C D A\). The part \(A B C\) is a semi-circle and \(C D A\) is half of an ellipse. Then,

Paragraph :
A special metal \(S\) conducts electricity without any resistance. A closed wire loop, made of \(S\), does not allow any change in flux through itself by inducing a suitable current to generate a compensating flux. The induced current in the loop cannot decay due to its zero resistance. This current gives rise to a magnetic moment which in turn repels the source of magnetic field or flux. Consider such a loop, of radius \(a\), with its center at the origin. A magnetic dipole of moment \(m\) is brought along the axis of this loop from infinity to a point at distance \(r(\gg a)\) from the center of the loop with its north pole always facing the loop, as shown in the figure below.

The magnitude of magnetic field of a dipole \(m\), at a point on its axis at distance \(r\), is \(\frac{\mu_{0}}{2 \pi} \frac{m}{r^{3}}\), where \(\mu_{0}\) is the permeability of free space. The magnitude of the force between two magnetic dipoles with moments, \(m_{1}\) and \(m_{2}\), separated by a distance \(r\) on the common axis, with their north poles facing each other, is \(\frac{k m_{1} m_{2}}{r^{4}}\), where \(k\) is a constant of appropriate dimensions. The direction of this force is along the line joining the two dipoles.

Question :
The work done in bringing the dipole from infinity to a distance$r$from the centre of the loop by the given process is proportional to:

A block of mass ${\mathrm{m}}_1=1\mathrm{}\mathrm{k}\mathrm{g}$ another mass ${\mathrm{m}}_2=2\mathrm{}\mathrm{k}\mathrm{g}$ , are placed together (see figure) on an inclined plane with angle of inclination $\mathrm{\theta }$ . Various values of $\mathrm{\theta }$ are given in List I. The coefficient of friction between the block ${\mathrm{m}}_1$ and the plane is always zero. The coefficient of static and dynamic friction between the block ${\mathrm{m}}_2$ and the plane are equal to $\mathrm{\mu }=0.3$ . In List II expressions for the friction on the block ${\mathrm{m}}_2$ are given. Match the correct expression of the friction in List II with the angles given in List I, and choose the correct option. The acceleration due to gravity is denoted by g.
[Useful information: $\tan \left({5.5}^{\mathrm{o}}\right)\approx 0.1;\tan \left({11.5}^{\mathrm{o}}\right)\approx 0.2;\tan \left({16.5}^{\mathrm{o}}\right)\approx 0.3$ ]

	List I		List II
A.	$\mathrm{\theta }=5^{\mathrm{o}}$	$\mathrm{P}.$	${\mathrm{m}}_2\mathrm{g}\sin \mathrm{\theta }$
B.	$\mathrm{\theta }={10}^{\mathrm{o}}$	$\mathrm{Q}.$	$\left({\mathrm{m}}_1+{\mathrm{m}}_2\right)\mathrm{g}\sin \mathrm{\theta }$
C.	$\mathrm{\theta }={15}^{\mathrm{o}}$	$\mathrm{R}.$	$\mathrm{\mu }{\mathrm{m}}_2\mathrm{}\mathrm{g}\cos \mathrm{\theta }$
D.	$\mathrm{\theta }={20}^{\mathrm{o}}$	$\mathrm{S}.$	$\mathrm{\mu }\left({\mathrm{m}}_1+{\mathrm{m}}_2\right)\mathrm{g}\cos \mathrm{\theta }$

A physical quantity $\overrightarrow{S}$ is defined as $\overrightarrow{S}=\frac{\left(\overrightarrow{E}\times \overrightarrow{B}\right)}{{\mu }_0}$. where $\overrightarrow{E}$ is electric field, $\overrightarrow{B}$ is magnetic field and ${\mu }_0$ is the permeability of free space. The dimensions of $\overrightarrow{S}$ are the same as the dimensions of which of the following quantity/quantities?

Paragraph:

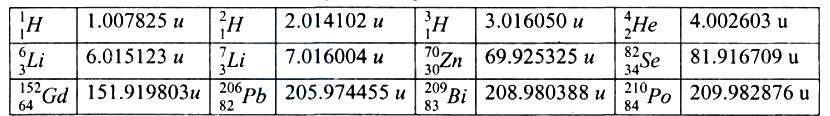

The mass of a nucleus \({ }_{Z}^{A} X\) is less than the sum of the masses of \((A-Z)\) number of neutrons and \(Z\) number of protons in the nucleus. The energy equivalent to the corresponding mass difference is known as the binding energy of the nucleus. A heavy nucleus of mass \(M\) can break into two light nuclei of masses \(m_{1}\) and \(m_{2}\) only if \(\left(m_{1}+m_{2}\right) \lt M\). Also two light nuclei of masses \(m_{3}\) and \(m_{4}\) can undergo complete fusion and form a heavy nucleus of mass \(M^{\prime}\) only if \(\left(m_{3}+m_{4}\right) \gt M^{\prime}\). The masses of some neutral atoms are given in the table below:


\(\left(1 u=932 M e V / c^{2}\right)\)

Question:
The kinetic energy (in \(k e V\) ) of the alpha particle, when the nucleus \({ }_{84}^{210} P o\) at rest undergoes alpha decay, is

Based on VSEPR theory, the number of 90 degree \(\mathrm{F}-\mathrm{Br}-\mathrm{F}\) angles in \(\mathrm{BrF}_5\) is

Let the straight line \(\mathrm{y}=2 \mathrm{x}\) touch a circle with center \((0, \alpha), \alpha>0\), and radius \(\mathrm{r}\) at a point \(\mathrm{A}_1\). Let \(\mathrm{B}_1\) be the point on the circle such that the line segment \(A_1 B_1\) is a diameter of the circle. Let \(\alpha+r=5+\sqrt{5}\).

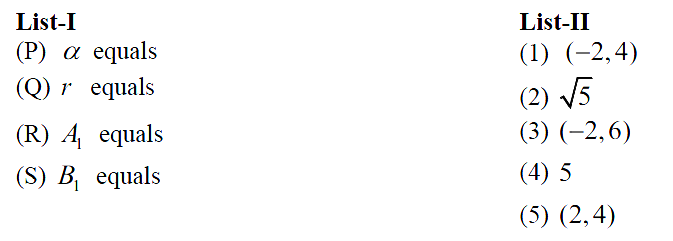

Match each entry in List-I to the correct entry in List-II.

The correct option is

Among \(\left[ Ni ( CO )_4\right],\left[ NiCl _4\right]^{2-},\left[ Co \left( NH _3\right)_4 Cl _2\right] Cl , Na _3\) \(\left[ CoF _6\right], Na _2 O _2\) and \(CsO _2\), the total number of paramagnetic compounds is

The mole fraction of urea in an aqueous urea solution containing $900\mathrm{ }\mathrm{g}$ of water is $0.05$ . If the density of the solution is $1.2\mathrm{ }\mathrm{g}\mathrm{ }{\mathrm{c}\mathrm{m}}^{-3}$ , the molarity of urea solution is _______
(Given data: Molar masses of urea and water are $60\mathrm{ }\mathrm{g}\mathrm{ }{\mathrm{m}\mathrm{o}\mathrm{l}}^{-1}$ and $18\mathrm{ }\mathrm{g}\mathrm{ }{\mathrm{m}\mathrm{o}\mathrm{l}}^{-1}$ , respectively)

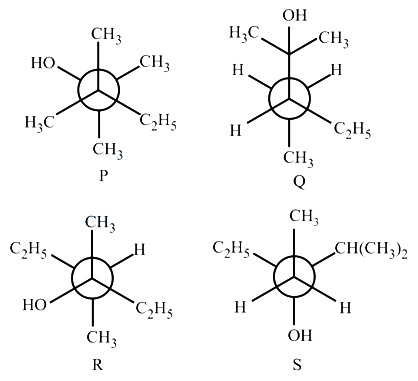

Newman projections $\mathrm{P},\mathrm{Q},\mathrm{R}$ and $\mathrm{S}$ are shown below:

Which one of the following options represent identical molecules?

Paragraph:

A box \(B_{1}\) contains \(1\) white ball, \(3\) red balls and \(2\) black balls. Another box \(B_{2}\) contains \(2\) white balls, \(3\) red balls and \(4\) black balls. A third box \(B_{3}\) contains \(3\) white balls, \(4\) red balls and \(5\) black balls.


Question:

If \(1\) ball is drawn from each of the boxes \(B_{1}, B_{2}\) and \(B_{3}\), the probability that all \(3\) drawn balls are of the same colour is
