JEE Advanced · Physics · 22. AC Circuits
A circuit with an electrical load having impedance \(Z\) is connected with an AC source as shown in the diagram. The source voltage varies in time as \(V(t)=300 \sin (400 t) \mathrm{V}\), where \(t\) is time in s. List-I shows various options for the load. The possible currents \(i(t)\) in the circuit as a function of time are given in List-II.
Choose the option that describes the correct match between the entries in List-I to those in List-II.
| List-I | List-II | ||
|---|---|---|---|
| \((P)\) |  | \((1)\) |  |
| \((Q)\) |  | \((2)\) |  |
| \((R)\) |  | \((3)\) |  |
| \((S)\) |  | \((4)\) |  |
| \((5)\) |  |
- A \(\mathrm{P} \rightarrow 3, \mathrm{Q} \rightarrow 5, \mathrm{R} \rightarrow 2, \mathrm{~S} \rightarrow 1\)
- B \(\mathrm{P} \rightarrow 1, \mathrm{Q} \rightarrow 5, \mathrm{R} \rightarrow 2, \mathrm{~S} \rightarrow 3\)
- C \(\mathrm{P} \rightarrow 3, \mathrm{Q} \rightarrow 4, \mathrm{R} \rightarrow 2, \mathrm{~S} \rightarrow 1\)
- D \(\mathrm{P} \rightarrow 1, \mathrm{Q} \rightarrow 4, \mathrm{R} \rightarrow 2, \mathrm{~S} \rightarrow 5\)
Answer & Solution
Correct Answer
(A) \(\mathrm{P} \rightarrow 3, \mathrm{Q} \rightarrow 5, \mathrm{R} \rightarrow 2, \mathrm{~S} \rightarrow 1\)
Step-by-step Solution
Detailed explanation
For P
\(i=\frac{V}{R}=10 \sin 400 t \Rightarrow(3)\)
For Q
\(X_L=\omega L=400 \times 100 \times 10^{-3}=40 \Omega \)
\( \therefore Z=50 \Omega \)
\(\therefore i=\frac{300}{50} \sin \left(400 t-53^{\circ}\right)\) \([\)current will lag by \(\tan ^{-1} \frac{X_L}{R}] \Rightarrow(5)\)
For R
\(\mathrm{X}_{\mathrm{C}}=\frac{10^6}{400 \times 50} \Omega=50 \Omega \text { and } \mathrm{X}_{\mathrm{L}}=400 \times 25 \times\) \(10^{-3}=10 \Omega \)
\( \therefore \mathrm{Z}=50 \Omega \)
\( \therefore \mathrm{i}=\frac{300}{50} \sin \left(400 \mathrm{t}+53^{\circ}\right) \quad\) \([\)Current will lead by \(\tan ^{-1} \frac{\mathrm{X}_{\mathrm{C}}-\mathrm{X}_{\mathrm{L}}}{\mathrm{R}}] \Rightarrow(2)\)
For \(S\)
\(\therefore \mathrm{i}=\frac{300}{60} \sin (400 \mathrm{t}) \quad \mathrm{X}_{\mathrm{L}}=\mathrm{X}_{\mathrm{C}} \Rightarrow\) Resonance \(\Rightarrow(1)\)
\(i=\frac{V}{R}=10 \sin 400 t \Rightarrow(3)\)
For Q
\(X_L=\omega L=400 \times 100 \times 10^{-3}=40 \Omega \)
\( \therefore Z=50 \Omega \)
\(\therefore i=\frac{300}{50} \sin \left(400 t-53^{\circ}\right)\) \([\)current will lag by \(\tan ^{-1} \frac{X_L}{R}] \Rightarrow(5)\)
For R
\(\mathrm{X}_{\mathrm{C}}=\frac{10^6}{400 \times 50} \Omega=50 \Omega \text { and } \mathrm{X}_{\mathrm{L}}=400 \times 25 \times\) \(10^{-3}=10 \Omega \)
\( \therefore \mathrm{Z}=50 \Omega \)
\( \therefore \mathrm{i}=\frac{300}{50} \sin \left(400 \mathrm{t}+53^{\circ}\right) \quad\) \([\)Current will lead by \(\tan ^{-1} \frac{\mathrm{X}_{\mathrm{C}}-\mathrm{X}_{\mathrm{L}}}{\mathrm{R}}] \Rightarrow(2)\)
For \(S\)
\(\therefore \mathrm{i}=\frac{300}{60} \sin (400 \mathrm{t}) \quad \mathrm{X}_{\mathrm{L}}=\mathrm{X}_{\mathrm{C}} \Rightarrow\) Resonance \(\Rightarrow(1)\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- One mole of a monatomic ideal gas is taken through a cycle \(A B C D A\) as shown in the \(p\)-V diagram. Column II gives the characteristics involved in the cycle. Match them with each of the processes given in Column I.
JEE Advanced 2011 Medium - In an experiment to determine the focal length \((f)\) of a concave mirror by the \(u-v\) method, a student places the object pin \(A\) on the principal axis at a distance \(x\) from the pole \(P\). The student looks at the pin and its inverted image from a distance keeping his/her eye in line with PA. When the student shifts his/her eye towards left, the image appears to the right of the object pin. ThenJEE Advanced 2007 Easy
- A lamina is made by removing a small disc of diameter \(2 R\) from a bigger disc of uniform mass density and radius \(2 R\), as shown in the figure. The moment of inertia of this lamina about axes passing though \(O\) and \(P\) is \(I_{O}\) and \(I_{P}\) respectively. Both these axes are perpendicular to the plane of the lamina. The ratio \(I_{P} / I_{O}\) to the nearest integer is

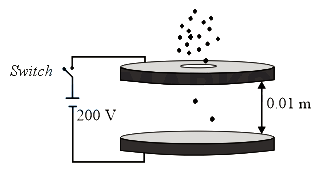

JEE Advanced 2012 Medium - Two large circular discs separated by a distance of are connected to a battery via a switch as shown in the figure. Charged oil drops of density are released through a tiny hole at the centre of the top disc. Once some oil drops achieve terminal velocity, the switch is closed to apply a voltage of across the discs. As a result, an oil drop of radius stops moving vertically and floats between the discs. The number of electrons present in this oil drop is __________. (neglect the buoyancy force, take acceleration due to gravity and charge on an electron (e) )
