WBJEE · Physics · Electrostatics
Consider two concentric conducting sphere of radii \(\mathrm{R}\) and \(2 \mathrm{R}\) respectively. The inner sphere is given a charge \(+\mathrm{Q}\). The other sphere is grounded. The potential at \(r=\frac{3 R}{2}\) is
- A \(\frac{1}{4 \pi \varepsilon_0} \frac{Q}{6 R}\)
- B 0
- C \(\frac{1}{4 \pi \varepsilon_0} \frac{2 Q}{3 R}\)
- D \(\frac{1}{4 \pi \varepsilon_0} \frac{Q}{R}\)
Answer & Solution
Correct Answer
(A) \(\frac{1}{4 \pi \varepsilon_0} \frac{Q}{6 R}\)
Step-by-step Solution
Detailed explanation
\(q \rightarrow\) Charge appearing on shell of radius \(2 R\) after earthing Calculating \(\mathrm{q} \quad \mathrm{V}_{\text {outer shell }}=\frac{\mathrm{KQ}}{2 \mathrm{R}}+\frac{\mathrm{Kq}}{2 \mathrm{R}}=0 \quad \mathrm{q}=-\mathrm{Q}\) Calculating potential at…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Two massless springs of force constants \(\mathrm{K}_1\) and \(\mathrm{K}_2\) are joined end to end. The resultant force constant \(\mathrm{K}\) of the system isWBJEE 2009 Easy
- Three capacitors of capacitance 1.0,2.0 and \(5.0 \mu \mathrm{F}\) are connected in series to a \(10 \mathrm{V}\) source. The potential difference across the \(2.0 \mu \mathrm{F}\) capacitor isWBJEE 2017 Medium
-
A parallel beam of light is incident on a glass prism in the shape of a quarter cylinder of radius \(R=0.05 \mathrm{m}\) and refractive index \(n=1.5,\) placed on a horizontal table as shown in the figure. Beyond the cylinder, a patch of light is found whose the nearest distance \(x\) from the cylinder isWBJEE 2017 Medium - Two weights of the mass \(m_{1}\) and \(m_{2}\left(>m_{1}\right)\) are joined by an inextensible string of negligible mass passing over a fixed frictionless pulley. The magnitude of the acceleration of the loads isWBJEE 2019 Medium
- A sphere of radius \(R\) has a volume density of charge \(\rho=k r,\) where \(r\) is the distance from the centre of the sphere and \(k\) is constant. The magnitude of the electric field which exists at the surface of the sphere is given by \(\left(\varepsilon_{0}=\right.\) permittivity of free space)WBJEE 2013 Hard
- Six vectors \(\vec{a}, \vec{b}, \vec{c}, \vec{d}, \vec{e}\) and \(\vec{f}\) have the magnitudes and directions indicated in the figure. Which of the following statements is true?
WBJEE 2025 Easy
More PYQs from WBJEE
- Let \(S_{n}=\cot ^{-1} 2+\cot ^{-1} 8+\cot ^{-1} 18+\cot ^{-1} 32+\ldots \ldots .\) to \(n^{\text {th }}\) term. Then \(\lim _{n \rightarrow \infty} S_{n}\) isWBJEE 2021 Easy
- Ozonolysis of o-xylene produces
WBJEE 2024 Hard - A bullet of mass \(4.2 \times 10^{-2} \mathrm{kg},\) moving at a speed of \(300 \mathrm{ms}^{-1}\), gets stuck into a block with a mass 9 times that of the bullet. If the block is free to move without any kind of friction, the heat generated in the process will beWBJEE 2017 Medium
- A progressive wave moving along \(x\) -axis is represented by \(y=A \sin \left[\frac{2 \pi}{\lambda}(v t-x)\right]\) The

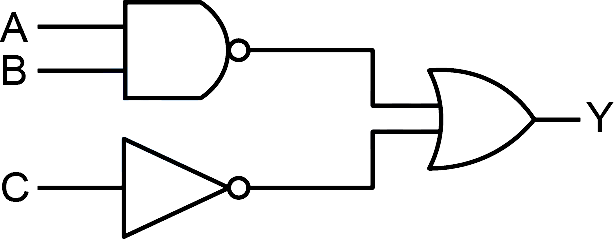

wavelength \((\lambda)\) at which the maximum particle velocity is 3 times the wave velocity isWBJEE 2012 Medium - The inputs to the digital circuit are as shown below. The output \(Y\) is
