WBJEE · Physics · Mechanical Properties of Fluids
A uniform capillary tube of length \(l\) and inner radius \(r\) with its upper end sealed is submerged vertically into water. The outside pressure is \(p_{0}\) and surface tension of water is \(\gamma\). When a length \(x\) of the capillary is submerged into water, it is found that water levels inside and outside the capillary coincide. The value of \(x\) is
- A \(\frac{l}{\left(1+\frac{p_{0} r}{4 \gamma}\right)}\)
- B \(l\left(1-\frac{p_{0} r}{4 \gamma}\right)\)
- C \(l\left(1-\frac{p_{0} r}{2 \gamma}\right)\)
- D \(\frac{l}{\left(1+\frac{p_{0} r}{2 \gamma}\right)}\)
Answer & Solution
Correct Answer
(D) \(\frac{l}{\left(1+\frac{p_{0} r}{2 \gamma}\right)}\)
Step-by-step Solution
Detailed explanation
When the sealed capillary tube is submerged vertically into water, the pressure inside the tube changes For the inside capillary, \[ p_{1} V_{1}=p_{2} v_{2} \] \(\therefore \quad P_{0}(l A)=p^{\prime}(l-x) A\) where \(p^{\prime}\) is pressure in capillary after being submerged…
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A train is moving along the tracks at a constant speed \(\mathrm{u}\). A girl on the train throws a ball of mass \(m\) straight ahead along the direction of motion of the train with speed \(v\) with respect to herself. ThenWBJEE 2023 Medium
- Two bodies of masses \(m_{1}\) and \(m_{2}\) are separated by a distance \(R\). The distance of the centre of mass of the bodies from the mass \(m_{1}\) isWBJEE 2016 Medium
-

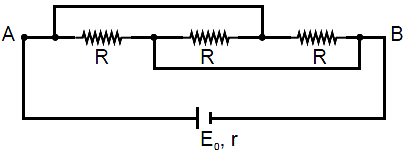

Consider a circuit where a cell of emf \(\mathrm{E}_0\) and internal resistance \(r\) is connected across the terminal \(A\) and \(B\) as shown in figure. The value of \(R\) for which the power generated in the circuit is maximum, is given byWBJEE 2024 Medium - The length of a metal wire is \(L_{1}\) when the tension is \(T_{1}\) and \(L_{2}\) when the tension is \(T_{2}\) The unstretched length of wire isWBJEE 2015 Medium
- Three vectors \(\mathbf{A}=a \mathbf{i}+\mathbf{j}+\mathbf{k} ; \mathbf{B}=\mathbf{i}+b \mathbf{j}+\mathbf{k}\)
and \(\mathbf{C}=\mathbf{i}+\mathbf{j}+c \mathbf{k}\) are mutually perpendicular (i, \(\mathbf{j}\) and \(\mathbf{k}\) are unit vectors along \(X, Y\) and \(Z\) axes respectively). The respective values of \(a\), \(b\) and \(c\) areWBJEE 2017 Medium -

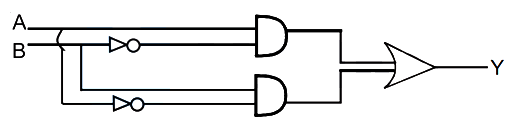

For the given logic circuit, the output \(Y\) for inputs \((A=0, B=1)\) and \((A=0, B=0)\) respectively areWBJEE 2021 Easy
