A galvanometer having internal resistance \(10 \Omega\) requires 0.01 A for a full scale deflection. To convert this galvanometer to a voltmeter of full-scale deflection at \(120 \mathrm{V}\), we need to connect a resistance of
- A \(11990 \Omega\) in series
- B \(11990 \Omega\) in parallel
- C \(12010 \Omega\) in series
- D \(12010 \Omega\) in parallel
Answer & Solution
Correct Answer
(A) \(11990 \Omega\) in series
Step-by-step Solution
Detailed explanation
Resistance \(R=\frac{V}{i_{g}}-G=\frac{120}{0.01}-10\) \[ \begin{aligned} &=12000-10 \\ R=11990 \Omega \end{aligned} \] To convert a galvanometer into a voltmeter, high resistance should connect in series.
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Consider a thermodynamic process where internal energy \(U=A P^2 \mathrm{~V}(\mathrm{~A}=\) constant). If the process is performed adiabatically, thenWBJEE 2022 Medium
- The line \(A A^{\prime}\) is on charged infinite \(A\) conducting plane which is perpendicular to the plane of the paper. The plane has a surface density of charge \(\sigma\) and \(B\) is ball of mass \(m\) with a like charge of magnitude \(q . B\) is connected by string from a point on the line \(A A^{\prime}\). The tangent of angle (0) formed between the line \(A A^{\prime}\) and the string is
WBJEE 2015 Hard - Eleven equal point charges, all of them having a charge \(+Q\), are placed at all the hour positions of a circular clock of radius \(r\). except at the \(10 \mathrm{h}\) position. What is the clectric field strength at the centre of the clock?WBJEE 2019 Medium
- Three blocks of masses 4 kg. 2 kg. 1 kg respectively are in contact on a frictionless table as shown in the figure. If a force of \(14 \mathrm{N}\) is applied on the 4 kg block, the contact force between the \(4 \mathrm{kg}\) and the \(2 \mathrm{kg}\) block will be
WBJEE 2012 Medium - In the circuit shown, what will be the current through the \(6 \mathrm{V}\) zener?
WBJEE 2019 Easy - If the energy, \(E=G^p h^q c^r\), where \(G\) is the universal gravitational constant, \(h\) is the Planck's constant and \(c\) is the velocity of light, then the values of \(p, q\) and \(r\) are, respectivelyWBJEE 2024 Hard
More PYQs from WBJEE
- Which of the set of oxides are arranged in the order of proper basic, amphoteric, acidic?WBJEE 2018 Easy
- The intermediate image formed by the objective of a compound microscope isWBJEE 2014 Hard
- The exact order of acidity of the compounds p-nitrophenol, acetic acid, acetylene and ethanol isWBJEE 2021 Medium

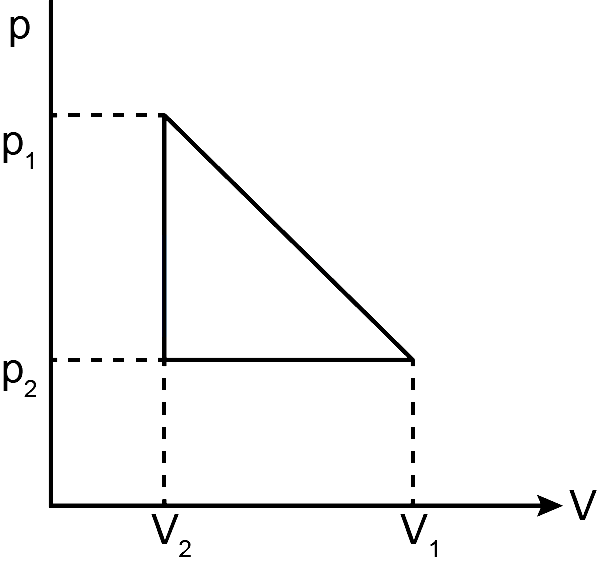

- One mole of a van der Waals' gas obeying the equation \(\left(p+\frac{a}{V^{2}}\right)(V-b)=R T\) undergoes the quasi-static cyclic process which is shown in the \(p \cdot V\) diagram. The net heat absorbed by the gas in this process is
