KCET · Physics · Motion In One Dimension
The displacement-time graph of two moving particles make angles of \(30^{\circ}\) and \(45^{\circ}\) with the \(X\)-axis. The ratio of their velocities is
- A \(\sqrt{3}: 2\)
- B \(1: 1\)
- C \(1: 2\)
- D \(1: \sqrt{3}\)
Answer & Solution
Correct Answer
(D) \(1: \sqrt{3}\)
Step-by-step Solution
Detailed explanation
By the definition, the slope of displacement-time graph is velocity.
i.e., \(\quad v=\tan \theta\)
\(\therefore \frac{v_{1}}{v_{2}}=\frac{\tan \theta_{1}}{\tan \theta_{2}}\)
\(\frac{v_{1}}{v_{2}}=\frac{\tan 30^{\circ}}{\tan 45^{\circ}}\)
\(\frac{v_{1}}{v_{2}}=\frac{1}{\sqrt{3}}\)
i.e., \(\quad v=\tan \theta\)
\(\therefore \frac{v_{1}}{v_{2}}=\frac{\tan \theta_{1}}{\tan \theta_{2}}\)
\(\frac{v_{1}}{v_{2}}=\frac{\tan 30^{\circ}}{\tan 45^{\circ}}\)
\(\frac{v_{1}}{v_{2}}=\frac{1}{\sqrt{3}}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- In the figure shown, the conductor PQ of length \(l\) is moved from \(x = 0\) to \(x = b\) and then up to \(x = 2b\) with a constant velocity \(\vec{v}\). A uniform magnetic field \(\vec{B}\) is perpendicular to the plane of the paper and extends from \(x = 0\) to \(x = b\) and it is zero from \(x > b\). The magnitude of emf Induced in the conductor is
KCET 2026 Easy - Two equal and opposite charges of masses \( \mathrm{m}_{1} \) and \( \mathrm{m}_{2} \) are accelerated in an uniform electric field through the same distance. What is the ratio of their accelerations if their mi ratio of masses is \( \frac{\mathrm{m}_{1}}{\mathrm{~m}_{2}}=0.5 \) ?KCET 2014 Medium
- A tuned amplifier circuit is used to generate a carrier frequency of \( 2 \mathrm{MHz} \) for the amplitude modulation. The value of \( \sqrt{\mathrm{LC}} \) isKCET 2014 Medium
- An ideal gas is taken path as shown in figure. The net work done in the whole cycle is
KCET 2008 Medium - In an experiment to study photoelectric effect the observed variation of stopping potential with frequency of incident radiation is as shown in the figure. The slope and \(y\)-intercept are respectively
KCET 2023 Easy - A charge \(+Q\) is moving upwards vertically. It enters a magnetic field directed to north. The force on the charge will be towardsKCET 2010 Easy
More PYQs from KCET
- If ' \(a\) ' and ' \(b\) ' are the order and degree respectively of the differentiable equation. \(\left(\frac{d^2 y}{d x^2}\right)^2+\left(\frac{d y}{d x}\right)^3+x^4=0\), then \(a-b=\)KCET 2025 Easy
- A particle is in uniform circular motion, related to one complete revolution of the particle, which among the statements is incorrect?KCET 2023 Easy
- The number of naturally occurring \(p\)-block elements that are diamagnetic isKCET 2011 Easy

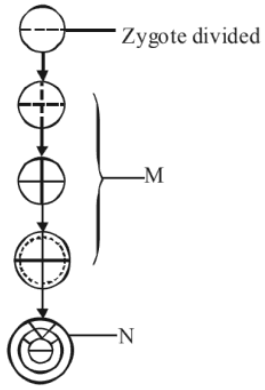

- In the following diagrammatic representation showing stages of embryonic development, identify the type of growth phase labelled as M and N.
