KCET · Physics · Current Electricity
In the circuit shown, the currents \(i_{1}\) and \(i_{2}\) are
- A \(i_{1}=1.5 \mathrm{~A}, i_{2}=0.5 \mathrm{~A}\)
- B \(i_{1}=0.5 \mathrm{~A}, i_{2}=1.5 \mathrm{~A}\)
- C \(i_{1}=1 \mathrm{~A}, i_{2}=3 \mathrm{~A}\)
- D \(i_{1}=3 \mathrm{~A}, i_{2}=1 \mathrm{~A}\)
Answer & Solution
Correct Answer
(B) \(i_{1}=0.5 \mathrm{~A}, i_{2}=1.5 \mathrm{~A}\)
Step-by-step Solution
Detailed explanation
Resistance \(R=\frac{12 \times 4}{12+4}+2=\frac{48}{16}+2=5 \Omega\) Electric current \(I=\frac{E}{R+r}=\frac{12}{6}=2 \mathrm{~A}\)
\(I_{1}+I_{2}=2 \mathrm{~A} \)
\(I \propto \frac{1}{R} \)
\(\therefore I_{2}=1.5 \mathrm{~A}, I_{1}=0.5 \mathrm{~A}\)
\(I_{1}+I_{2}=2 \mathrm{~A} \)
\(I \propto \frac{1}{R} \)
\(\therefore I_{2}=1.5 \mathrm{~A}, I_{1}=0.5 \mathrm{~A}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- When the angle of incidence is \(60^{\circ}\) on the surface of a glass slab, it is found that the reflected ray is completely polarised. The velocity of light in glass isKCET 2007 Medium
- The angle between velocity and acceleration of a particle describing uniform circular motion isKCET 2017 Easy
- An electron falls through a distance \(1.5\) cm in \(2.0 \times 10^4\) N/C from rest. The time taken to cover this distance in second is ____
\((e = 1.6 \times 10^{-19}\text{ C}, m_e = 9.11 \times 10^{-31}\text{ kg})\)KCET 2026 Medium - Consider an electrical conductor connected across a potential difference \(V\). Let \(\Delta q\) be a small charge moving through it in time \(\Delta t\). If \(I\) is the electric current through it,
I. the kinetic energy of the charge increases by \(I V \Delta t\).
II. the electric potential energy of the charge decreases by \(I V \Delta t\).
III. the thermal energy of the conductor increases by IV \(\Delta t\).
Choose the correct option.KCET 2021 Easy - Ten identical cells each emf \(2 \mathrm{~V}\) and internal resistance \(1 \Omega\) are connected in series with two cells wrongly connected. A resistor of \(10 \Omega\) is connected to the combination. What is the current through the resistor?KCET 2023 Medium
- A radio-active elements has half-life of 15 years. What is the fraction that will decay in 30 years?KCET 2020 Medium
More PYQs from KCET
- Some important events in the human female reproductive cycle are given below. Arrange the events in a proper sequence. A → secretion of FSH, B → growth of corpus luteum. C → growth of the follicle and oogenesis, D → ovulation, E → sudden increase in the level lof LH.KCET 2009 Hard

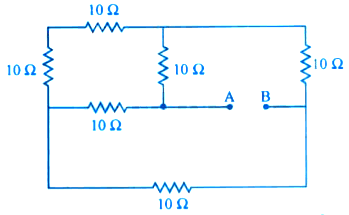

- Effective resistance between \( A \) and \( B \) in the following circuit

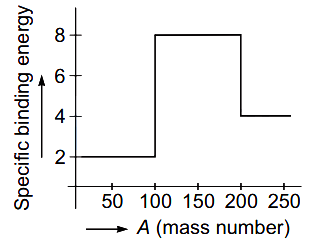

KCET 2016 Hard - Assume the graph of specific binding energy versus mass number is as shown in the figure. Using this graph, select the correct choice from the following.
