Two cells of emf \(2\, E\) and \(E\) with internal resistance \(r _{1}\) and \(r _{2}\) respectively are connected in series to an external resistor \(R\) (see \(figure\)). The value of \(R ,\) at which the potential difference across the terminals of the first cell becomes zero is
- A \(r _{1}+ r _{2}\)
- B \(\frac{ r _{1}}{2}- r _{2}\)
- C \(\frac{ r _{1}}{2}+ r _{2}\)
- D \(r _{1}- r _{2}\)
Answer & Solution
Correct Answer
(B) \(\frac{ r _{1}}{2}- r _{2}\)
Step-by-step Solution
Detailed explanation
\(i =\frac{3 E }{ R + r _{1}+ r _{2}}\) \(TPD =2 E - ir _{1}=0\) \(2 E = ir _{1}\) \(2 E =\frac{3 E \times r _{1}}{ R + r _{1}+ r _{2}}\) \(2 R +2 r _{1}+2 r _{2}=3 r _{1}\) \(R =\frac{ r _{1}}{2}- r _{2}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- A solid sphere of mass \(M\) and radius \(R\) is divided into two unequal parts. The first part has a mass of \(\frac {7M}{8}\) and is converted into a uniform disc of radius \(2R.\) The second part is converted into a uniform solid sphere. Let \(I_1\) be the moment of inertia of the disc about its axis and \(I_2\) be the moment of inertia of the new sphere about its axis. The ratio of \(I_1/I_2\) is given byJEE Mains 2019 Hard
- Let \(\vec A\, = \,(\hat i\, + \,\hat j)\,\) and \(\vec B\, = \,(2\hat i\, - \,\hat j)\,.\) The magnitude of a coplanar vector \(\vec C\) such that \(\vec A\cdot \vec C\, = \,\vec B\cdot \vec C\, = \vec A\cdot \vec B\) is given byJEE Mains 2018 Hard
- In normal adjustment, for a refracting telescope, the distance between objective and eye piece is \(30\,cm\). The focal length of the objective, when the angular magnification of the telescope is \(2\) , will be \(.....cm\)JEE Mains 2022 Medium
- A block of mass \(0.1\, kg\) is connected to an elastic spring of spring constant \(640\, Nm^{-1}\) and oscillates in a damping medium of damping constant \(10^{-2}\, kg\,s^{-1}\) . The system dissipates its energy gradually. The time taken for its mechanical energy of vibration to drop to half of its initial value, is closest to ..... \(s\)JEE Mains 2017 Hard
- A diode has Zener voltage of \(10\) V and maximum power dissipation of \(0.5\) W, then the minimum resistance to be used in series with this diode for safety when it is connected to a \(25\) V power supply is ______ \(\Omega\).JEE Mains 2026 Easy

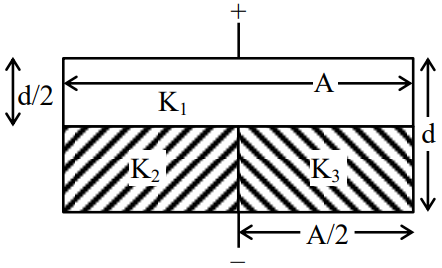

- The space between the plates of a parallel-plate capacitor of capacitance C (without any dielectric) is now filled with three dielectric slabs of dielectric constants \(K _1=2, K_2=3\), and \(K _3=5\) (as shown in the figure). If new capacitance is \(\frac{ n }{3} C\) then the value of \(n\) is ___________.
