JEE Mains · Physics · STD 12 - 4. Moving charges and magnetism
Let \(B_1\) be the magnitude of magnetic field at center of a circular coil of radius \(R\) carrying current \(I\). Let \(B_2\) be the magnitude of magnetic field at an axial distance ' \(x\) ' from the center. For \(x: R=3: 4, \frac{B_2}{B_1}\) is :
- A \(4: 5\)
- B \(16: 25\)
- C \(64: 125\)
- D \(25: 16\)
Answer & Solution
Correct Answer
(C) \(64: 125\)
Step-by-step Solution
Detailed explanation
\(\begin{aligned} & \mathrm{B}_1=\frac{\mu_0 \mathrm{i}}{2 \mathrm{R}} \qquad \mathrm{B}_2=\mathrm{B}_1 \sin ^3 \theta \\ & \therefore \frac{\mathrm{~B}_2}{\mathrm{~B}_1}=\sin ^3 \theta=\left(\frac{4}{5}\right)^3=\frac{64}{125}\end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Two circular discs of radius each 10 cm are joined at their centres by a rod of length 30 cm and mass 600 gm as shown in figure.
If the mass of each disc is 600 gm and applied torque between two discs is \(43 \times 10^{5}\) dyne cm, the angular acceleration of the discs about the given axis \(AB\) is ___________\(rad/s^{2}\).
JEE Mains 2026 Hard - Inductance of a coil with \(10^4\) turns is 10 mH and it is connected to a dc source of 10 V with internal resistance of \(10 \Omega\). The energy density in the inductor when the current reaches \(\left(\frac{1}{ e }\right)\) of its maximum value is \(\alpha \pi \times \frac{1}{ e ^2} J / m ^3\). The value of \(\alpha\) is __________ . \(\left(\mu_0=4 \pi \times 10^{-7} Tm / A \right)\).JEE Mains 2026 Easy

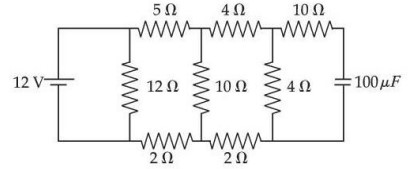

- The stored charge in the capacitor in steady state of the following circuit is ________ \(\mu\)C.
