JEE Mains · Physics · STD 11 - 14. waves and sound
A tuning fork is vibrating at \(250\, {Hz}\). The length of the shortest closed organ pipe that will resonate with the tuning fork will be ..... \({cm}\) (Take speed of sound in air as \(340\, {ms}^{-1}\) )
- A \(340\)
- B \(34\)
- C \(17\)
- D \(3.4\)
Answer & Solution
Correct Answer
(B) \(34\)
Step-by-step Solution
Detailed explanation
\(\frac{\lambda}{4}=\ell \Rightarrow \lambda=4 \ell\) \({f}=\frac{{V}}{\lambda}=\frac{{V}}{4 \ell}\) \(\Rightarrow 250=\frac{340}{4 \ell}\) \(\Rightarrow \ell=\frac{34}{4 \times 25}=0.34\, {m}\) \(\ell=34\, {cm}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Paramagnetic substances: \(A\). align themselves along the directions of external magnetic field. \(B\). attract strongly towards external magnetic field. \(C\). has susceptibility little more than zero. \(D\). move from a region of strong magnetic field to weak magnetic field. Choose the most appropriate answer from the options given below:JEE Mains 2024 Hard

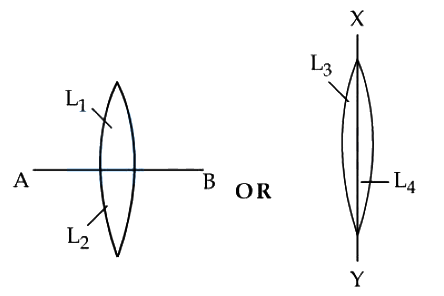

- Two identical symmetric double convex lenses of focal length \(f\) are cut into two equal parts \(L_1, L_2\) by \(A B\) plane and \(L_3, L_4\) by \(X Y\) plane as shown in figure respectively. The ratio of focal lengths of lenses \(L_1\) and \(L_3\) is ________.
JEE Mains 2025 Medium - A block of mass \(m\) attached to massless spring is performing oscillatory motion of amplitude \('A'\) on a frictionless horizontal plane. If half of the mass of the block breaks off when it is passing through its equilibrium point, the amplitude of oscillation for the remaining system become \(fA.\) The value of \(f\) isJEE Mains 2020 Medium
- A photon is emitted in transition from \(n =4\) to \(n =1\) level in hydrogen atom. The corresponding wavelength for this transition is \(.........\,nm\) \(\text { (given, } h =4 \times 10^{-15} eVs \text { ) : }\)JEE Mains 2023 Medium
- A prism of refractive index \(n_{1}\) and another prism of refractive index \(n_{2}\) are stuck together (as shown in the figure). \(n_{1}\) and \(n_{2}\) depend on \(\lambda\), the wavelength of light, according to the relation \({n}_{1}=1.2+\frac{10.8 \times 10^{-14}}{\lambda^{2}} \text { and } {n}_{2}=1.45+\frac{1.8 \times 10^{-14}}{\lambda^{2}}\) The wavelength for which rays incident at any angle on the interface \(B C\) pass through without bending at that interface will be \(....\,nm.\)
JEE Mains 2021 Hard - A bob of mass \(m\) attached to an inextensible string of length \(l\) is suspended from a vertical support. The bob rotates in a horizontal circle with an angular speed \(\omega\ rad/s\) about the vertical. About the point of suspension:JEE Mains 2014 Easy
More PYQs from JEE Mains
- Electric potential at a point \(P\) due to a point charge of \(5 \times 10^{-9}\; C\) is \(50 \;V\). The distance of \(P\) from the point charge is ......... \(cm\) (Assume, \(\frac{1}{4 \pi \varepsilon_0}=9 \times 10^{+9}\; Nm ^2 C ^{-2}\))JEE Mains 2023 Easy
- If \(\frac{1}{(20-a)(40-a)}+\frac{1}{(40-a)(60-a)}+\ldots \ldots+\) \(\frac{1}{(180-a)(200-a)}=\frac{1}{256}\), then the maximum value of \(a\) is.JEE Mains 2022 Medium
- A container contains a liquid with refractive index of 1.2 up to a height of 60 cm and another liquid having refractive index 1.6 is added to height H above first liquid. If viewed from above, the apparent shift in the position of bottom of container is 40 cm. The value of H is ______ cm.
(Consider liquids are immisible)JEE Mains 2025 Medium - A solid cylinder and a solid sphere, having same mass \(M\) and radius \(R\), roll down the same inclined plane from top without slipping. They start from rest. The ratio of velocity of the solid cylinder to that of the solid sphere, with which they reach the ground, will be.JEE Mains 2022 Medium
- The vernier constant of Vernier callipers is \(0.1 \,mm\) and it has zero error of \((-0.05) \,cm\). While measuring diameter of a sphere, the main scale reading is \(1.7 \,cm\) and coinciding vernier division is \(5\). The corrected diameter will be ........... \(\times 10^{-2} \,cm\)JEE Mains 2022 Medium
- For three low density gases \(A, B, C\) pressure versus temperature graphs are plotted while keeping them at constant volume, as shown in the figure. The temperature corresponding to the point ' \(K\) ' is \(...........\,{}^{\circ}\,C\)
JEE Mains 2023 Medium
