JEE Mains · Physics · STD 11 - 10.1, thermonetry,thermal expansion and calorimetry
A steel rod with \({y}=2.0 \times 10^{11} \,{Nm}^{-2}\) and \(\alpha=10^{-5}{ }^{\circ} {C}^{-1}\) of length \(4\, {m}\) and area of cross-section \(10\, {cm}^{2}\) is heated from \(0^{\circ} {C}\) to \(400^{\circ} {C}\) without being allowed to extend. The tension produced in the rod is \({x} \times 10^{5} \, {N}\) where the value of \({x}\) is ....... .
- A \(8\)
- B \(80\)
- C \(0.8\)
- D \(85\)
Answer & Solution
Correct Answer
(A) \(8\)
Step-by-step Solution
Detailed explanation
Thermal force \({F}={Ay}\alpha \Delta {T}\) \(F=\left(10 \times 10^{-4}\right)\left(2 \times 10^{11}\right)\left(10^{-5}\right)(400)\) \(F=8 \times 10^{5} {N}\) \(\Rightarrow {x}=8\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- An electric toaster has resistance of \(60\ \Omega\) at room temperature \(\left(27^{\circ} \mathrm{C}\right)\). The toaster is connected to a \(220 \mathrm{~V}\) supply. If the current flowing through it reaches \(2.75 \mathrm{~A}\), the temperature attained by toaster is around _______. (if \(\alpha=2 \times 10^{-4} /{ }^{\circ} \mathrm{C}\) )JEE Mains 2024 Hard
- A fringe width of \(\,6 mm\) was produced for two slits separated by \(1\, mm\) apart. The screen is placed \(10\, m\) away. The wavelength of light used is \('x'\, nm.\) The value of \('x'\) to the nearest integer isJEE Mains 2021 Medium
- A thin disc of radius \(b = 2a\) has a concentric hole of radius \('a'\) in it (see figure). It carries uniform surface charge \('\sigma '\) on it. If the electric field on its axis at height \('h'\) \((h << a)\) from its centre is given as \('Ch'\) then value of \('C'\) is
JEE Mains 2015 Hard - In a screw gauge, \(5\) complete rotations of the screw cause it to move a linear distance of \(0.25\, cm\). There are \(100\) circular scale divisions. The thickness of a wire measured by this screw gauge gives a reading of \(4\) main scale divisions and \(30\) circular scale divisions . Assuming negligible zero error, the thickness of the wire isJEE Mains 2018 Medium
- The volume \(V\) of a given mass of monoatomic gas changes with temperature \(T\) according to the relation \(V = KT ^{2 / 3}\). The workdone when temperature changes by \(90\, K\) will be \(x\,R\). The value of \(x\) is \([ R =\) universal gas constant \(]\)JEE Mains 2021 Hard
- Two identical metallic spheres \(A\) and \(B\) when placed at certain distance in air repel each other with a force of \(F\). Another identical uncharged sphere \(C\) is first placed in contact with \(A\) and then in contact with \(B\) and finally placed at midpoint between spheres \(A\) and \(B\). The force experienced by sphere \(C\) will be.JEE Mains 2022 Medium
More PYQs from JEE Mains
- Let \(\vec{a}=\hat{i}+\hat{j}-\hat{k}\) and \(\vec{c}=2 \hat{i}-3 \hat{j}+2 \hat{k}\). Then the number of vectors \(\vec{b}\) such that \(\vec{b} \times \vec{c}=\vec{a}\) and \(|\vec{b}| \in\{1,2, \ldots ., 10\}\) isJEE Mains 2022 Medium
- A square loop of side \(2\) cm is placed in a time varying magnetic field with magnitude as \(B = 0.4\sin(300t)\) Tesla. The normal to the plane of loop makes an angle of \(60°\) with the field. The maximum induced emf produced in the loop is __________ mV.JEE Mains 2026 Hard
- The gap between the plates of a parallel plate capacitor of area \(A\) and distance between plates \(d\), is filled with a dielectric whose permittivity varies linearly from \({ \varepsilon _1}\) at one plate to \({ \varepsilon _2}\) at the other. The capacitance of capacitor isJEE Mains 2014 Hard
- The value of the integral \(\displaystyle\int_{0}^{2} \dfrac{\sqrt{x(x^2+x+1)}}{(\sqrt{x+1})(\sqrt{x^4+x^2+1})} \, dx\) is equal to:JEE Mains 2026 Hard

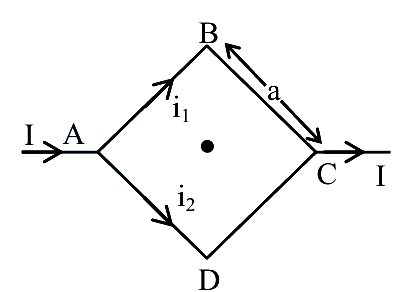

- Figure shows a current carrying square loop ABCD of edge length is ' \(a\) ' lying in a plane. If the resistance of the \(A B C\) part is \(r\) and that of \(A D C\) part is 2 r , then the magnitude of the resultant magnetic field at centre of the square loop is
