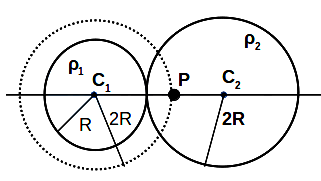

Two non-conducting solid spheres of radii $R$ and $2R$, having uniform volume charge densities ${\rho }_1$ and ${\rho }_2$, respectively, touch each other. The net electric field at a distance $2R$ from the centre of the smaller sphere, along the line joining the centres of the spheres, is zero. The ratio $\frac{{\rho }_1}{{\rho }_2}$ can be

In the balanced condition, the values of the resistances of the four arms of a Wheatstone bridge are shown in the figure below. The resistance $R_3$ has temperature coefficient $0.0004°{\mathrm{C}}^{-1}$. If the temperature of $R_3$ is increased by $100°\mathrm{C},$ the voltage developed between $S$ and $T$ will be __________ volt.

A satellite is moving with a constant speed \(v\) in a circular orbit about the earth. An object of mass \(m\) is ejected from the satellite such that it just escapes from the gravitational pull of the earth. At the time of its ejection, the kinetic energy of the object is

Two small particles of equal masses start moving in opposite directions from a point \(A\) in a horizontal circular orbit. Their tangential velocities are \(v\) and \(2 v\) respectively, as shown in the figure. Between collisions, the particles move with constant speeds. After making how many elastic collisions, other than that at \(A\), these two particles will again reach the point \(A\) ?

The figure shows a circuit having eight resistances of $1 \mathrm{\Omega }$ each, labelled $R_1$ to $R_8$, and two ideal batteries with voltages ${\epsilon }_1=12 \mathrm{V}$ and ${\epsilon }_2=6 \mathrm{V}$.

Which of the following statement(s) is(are) correct?

In an $X$-ray tube, electrons emitted from a filament (cathode) carrying current $I$ hit a target (anode) at a distance $d$ from the cathode. The target is kept at a potential $V$ higher than the cathode resulting in emission of continuous and characteristic X-rays. If the filament current $I$ is decreased to $\frac{I}{2},$ the potential difference $V$ is increased to $2V,$ and the separation distance $d$ is reduced to $\frac{d}{2},$ then

A student skates up a ramp that makes an angle $30°$ with the horizontal. He/she starts (as shown in the figure) at the bottom of the ramp with speed $v_0$ and wants to turn around over a semicircular path $xyz$ of radius $R$ during which he/she reaches a maximum height $h$ (at point $y$) from the ground as shown in the figure. Assume that the energy loss is negligible and the force required for this turn at the highest point is provided by his/her weight only. Then ($g$ is the acceleration due to gravity)

Paragraph :
A special metal \(S\) conducts electricity without any resistance. A closed wire loop, made of \(S\), does not allow any change in flux through itself by inducing a suitable current to generate a compensating flux. The induced current in the loop cannot decay due to its zero resistance. This current gives rise to a magnetic moment which in turn repels the source of magnetic field or flux. Consider such a loop, of radius \(a\), with its center at the origin. A magnetic dipole of moment \(m\) is brought along the axis of this loop from infinity to a point at distance \(r(\gg a)\) from the center of the loop with its north pole always facing the loop, as shown in the figure below.

The magnitude of magnetic field of a dipole \(m\), at a point on its axis at distance \(r\), is \(\frac{\mu_{0}}{2 \pi} \frac{m}{r^{3}}\), where \(\mu_{0}\) is the permeability of free space. The magnitude of the force between two magnetic dipoles with moments, \(m_{1}\) and \(m_{2}\), separated by a distance \(r\) on the common axis, with their north poles facing each other, is \(\frac{k m_{1} m_{2}}{r^{4}}\), where \(k\) is a constant of appropriate dimensions. The direction of this force is along the line joining the two dipoles.

Question :
The work done in bringing the dipole from infinity to a distance$r$from the centre of the loop by the given process is proportional to:

For the resistance network shown in the figure, choose the correct option(s)

A closed tank has two compartments A and B, both filled with oxygen (assumed to be ideal gas). The partition separating the two compartments is fixed and is a perfect heat insulator (Figure$1$). If the old partition is replaced by a new partition which can slide and conduct heat but does not allow the gas to leak across (Figure $2$), the volume (in ${\mathrm{m}}^3$) of the compartment A after the system attains equilibrium is _________.

One mole of a monatomic ideal gas is taken through a cycle \(A B C D A\) as shown in the \(p\)-V diagram. Column II gives the characteristics involved in the cycle. Match them with each of the processes given in Column I.

An electron in an excited state of $\mathrm{L}{\mathrm{i}}^{2+}$ ion has angular momentum $\frac{3\mathrm{h}}{2\mathrm{\pi }}$ . The de Broglie wavelength of the electron in this state is $\mathrm{p}\mathrm{\pi }{\mathrm{\alpha }}_0$ (where ${\mathrm{a}}_0$ is the Bohr radius). The value of $\mathrm{p}$ is

Charges Q, 2Q and 4Q are uniformly distributed in three dielectric solid spheres 1, 2 and 3 of radii R/2, R and 2R respectively, as shown in the figure. If magnitudes of the electric fields at point P at a distance R from the centre of spheres 1, 2 and 3 are ${\mathrm{E}}_1,\mathrm{}\mathrm{}{\mathrm{E}}_2$ and ${\mathrm{E}}_3$ respectively, then
