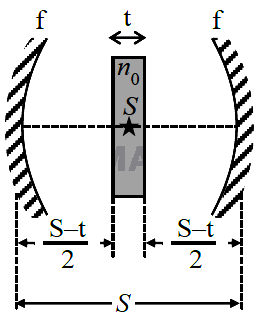

Two identical concave mirrors each of focal length \(f\) are facing each other as shown in the schematic diagram. The focal length \(f\) is much larger than the size of the mirrors. A glass slab of thickness \(t\) and refractive index \(n_0\) is kept equidistant from the mirrors and perpendicular to their common principal axis. A monochromatic point light source \(S\) is embedded at the center of the slab on the principal axis, as shown in the schematic diagram. For the image to be formed on \(S\) itself, which of the following distances between the two mirrors is/are correct:

A ball of mass \((m) 0.5 \mathrm{~kg}\) is attached to the end of a string having length \((L) 0.5 \mathrm{~m}\). The ball is rotated on a horizontal circular path about vertical axis. The maximum tension that the string can bear is \(324 \mathrm{~N}\). The maximum possible value of angular velocity of ball (in rad/s) is

Two large, identical water tanks, 1 and 2, kept on the top of a building of height \(H\), are filled with water up to height \(h\) in each tank. Both the tanks contain an identical hole of small radius on their sides, close to their bottom. A pipe of the same internal radius as that of the hole is connected to tank 2 , and the pipe ends at the ground level. When the water flows from the tanks 1 and 2 through the holes, the times taken to empty the tanks are \(t_1\) and \(t_2\), respectively. If \(H=\left(\frac{16}{9}\right) h\), then the ratio \(t_1 / t_2\) is _______ .

A ball is thrown from ground at an angle $\mathrm{\theta }$ with horizontal and with an initial speed ${\mathrm{u}}_0.$ For the resulting projectile motion, the magnitude of average velocity of the ball up to the point when it hits the ground for the first time is ${\mathrm{V}}_1.$ After hitting the ground, ball rebounds at the same angle $\mathrm{\theta }$ but with a reduced speed of $\frac{{\mathrm{u}}_0}{\mathrm{\alpha }}.$ Its motion continues for a long time as shown in figure. If the magnitude of average velocity of the ball for entire duration of motion is $0.8{\mathrm{V}}_1,$ the value of $\mathrm{\alpha }$ is______

Paragraph :
A uniform thin cylindrical disk of mass \(M\) and radius \(R\) is attached to two identical massless springs of spring constant \(k\) which are fixed to the wall as shown in the figure. The springs are attached to the axle of the disk symmetrically on either side at a distance \(d\) from its centre. The axle is massless and both the springs and the axle are in a horizontal plane. The unstretched length of each spring is \(L\). The disk is initially at its equilibrium position with its centre of mass \((C M)\) at a distance Lfrom the wall. The disk rolls without slipping with velocity \(\mathbf{v}_0=v_0 \hat{\mathbf{i}}\) The coefficient of friction is \(\mu\).
1
Question :
The centre of mass of the disk undergoes simple harmonic motion with angular frequency \(\omega\) equal to

A length - scale $\left(\mathcal{l}\right)$ depends on the permittivity $\left(\mathrm{\epsilon }\right)$ of a dielectric material, Boltzmann constant $k_B$ , the absolute temperature T, the number per unit volume (n) of certain charged particles, and the charge (q) carried by each of the particles, Which of the following expressions (s) for $\mathcal{l}$ is (are) dimensionally correct?

Some physical quantities are given in Column I and some possible SI units in which these quantities may be expressed are given in Column II. Match the physical quantities in Column I with the units in Column II and indicate your answer by darkening appropriate bubbles in the \(4 \times 4\) matrix given in the ORS.

Paragraph:
Consider the functions defined implicitly by the equation \(y^3-3 y+x=0\) on various intervals in the real line. If \(x \in(-\infty,-2) \cup(2, \infty)\), the equation implicitly defines a unique real valued differentiable function \(y=f(x)\). If \(x \in(-2,2)\), the equation implicitly defines a unique real valued differentiable function \(y=g(x)\), satisfying \(g(0)=0\).Question:
\(\int_{-1}^1 g^{\prime}(x) d x\) is equal to

A student is performing an experiment using a resonance column and a tuning fork of frequency \(244 s^{-1}\). He is told that the air in the tube has been replaced by another gas (assume that the column remains filled with the gas). If the minimum height at which resonance occurs is \((0.350 \pm 0.005) m\), the gas in the tube is (Useful information: \(\sqrt{167\text{ RT}}=640\text{ J}^{\frac{1}{2}}\text{ mol}^{-\frac{1}{2}} ;\) \(\sqrt{140\text{ RT}}=590\text{ J}^{\frac{1}{2}}\text{ mole}^{-\frac{1}{2}}\) . The molar masses M in grams are given in the options. Take the values of \(\sqrt{\frac{10}{\text M }}\) for each gas as given there.)

A cubical solid aluminum (bulk modulus \(=-\text V \frac{\text{dP}}{\text{dV}}=70\text{ GPa}\)) block has an edge length of 1 m on the surface of the earth. It is kept on the floor of a 5 km deep ocean. Taking the average density of water and the acceleration due to gravity to be \(10^3\text{ kg m} ^{-3}\) and \(10\text{ ms} ^{-2}\), respectively, the change in the edge length of the block in mm is _____________ .

Statement 1 For practical purposes, the earth is used as a reference at zero potential in electrical circuits.
and Statement 2 The electrical potential of a sphere of radius \(R\) with charge \(Q\) uniformly distributed on the surface is given by \(\frac{Q}{4 \pi \varepsilon_0 R}\).

Statement 1 An astronaut in an orbiting space station above the earth experiences weightlessness.
and Statement 2 An object moving around the earth under the influence of earth's gravitational force is in state of 'free fall'.

Consider \(L_1: 2 x+3 y+p-3=0 ; L_2: 2 x+3 y+p+3=0\) where \(p\) is a real number and \(C: x^2+y^2+6 x-10 y+30=0\).
Statement 1 If line \(L_1\) is a chord of circle \(C\), then line \(L_2\) is not always a diameter of circle \(C\).
Statement 2 If line \(L_1\) is a diameter of circle \(C\), then line \(L_2\) is not a chord of circle \(C\).
