The density of a solid ball is to be determined in an experiment. The diameter of the ball is measured with a screw gauge, whose pitch is \(0.5 \mathrm{~mm}\) and there are 50 divisions on the circular scale. The reading on the main scale is \(2.5 \mathrm{~mm}\) and that on the circular scale is 20 divisions. If the measured mass of the ball has a relative error of \(2 \%\), the relative percentage error in the density is

Paragraph:
Scientists are working hard to develop nuclear fusion reactor. Nuclei of heavy hydrogen, \({ }_1^2 \mathrm{H}\) known as deuteron and denoted by \(D\) can be thought of as a candidate for fusion reactor. The \(D\) - \(D\) reaction is \({ }_1^2 \mathrm{H}+{ }_1^2 \mathrm{H} \rightarrow{ }_2^3 \mathrm{He}+n+\) energy. In the core of fusion reactor. A gas of heavy hydrogen is fully ionized into deuteron nuclei and electrons. This collection of \({ }_1^4 \mathrm{H}\) nuclei and electrons is known as plasma. The nuclei move randomly in the reactor core and occasionally come close enough for nuclear fusion to take place. Usually, the temperatures in the reactor core are too high and no material wall can be used to confine the plasma. Special techniques are used which confine the plasma for a time \(t_0\) before the particles fly away from the core. If n is the density (number/volume) of deutrons, the product t \(_0\) is called Lawson number. In one of the criteria, \(a\) reactor is termed successful if Lawson number is greater than \(5 \times 10^{14} \mathrm{scm}^{-3}\).
It may be helpful to use the following : Boltzmann constant \(k=8.6 \times 10^{-5} \mathrm{eV} / \mathrm{K}\); \(\frac{e^2}{4 \pi \varepsilon_0}=1.44 \times 10^{-9} \mathrm{eVm}\)
Question:
Assume that two deuteron nuclei in the core of fusion reactor at temperature \(T\) are moving towards each other, each with kinetic energy \(1.5 \mathrm{kT}\), when the separation between them is large enough to neglect Coulomb potential energy. Also neglect any interaction from other particles in the core. The minimum temperature \(T\) required for them to reach a separation of \(4 \times 10^{-15} \mathrm{~m}\) is in the range

A circular insulated copper wire loop is twisted to form two loops of area $A$ and $2A$ as shown in the figure. At the point of crossing the wires remain electrically insulated from each other. The entire loop lies in the plane (of the paper). A uniform magnetic field $\overrightarrow{B}$ points into the plane of the paper. At $t=0$ , the loop starts rotating about the common diameter as axis with a constant angular velocity in the magnetic field. Which of the following options is/are correct?

A spherical soap bubble inside an air chamber at pressure \(P_0=10^5 \mathrm{~Pa}\) has a certain radius so that the excess pressure inside the bubble is \(\Delta P=144 \mathrm{~Pa}\). Now, the chamber pressure is reduced to \(8 P_0 / 27\) so that the bubble radius and its excess pressure change. In this process, all the temperatures remain unchanged. Assume air to be an ideal gas and the excess pressure \(\Delta P\) in both the cases to be much smaller than the chamber pressure. The new excess pressure \(\Delta P\) in \(\mathrm{Pa}\) is ________ .

The instantaneous voltages at three terminals marked $X, Y$ and $Z$ are given by
$V_X=V_0\sin \omega t$
$V_Y=V_0\sin \left(\omega t+\frac{2\pi }{3}\right)$ and
$V_Z=V_0\sin \left(\omega t+\frac{4\pi }{3}\right).$
An ideal voltmeter is configured to read rms value of the potential difference between its terminals. It is connected between points $X$ and $Y$ and then between $Y$ and $Z$ . The reading(s) of the voltmeter will be

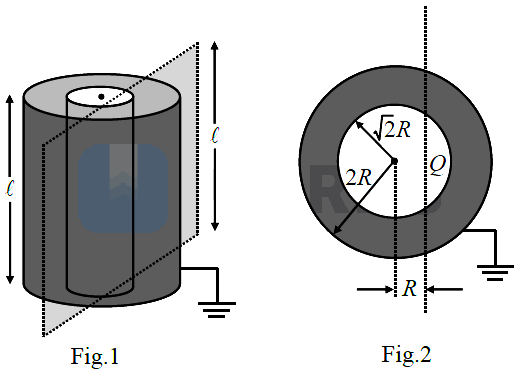

Two co-axial conducting cylinders of same length \(\ell\) with radii \(\sqrt{2} R\) and \(2 R\) are kept, as shown in Fig. 1. The charge on the inner cylinder is \(Q\) and the outer cylinder is grounded. The annular region between the cylinders is filled with a material of dielectric constant \(\kappa=5\). Consider an imaginary plane of the same length \(\ell\) at a distance R from the common axis of the cylinders. This plane is parallel to the axis of the cylinders. The cross-sectional view of this arrangement is shown in Fig. 2. Ignoring edge effects, the flux of the electric field through the plane is ( \(\epsilon_0\) is the permittivity of free space):

Column II shows five systems in which two objects are labelled as \(X\) and \(Y\). Also in each case a point \(P\) is shown. Column-I gives some statements about \(X\) and/or \(Y\). Match these statements to the appropriate system(s) from Column-II.

Let \(\mathbb{R}\) denote the set of all real numbers. Let \(z_1=1+2 i\) and \(z_2=3 i\) be two complex numbers, where \(i=\sqrt{-1}\).
Let \(S=\{(x, y) \in \mathbb{R} \times \mathbb{R}:\left|x+i y-z_1\right|=2\)\(\left|x+i y-z_2\right|\}\).
Then which of the following statements is (are) TRUE?

An incompressible liquid is kept in a container having a weightless piston with a hole. A capillary tube of inner radius $0.1\mathrm{mm}$ is dipped vertically into the liquid through the airtight piston hole, as shown in the figure. The air in the container is isothermally compressed from its original volume $V_0$to$\frac{100}{101}{V}_0$with the movable piston.Considering air as an ideal gas, the height $\left(h\right)$ of the liquid column in the capillary above the liquid level in $\mathrm{cm}$is _____.
[Given: Surface tension of the liquid is $0.075\mathrm{N}{\mathrm{m}}^{-1}$, atmospheric pressure is ${10}^5\mathrm{N}{\mathrm{m}}^{-2}$, acceleration due to gravity $\left(g\right)$ is $10\mathrm{m}{\mathrm{s}}^{-2}$, density of the liquid is ${10}^3\mathrm{kg}{\mathrm{m}}^{-3}$and contact angle of capillary surface with the liquid is zero]

A Hydrogen-like atom has atomic number $Z$. Photons emitted in the electronic transitions from level $n=4$ to level $n=3$ in these atoms are used to perform photoelectric effect experiment on a target metal. The maximum kinetic energy of the photoelectrons generated is $1.95 \mathrm{eV}$. If the photoelectric threshold wavelength for the target metal is $310 \mathrm{nm}$, the value of $Z$ is _____.
[Given $hc=1240 \mathrm{eV}-\mathrm{nm}$ and $Rhc=13.6 \mathrm{eV}$, where $R$ is the Rydberg constant, $h$ is the Planck’s constant and $c$ is the speed of light in vacuum]

\[
\text { Let } M \text { be a } 3 \times 3 \text { matrix satisfying }
\]

\[
M\left[\begin{array}{l}
0 \\
1 \\
0
\end{array}\right]=\left[\begin{array}{c}
-1 \\
2 \\
3
\end{array}\right], M\left[\begin{array}{c}
1 \\
-1 \\
0
\end{array}\right]=\left[\begin{array}{c}
1 \\
1 \\
-1
\end{array}\right] \text { and } M\left[\begin{array}{l}
1 \\
1 \\
1
\end{array}\right]=\left[\begin{array}{c}
0 \\
0 \\
12
\end{array}\right]
\]
Then, the sum of the diagonal entries of \(M\) is

When light of a given wavelength is incident on a metallic surface, the minimum potential needed to stop the emitted photoelectrons is $6.0 \mathrm{V}$. This potential drops to $0.6 \mathrm{V}$ if another source with wavelength four times that of the first one and intensity half of the first one is used. What are the wavelength of the first source and the work function of the metal, respectively? [Take$\frac{hc}{e}=1.24\times {10}^{-6} \mathrm{J} {\mathrm{mC}}^{-1}$ .]

Let \(f\) and \(g\) be real valued functions defined on interval \((-1,1)\) such that \(g^{\prime \prime}(x)\) is continuous, \(g(0) \neq 0, g^{\prime}(0)=0, g^{\prime \prime}(0) \neq 0\) and \(f(x)=g(x) \sin x\).
Statement \(1 \lim _{x \rightarrow 0}[g(x) \cos x-g(0) \operatorname{cosec} x]=f^{\prime \prime}(0)\).
Statement \(2 f^{\prime}(0)=g(0)\).
