Paragraph :

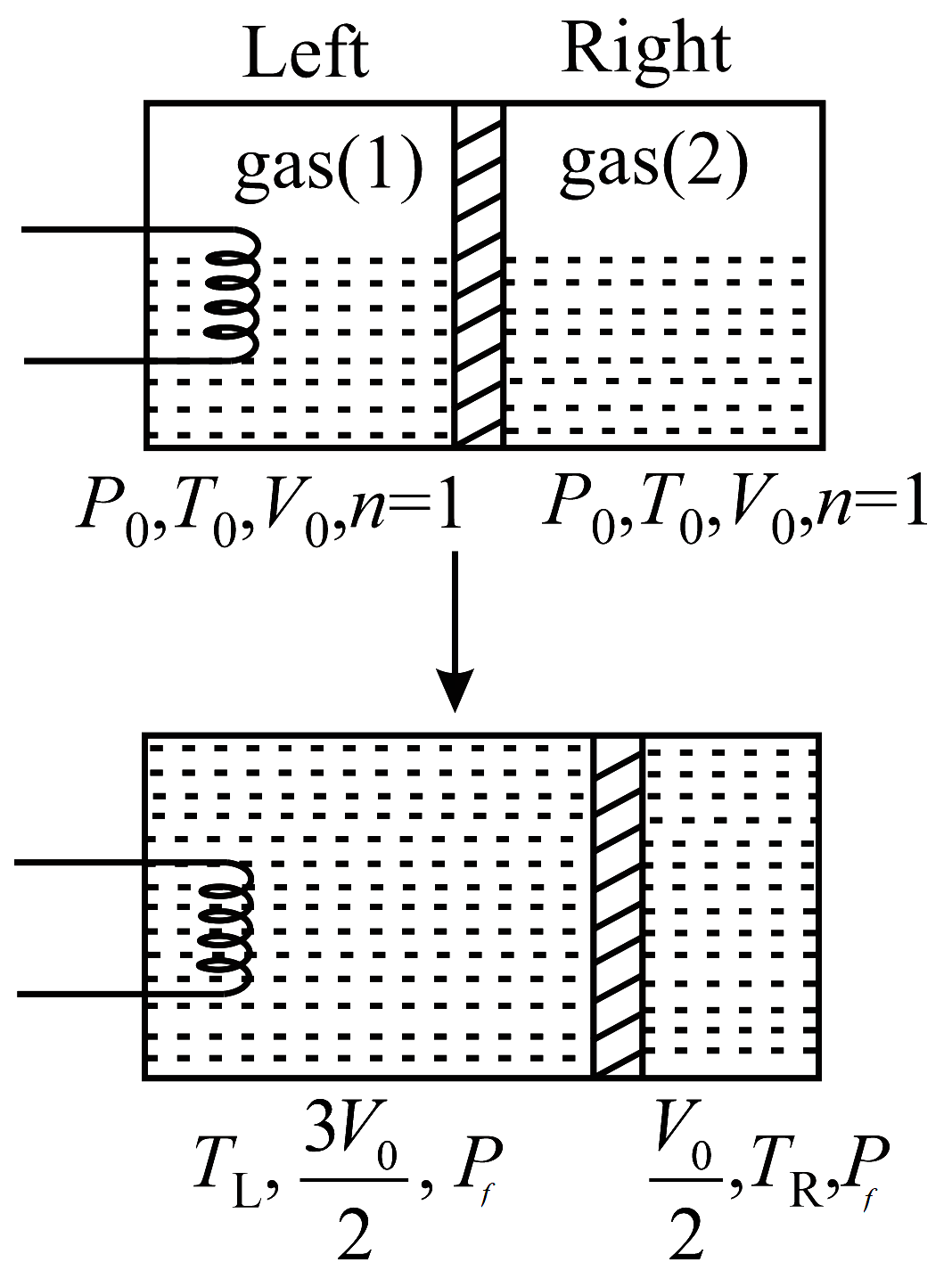

A thermally insulating cylinder has a thermally insulating and frictionless movable partition in the middle, as shown in the figure below. On each side of the partition, there is one mole of an ideal gas, with specific heat at constant volume, \(C_{V}=2 R\). Here, \(R\) is the gas constant. Initially, each side has a volume \(V_{0}\) and temperature \(T_{0}\). The left side has an electric heater, which is turned on at very low power to transfer heat \(Q\) to the gas on the left side. As a result the partition moves slowly towards the right reducing the right side volume to \(V_{0} / 2\). Consequently, the gas temperatures on the left and the right sides become \(T_{L}\) and \(T_{R}\), respectively. Ignore the changes in the temperatures of the cylinder, heater and the partition.

Question :
The value of $\frac{T_R}{T_0}$ is:

One end of a taut string of length 3m along the x axis is fixed at x = 0. The speed of the waves in the string is $100\mathrm{ }\mathrm{m}{\mathrm{s}}^{-1}$ . The other end of the string is vibrating in the y direction so that stationary waves are set up in the string. The possible waveform(s) of these stationary waves is (are)

The figure shows the \(p-V\) plot of an ideal gas taken through a cycle \(A B C D A\). The part \(A B C\) is a semi-circle and \(C D A\) is half of an ellipse. Then,

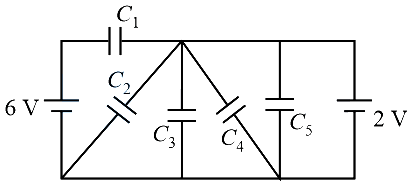

In the following circuit $C_1=12 \mathrm{\mu F},C_2=C_3=4 \mathrm{\mu F}$ and $C_4=C_5=2 \mathrm{\mu F}$. The charge stored in $C_3$ is $\mathrm{\mu C}.$

Paragraph:
When a particle is restricted to move along \(x\)-axis between \(x=0\) and \(x=a\), where \(a\) is of nanometer dimension, its energy can take only certain specific values. The allowed energies of the particle moving in such a restricted region, correspond to the formation of standing waves with nodes at its ends \(x=0\) and \(x=a\). The wavelength of this standing wave is related to the liner momentum \(p\) of the particle according to the de Broglie relation. The energy of the particle of mass \(m\) is related to its linear momentum as \(E=\frac{p^2}{2 m}\). Thus, the energy of the particle can be denoted by a quantum number \(n\) taking values \(1,2,3, \ldots(n=1\), called the ground state) corresponding to the number of loops in the standing wave.
Use the model described above to answer the following three questions for a particle moving in the line \(x=0\) to \(x=a\) [Take \(h=6.6 \times 10^{-34} \mathrm{Js}\) and \(e=1.6 \times 10^{-19} \mathrm{C}\) ]
Question:
The speed of the particle that can take discrete values is proportional to

A projectile is thrown from a point \(\mathrm{O}\) on the ground at an angle \(45^{\circ}\) from the vertical and with a speed \(5 \sqrt{2} \mathrm{~m} / \mathrm{s}\). The projectile at the highest point of its trajectory splits into two equal parts. One part falls vertically down to the ground, \(0.5 \mathrm{~s}\) after the splitting. The other part, \(t\) seconds after the splitting, falls to the ground at a distance \(x\) meters from the point O. The acceleration due to gravity \(g=10 \mathrm{~m} / \mathrm{s}^{2}\).
The value of $t$ is _________.

A pulse of light of duration 100 ns is absorbed completely by a small object initially at rest. Power of the pulse is 30 mW and the speed of light is 3 ×10⁸ ms^-1. The final momentum of the object is

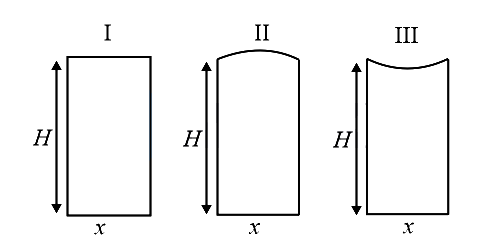

Three glass cylinders of equal height $\mathrm{H}=30\mathrm{}\mathrm{c}\mathrm{m}$ and same refractive index $\mathrm{n}=1.5$ are placed on a horizontal surface shown in figure. Cylinder $\mathrm{I}$ has a flat top, cylinder $\mathrm{I}\mathrm{I}$ has a convex top and cylinder $\mathrm{I}\mathrm{I}\mathrm{I}$ has a concave top. The radii of curvature of the two curved tops are same $\left(\mathrm{R}=3\mathrm{m}\right).$ If ${\mathrm{H}}_1,{\mathrm{H}}_2$ and ${\mathrm{H}}_3$ are the apparent depths of a point $\mathrm{X}$ on the bottom of the three cylinders, respectively, the correct statement(s) is/are

A trinitro compound, $1,3,5$-tris-($4$-nitrophenyl) benzene, on complete reaction with an excess of $\mathrm{Sn}/\mathrm{HCl}$ gives a major product, which on treatment with an excess of ${\mathrm{NaNO}}_2/\mathrm{HCl}$ at $0°\mathrm{C}$ provides $\mathbf{P}$ as the product. $\mathbf{P}$, upon treatment with excess of ${\mathrm{H}}_2\mathrm{O}$ at room temperature, gives the product $\mathbf{Q}$. Bromination of $\mathbf{Q}$ in aqueous medium furnishes the product $\mathbf{R}$. The compound $\mathbf{P}$ upon treatment with an excess of phenol under basic conditions gives the product $\mathbf{S}$. The molar mass difference between compounds $\mathbf{Q}$ and $\mathbf{R}$ is $474 \mathrm{g} {\mathrm{mol}}^{-1}$ and between compounds $\mathbf{P}$ and $\mathbf{S}$ is $172.5 \mathrm{g} {\mathrm{mol}}^{-1}$.
The total number of carbon atoms and heteroatoms present in one molecule of \(S\) is
[Use: Molar mass (in \(\text{gmol} ^{-1}\) ): \(\text H =1,\text C =12,\text N=14,\text O =16,\) \(\text{Br} =80, \text{Cl} =35.5\) Atoms other than C and H are considered as heteroatoms]

One of the products formed from the reaction of permanganate ion with iodide ion in neutral aqueous medium is

If the straight lines \(\frac{x-1}{2}=\frac{y+1}{k}=\frac{z}{2}\) and \(\frac{x+1}{5}=\frac{y+1}{2}=\frac{z}{k}\) are coplanar, then the plane (s) containing these two lines is (are)

Paragraph:
A fair die is tossed repeatedly until a six is obtained. Let \(X\) denotes the number of tosses required.Question:
The conditional probability that \(X \geq 6\) given \(X>3\) equals

The slope of the tangent to the curve ${\left(y-x^5\right)}^2=\text{x}{\left(1+{\text{x}}^2\right)}^2$ at the point (1, 3) is ________.
