JEE Advanced · Physics · 24. Ray Optics
Most materials have the refractive index, \(n>1\). So, when a light ray from air enters a naturally occurring material, then by Snell's
law, \(\frac{\sin \theta_{1}}{\sin \theta_{2}}=\frac{n_{2}}{n_{1}}\), it is understood that the refracted ray bends towards the normal. But it never emerges on the same side of the normal as the incident ray. According to electromagnetism, the refractive index of the medium is given by the relation, \(\mathrm{n}=c / v=\pm \sqrt{\varepsilon_{r} \mu_{r}}\), where \(c\) is the speed of electromagnetic waves in vacuum, \(v\) its speed in the medium, \(\varepsilon_{r}\) and \(\mu_{r}\) are the relative permittivity and permeability of the medium respectively. In normal materials, both \(\varepsilon_{r}\) and \(\mu_{r}\), are positive, implying positive \(n\) for the medium. When both \(\varepsilon_{r}\) and \(\mu_{r}\) are negative, one must choose the negative root of \(n\). Such negative refractive index materials can now be artificially prepared and are called metamaterials. They exhibit significantly different optical behavior, without violating any physical laws. Since \(n\) is negative, it results in a change in the direction of propagation of the refracted light. However, similar to normal materials, the frequency of light remains unchanged upon refraction even in meta-materials.
Question : Choose the correct statement.
- A The speed of light in the meta-material is \(v=c|n|\)
- B The speed of light in the meta-material is \(v=\frac{c}{|n|}\)
- C The speed of light in the meta-material is \(v=c\).
- D The wavelength of the light in the meta-material \(\left(\lambda_{m}\right)\) is given by \(\lambda_{m}=\lambda_{\text {air }}|n|\), where \(\lambda_{\text {air }}\) is wavelength of the light in air.
Answer & Solution
Correct Answer
(B) The speed of light in the meta-material is \(v=\frac{c}{|n|}\)
Step-by-step Solution
Detailed explanation
Speed of light in a medium, \(V=\frac{C}{n}\) \(n\) for meta-material \(=|n|\)
\(\therefore \quad\) Speed of light in the meta-material \(V=\frac{C}{|n|}\).
\(\therefore \quad\) Speed of light in the meta-material \(V=\frac{C}{|n|}\).
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics
- Students I, II and III perform an experiment for measuring the acceleration due to gravity \((g)\) using a simple pendulum. They use different lengths of the pendulum and/or record time for different number of oscillations. The observations are shown in the table.
Least count for length \(=0.1 \mathrm{~cm}\)
Least count for time \(=0.1 \mathrm{~s}\)
If \(E_{\mathrm{I}}, E_{\mathrm{II}}\) and \(E_{\mathrm{III}}\) are the percentage errors in \(g\), i.e., \(\left(\frac{\Delta g}{g} \times 100\right)\) for students I, II and III, respectively.JEE Advanced 2008 Medium - For a radioactive material, its activity and rate of change of its activity are defined as and , where is the number of nuclei at time . Two radioactive sources (mean life ) and (mean life ) have the same activity at . Their rates of change of activities at are and , respectively. If , then the value of isJEE Advanced 2015 Medium
- For the resistance network shown in the figure, choose the correct option(s)
JEE Advanced 2012 Medium - A soft plastic bottle, filled with water of density \(1 \mathrm{gm} / \mathrm{cc}\), carries an inverted glass test-tube with some air (ideal gas) trapped as shown in the figure. The test-tube has a mass of \(5 \mathrm{gm}\), and it is made of a thick glass of density \(2.5 \mathrm{gm} / \mathrm{cc}\). Initially the bottle is sealed at atmospheric pressure \(p_{0}=10^{5} \mathrm{~Pa}\) so that the volume of the trapped air is \(v_{0}=3.3 \mathrm{cc}\). When the bottle is squeezed from outside at constant temperature, the pressure inside rises and the volume of the trapped air reduces. It is found that the test tube begins to sink at pressure \(p_{0}+\Delta p\) without changing its orientation. At this pressure, the volume of the trapped air is \(v_{0}-\Delta v\).
Let \(\Delta v=X\) cc and \(\Delta p=Y \times 10^{3} \mathrm{~Pa}\).

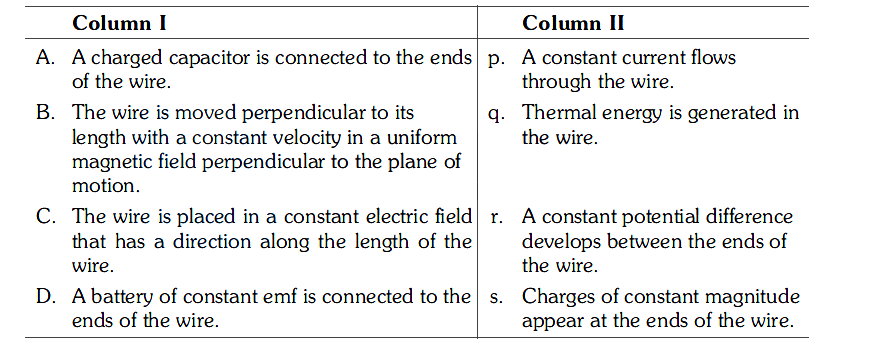

The value of is _____.JEE Advanced 2021 Hard - Column I gives certain situations in which a straight metallic wire of resistance \(R\) is used and Column II gives some resulting effects. Match the statements in Column I with the statements in Column II and indicate your answer by darkening appropriate bubbles in the \(4 \times 4\) matrix given in the ORS.
