Electrons with de-Broglie wavelength \(\lambda\) fall on the target in an X-ray tube. The cut-off wavelength of the emitted X-rays is

Paragraph :
\(P_{14-16}\) : Paragraph for Questions Nos. 14 to 16 A fixed thermally conducting cylinder has a radius \(R\) and height \(L_0\). The cylinder is open at its bottom and has a small hole at its top. A piston of mass \(M\) is held at a distance \(L\) from the top surface as shown in the figure. The atmospheric pressure is \(p_0\).

Question :
The piston is taken completely out of the cylinder. The hole at the top is sealed. A water tank is brought below the cylinder and put in a position so that the water surface in the tank is at the same level as the top of the cylinder as shown in the figure. The density of the water is \(\rho\). In equilibrium, the height \(H\) of the water column in the cylinder satisfies

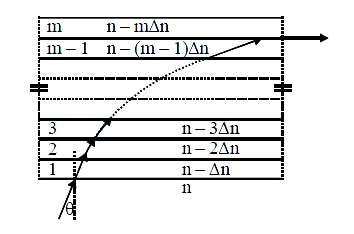

A monochromatic light is travelling in a medium of refractive index $n=1.6$ . It enters a stack of glass layers from the bottom side at an angle $\theta =30°.$ The interfaces of the glass layers are parallel to each other. The refractive indices of different glass layers are monotonically decreasing as $n_m=n–m\mathrm{\Delta }n$ where $n_m$ is the refractive index of the $m^{th}$ slab and $\mathrm{\Delta }n=0.1$ (see the figure). The ray is refracted out parallel to the interface between the ${\left(m–1\right)}^{th}$ and $m^{th}$ slabs from the right side of the stack. What is the value of m?

The center of a disk of radius \(r\) and mass \(m\) is attached to a spring of spring constant \(k\), inside a ring of radius \(R>r\) as shown in the figure. The other end of the spring is attached on the periphery of the ring. Both the ring and the disk are in the same vertical plane. The disk can only roll along the inside periphery of the ring, without slipping. The spring can only be stretched or compressed along the periphery of the ring, following the Hooke's law. In equilibrium, the disk is at the bottom of the ring. Assuming small displacement of the disc, the time period of oscillation of center of mass of the disk is written as \(T=\frac{2 \pi}{\omega}\). The correct expression for \(\omega\) is ( \(g\) is the acceleration due to gravity):

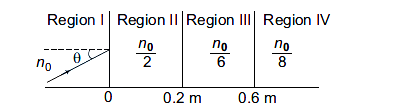

A light beam is travelling from Region I to Region IV (refer figure). The refractive index in Region I, II, III and IV are \(n_0, \frac{n_0}{2}, \frac{n_0}{6}\) and \(\frac{n_0}{8}\), respectively. The angle of incidence \(\theta\) for which the beam just misses entering Region IV is

A circular disc with a groove along its diameter is placed horizontally. A block of mass \(1 \mathrm{~kg}\) is placed as shown. The coefficient of friction between the block and all surfaces of groove in contact is \(\mu=2 / 5\). The disc has an acceleration of \(25 \mathrm{~m} / \mathrm{s}^2\). Find the acceleration of the block with respect to disc.

A uniform magnetic field B exists in the region between $x=0$ and $x=\frac{3R}{2}$ (region 2 in the figure) pointing normally into the plane of the paper. A particle with charge $+Q$ and momentum p directed along $x$ -axis enters region 2 from region 1 at point $P_1\left(y=-R\right).$ Which of the following option(s) is/are correct?

The value of \(b\) for which the equations \(x^2+b x-1=0, x^2+x+b=0\) have one root in common is

Let $E, F$ and $G$ be three events having probabilities $P\left(E\right)=\frac{1}{8},P\left(F\right)=\frac{1}{6}$ and $P\left(G\right)=\frac{1}{4},$ and let $P(E\cap F\cap G)=\frac{1}{10}$
For any event $H$, if $H^c$ denotes its complement, then which of the following statements is (are) TRUE ?

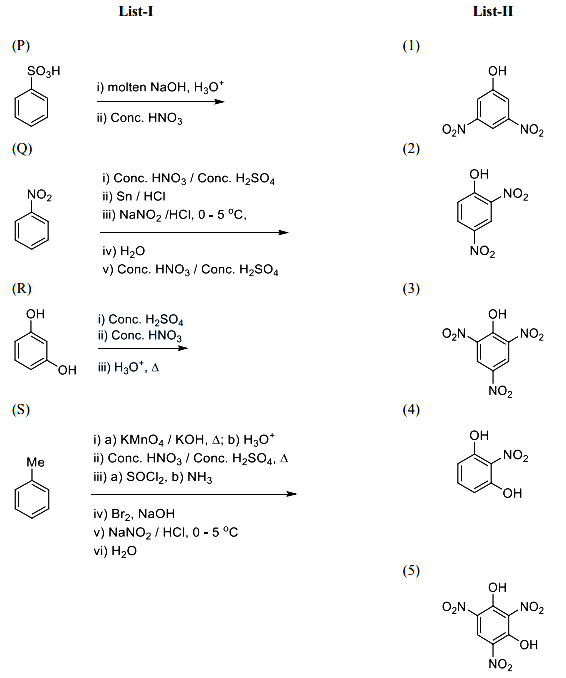

List-I contains various reaction sequences and List-II contains different phenolic compounds.
Match each entry in List-I with the appropriate entry in List-II and choose the correct option.

The $1^{\mathrm{st}}$, $2^{\mathrm{nd}}$ and the $3^{\mathrm{rd}}$ ionization enthalpies, ${\mathrm{I}}_1, {\mathrm{I}}_2$ and ${\mathrm{I}}_3$, of four atoms with atomic numbers $\mathrm{n}, \mathrm{n}+1, \mathrm{n}+2,$ and $\mathrm{n}+3,$ where $\mathrm{n}<10,$ are tabulated below. What is the value of $\mathrm{n}$?

Atomic number	Ionization Enthalpy (kJ/mol)
	${\mathrm{I}}_1$	${\mathrm{I}}_2$	${\mathrm{I}}_3$
$\mathrm{n}$	$1681$	$3374$	$6050$
$\mathrm{n}+1$	$2081$	$3952$	$6122$
$\mathrm{n}+2$	$496$	$4562$	$6910$
$\mathrm{n}+3$	$738$	$1451$	$7733$

The total number of basic groups in the following form of lysine is

Statement \(1 \mathrm{In}\) a Meter Bridge experiment, null point for an unknown resistance is measured. Now, the unknown resistance is put inside an enclosure maintained at a higher temperature. The null point can be obtained at the same point as before by decreasing the value of the standard resistance.
and Statement 2 Resistance of a metal increase with increase in temperature.
