JEE Advanced · Mathematics · 12. Circle
Two parallel chords of a circle of radius 2 are at a distance \(\sqrt{3}+1\) apart. If the chords subtend at the centre, angles of \(\frac{\pi}{k}\) and \(\frac{2 \pi}{k}\), where \(k>0\), then the value of \([k]\) is
[Note : \([k]\) denotes the largest integer less than or equal to \(k\) ]
- A 3
- B 5
- C 7
- D 9
Answer & Solution
Correct Answer
(A) 3
Step-by-step Solution
Detailed explanation

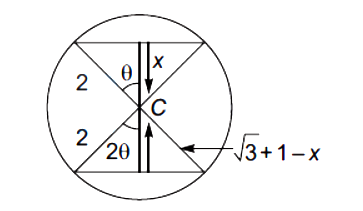

Let \(\theta=\frac{\pi}{2 k}\)

\[
\begin{aligned}
& \cos \theta=\frac{x}{2} \\
& \Rightarrow \quad \cos 2 \theta=\frac{\sqrt{3}+1-x}{2} \\
& \Rightarrow 2 \cos ^2 \theta-1=\frac{\sqrt{3}+1-x}{2} \\
& \Rightarrow 2\left(\frac{x^2}{4}\right)-1=\frac{\sqrt{3}+1-x}{2} \\
& \Rightarrow \quad x^2+x-3-\sqrt{3}=0 \\
& \Rightarrow \quad x=\frac{-1 \pm \sqrt{1+12+4 \sqrt{3}}}{2} \\
& =\frac{-1 \pm \sqrt{13+4 \sqrt{3}}}{2} \\
& =\frac{-1+2 \sqrt{3}+1}{2}=\sqrt{3} \\
& \therefore \quad \cos \theta=\frac{\sqrt{3}}{2} \Rightarrow \theta=\frac{\pi}{6} \\
& \therefore \quad \text { Required angle }=\frac{\pi}{k}=2 \theta=\frac{\pi}{3} \\
& \Rightarrow \quad k=3 \\
&
\end{aligned}
\]

\[
\begin{aligned}
& \cos \theta=\frac{x}{2} \\
& \Rightarrow \quad \cos 2 \theta=\frac{\sqrt{3}+1-x}{2} \\
& \Rightarrow 2 \cos ^2 \theta-1=\frac{\sqrt{3}+1-x}{2} \\
& \Rightarrow 2\left(\frac{x^2}{4}\right)-1=\frac{\sqrt{3}+1-x}{2} \\
& \Rightarrow \quad x^2+x-3-\sqrt{3}=0 \\
& \Rightarrow \quad x=\frac{-1 \pm \sqrt{1+12+4 \sqrt{3}}}{2} \\
& =\frac{-1 \pm \sqrt{13+4 \sqrt{3}}}{2} \\
& =\frac{-1+2 \sqrt{3}+1}{2}=\sqrt{3} \\
& \therefore \quad \cos \theta=\frac{\sqrt{3}}{2} \Rightarrow \theta=\frac{\pi}{6} \\
& \therefore \quad \text { Required angle }=\frac{\pi}{k}=2 \theta=\frac{\pi}{3} \\
& \Rightarrow \quad k=3 \\
&
\end{aligned}
\]
