GUJCET · Physics · Wave Optics
Two slits are made \(\mathbf{1 0 ~ m m}\) apart and the screen is placed 1.5 m away. What is the fringe separation when wavelength of 7000 Å is used ?
- A \(105 \mu \mathrm{~m}\)
- B \(1.05 \mu \mathrm{~m}\)
- C \(10.5 \mu \mathrm{~m}\)
- D \(0.105 \mu \mathrm{~m}\)
Answer & Solution
Correct Answer
(A) \(105 \mu \mathrm{~m}\)
Step-by-step Solution
Detailed explanation
(A) \(105 \mu \mathrm{~m}\)
Fringe width
\(
\begin{aligned}
& \beta=\frac{\lambda \mathrm{D}}{d} \\
\therefore & \beta=\frac{7 \times 10^{-7} \times 1.5}{10 \times 10^{-3}} \\
\therefore & \beta=10.5 \times 10^{-5} \\
\therefore & \beta=105 \times 10^{-6} \mathrm{~m} \\
\therefore & \beta=105 \mu \mathrm{~m}
\end{aligned}
\)
Fringe width
\(
\begin{aligned}
& \beta=\frac{\lambda \mathrm{D}}{d} \\
\therefore & \beta=\frac{7 \times 10^{-7} \times 1.5}{10 \times 10^{-3}} \\
\therefore & \beta=10.5 \times 10^{-5} \\
\therefore & \beta=105 \times 10^{-6} \mathrm{~m} \\
\therefore & \beta=105 \mu \mathrm{~m}
\end{aligned}
\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from Physics

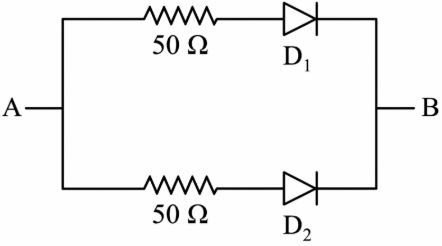

- For the circuit shown in the figure, the equivalent resistance between point \(A \& B\) for two cases (i) \(V_A>V_B\) (ii) \(V_B>V_A\), respectively is __________ \(\Omega\) and __________ \(\Omega\) respectively.
