AP EAMCET · PHYSICS · Alternating Current
The primary of a transformer has 100 turns and operates at \(100 \mathrm{~V}-200 \mathrm{~W}\). The number of turns in the secondary, if the output voltage is \(2000 \mathrm{~V}\), then
- A 2000
- B 200
- C 100
- D 500
Answer & Solution
Correct Answer
(A) 2000
Step-by-step Solution
Detailed explanation
For a transformer, it is given that, \(N_P=100\), \(V_P=100 \mathrm{~V}, V_S=2000 \mathrm{~V}\) We know that, \(\begin{aligned} & \frac{N_S}{N_P}=\frac{V_S}{V_P} \\ \Rightarrow \quad & N_S=\frac{V_S N_P}{V_P}=\frac{2000 \times 100}{100}=2000 \end{aligned}\)
See the Complete Solution
Get step-by-step explanations for this and 2.5 Lakh+ more JEE, NEET & CET questions.
- Unlock all solutions
- Practice the full chapter
- Track accuracy across PYQs
4.8 rated on Google Play · 14,000+ reviews
More questions from PHYSICS
- The two principal thrusts in physics areAP EAMCET 2022 Easy

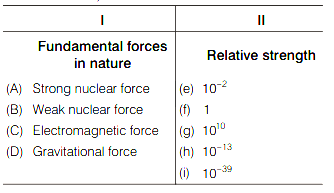

- Match the following (Take the relative strength of the strongest fundamental forces in nature as one)
